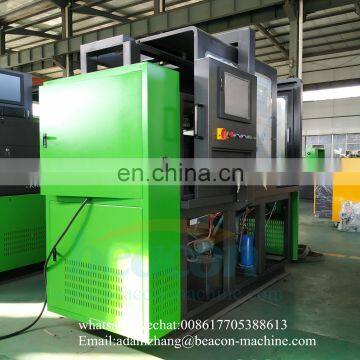

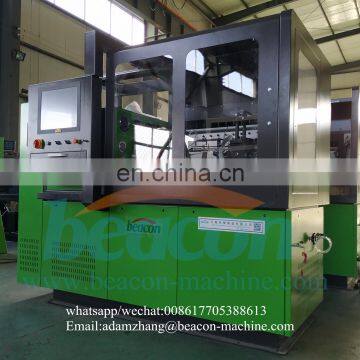

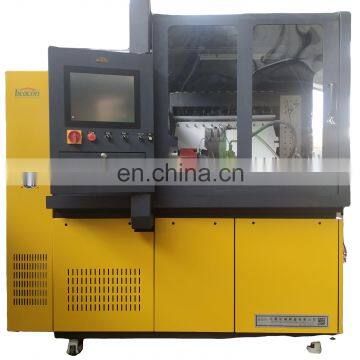

BCS815A Electrical ALL Function Diesel Injection Pump Common Rail Injector Pump EUI/EUP Cam Box HEUI Test Bench
US$ 6,400 - 9,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BEACON
Place of Origin:
Shandong, China
Model Number:
cr815s CR815A
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or any sea port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EPS208 Common Rail Diesel Fuel Injector Test Bench EPS205 EPS200 cr Injector Tester Piezo Injector Test BenchUS$ 3,000 - 3,000MOQ: 1 Set -
EPS200 EPS205 NTS205 New Common Rail Injector Test Bench EPS208 Diesel Fuel Injector TesterUS$ 3,000 - 3,000MOQ: 1 Set
-
EPS208 Common Rail Diesel Fuel Injector Test Bench Common Rail Injector Coding QR IMA ISA IQA ISX Encoding Test BenchUS$ 3,000 - 3,000MOQ: 1 Set
-
CR926 Diesel Fuel Common Rail Injector Pump Test Eui Eup Heui Injector Coding HP0 VP37 VP44 Pump Test BenchUS$ 15,000 - 18,000MOQ: 1 Set
-
EPS208 Diesel Fuel Common Rail Injector Test BenchUS$ 2,000 - 3,000MOQ: 1 Set
Brand Name
BEACON
Place of Origin
Shandong, China
Model Number
cr815s CR815A
Power
Electronic
BEACON diesel fuel mechanical and common rail injection pump test bench CR815S CR815A with vp37 vp44 red4 function
This CR815S mainly test for common rail pump and injector, and diesel fuel injection pump(Mechanical Pumps)
Product Description
Main function
Common Rail System Testing:
1.Test all the manufacturers of common rail injector
2.Test all the manufacturers of piezo injector
3.Test all the manufacturers of common rail pump
4.Test DENSO HP0 pump
5.Test CAT common rail (HEUI) injector
6.Test CAT common rail (HEUI) engine oil pump
7.Test CAT 320D common rail pump (the world’s first successful development
8.Test EUI/EUP (can adjust the lift but not to change the camshaft)
9.Test VP44 VE VP37 pump
10.Test RED3 RED4 TICS ZEXEL electronic control pump
11.Drive circuit board(solenold valve electric parameters to enhance the voltage current,time,pull in voltage ,current,time,keep voltage ,current,time,according to the setting of parameters of production factory)
12.Accept the speed sensor ,encode signal,high speed solenoid valve drive signal.Accept the speed sensor ,encoder signal,output 2 PWM drive signal, 2 way solenoid valve drive signal,1 high speed solenoid valve drive signal.Driving signal waveform can be programed.
Diesel Fuel Injection Pump Testing Function:
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjust the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump.
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking the sealing of injection pump body.
10. Install tube of auto-sucking oil supply can check on oil supply pump (including VE Pump)
11. Checking the travel of stroke (Opitonal)
12. Oil lubricate (Optional)
13. Forced cooling system (Optional）
EUI / EUP Testing Function
HEUI Testing Function.
FUNCTION CHARACTERISTIC
1.Motor power:7.5KW, 11KW, 15KW, 18.5KW, 22KW
2.Industrial PC with touch screen
3.Compressor cooling
4.Oil tank(including heating,refrigeration,liquid level detection,temperature detection)
5.Diesel tank(including heating,refrigeration,liquid level detection,temperature detection)
6.Flow meter(German ZDM) detecting the fuel injection flow rate
7.Flow meter(German ZDM) detection of common rail pump
8.Flow meter(German KRACHT) to detect oil flow
9.Flow meter(German KRACHT) detection of diesel oil return flow
10.2sets of B-OSCH common rail +DRV
11.Oil tank temperature sensor
12.Diesel fuel tank temperature sensor
13.Diesel supply temperature sensor
14.Diesel return temperature sensor
15.Oil pressure sensor
16.Diesel supply pressure sensor
17.Diesel return pressure sensor
18.Diesel pump internal pressure sensor
19.Oil pressure closed loop control module
20.The device is convenient to move and position the roller
21. Adjustable cylinders numbers: 12
22. RPM:0-4000
23. Support RPM Pre-set.
24. Temperature control system.
25. Positive Pressure System.
26. Negative Pressure System.
27. Air Supply
28. DC Power supply.
29. IBCernal Pressure of VE Pump
30. Oil return of VE Pump
31. Travel of Tooth Bar (Optional)
32. Oil Lubricate. (Optional)
33. Capability with Pump Type: All in-line and Rotary Pump .
Highlight function:
BOSCH IQA CODING --- injector coding |
Remote assistance-- engineer help you solve any question |
||||||
EUI EUP injector test-- with CAMBOX and adaptor |
HEUI ----- middle pressure caterpillar injector test |
||||||
HEUI caterpillar injector test:
Details
Packing & Delivery
Certifications
Company Profile
JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers.
Our main product include:
common rail injector/pump test bench ,
common rail injector/pump tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,
Denso ECD-V3 ,V4, V5 pump tester ,
PT Cummings pump and injector tester ,
common rail tools
High quality spare parts: Injector/valve/nozzle/head rotor/plunger....
Welcome to visit our factory and cooperate in the future.
