Home > Instruments & Meters > Test Instrument > Test Machine > Multifunction BEACON Diesel Common Rail Injector Coding HEUI EUI EUP Injection Pump Test Bench CR918S
Multifunction BEACON Diesel Common Rail Injector Coding HEUI EUI EUP Injection Pump Test Bench CR918S
US$ 19,000 - 21,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BEACON
Place of Origin:
Shandong, China
Model Number:
CR918S
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port or any other sea port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CR305 Common Rail Injector Test BenchUS$ 3,000 - 4,000MOQ: 1 Set -
BCS815S CR815 Diesel Common Rail Injector Pump Test Bench With EUI EUP HEUI Function BCS815AUS$ 5,000 - 8,000MOQ: 1 Set
-
Auto Diagnostic Electronic Beijing Newest System Common Rail System Whole SetUS$ 800 - 1,000MOQ: 1 Set
-
SCR816 Common Rail Diesel Fuel Injector Pump Test Equipment Urea Pump Test BenchUS$ 2,000 - 2,500MOQ: 1 Set
-
CR917S CR918S Common Rail Diesel Fuel Injection Pump Test Bench Diesel Injector IMA IQA ISA QR Injector Coding Test BenchUS$ 9,000 - 12,000MOQ: 1 Set
Brand Name
BEACON
Place of Origin
Shandong, China
Model Number
CR918S
Power
Electronic
Product Description

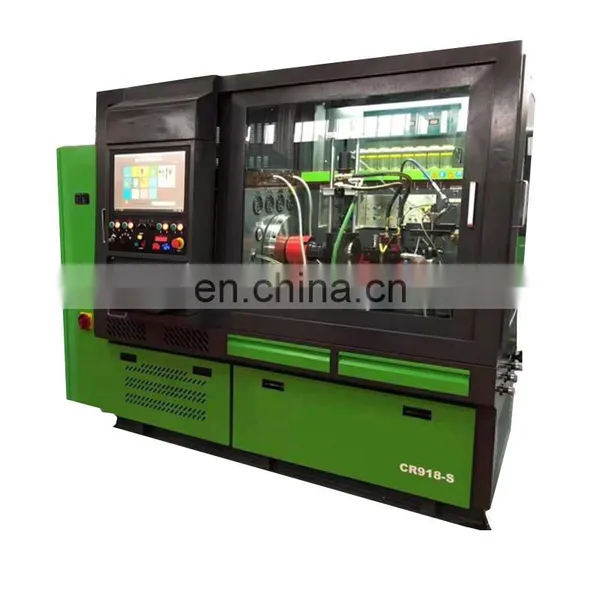

Common rail injector coding HEUI EUI EUP injection pump test bench CR918S
DESCRIPTION:
6 injectors can be triggered at the same time ,and 6 injectors correction codes can be generated simultaneously!
Accurate response time
Generate oil volume correction code
Test PT pump
Test PT injector
Test HPI Q60 X15
Test Cummins HPI Actuator
Accurate response time
Generate oil volume correction code
Test PT pump
Test PT injector
Test HPI Q60 X15
Test Cummins HPI Actuator
With high quality EUI EUP CAMBOX and HEUI cat injector adaptor
FEATURES:
Bosch 6,7,8,9,10-digit IMA encoding generation
Bosch piezo injector IMA,ISA encoding generation
DENSO QR oil volume correction code generation
Delphi C2i,C3i encoding generation
Siemens (VDO) ICC code generation
►Test common rail injector
►Test common rail pump
► Test EUI/EUP
►Test the HEUI injector
►Test HEUI actuation pump
►The highest rail pressure is 2600 bar
►Drive motor 22KW
►Injection drive and system voltage monitor
► Common rail with filter function
► Dual DRV configuration
►High pressure filter plugging reminder function
► Waste tank overflow warning
► Oil tank and diesel tank strong integrated air conditioning system
Delphi double plus E 3 function and newest common rail test system:
TECHNICAL PARAMETERS:
Main power |
380V/220V |
||||||
Phase |
1/3 |
||||||
Frequency |
50/60hz |
||||||
Current |
45A(MAX) |
||||||
Main Motor |
22kw |
||||||
Main motor rotation |
0-4000 RPM/MIN |
||||||
Oil motor HP/FLOW |
0.19KW/13L/MIN |
||||||
Diesel motor HP/FLOW |
0.19KW/13L/MIN |
||||||
Control circuit voltage |
DC12V/24V 350W |
||||||
ECU internal voltage |
0-200V DC(MAX) |
||||||
Oil tank volume |
30L |
||||||
Diesel Tank volume |
52L |
||||||
Tempreature control |
Heating/Forced cooling |
||||||
Max rail pressure |
180Mpa 240Mpa(Optional) |
||||||
EUI EUP injector accessories list:
Accessories
Related Products
Packing & Delivery
Certifications
Our Company
JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump
test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical
support, our products are the common choice of many overseas buyers.
Our main product include:
common rail injector/pump test bench ,
common rail injector/pump tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,
Denso ECD-V3 ,V4, V5 pump tester ,
PT Cummings pump and injector tester ,
common rail tools
High quality spare parts: Injector/valve/nozzle/head rotor/plunger....
Welcome to visit our factory and cooperate in the future.
