Home > Instruments & Meters > Test Instrument > Test Machine > CR915S HEUI EUI EUP COMMON RAIL DIESEL FUEL INJECTION PUMP TEST BENCH
CR915S HEUI EUI EUP COMMON RAIL DIESEL FUEL INJECTION PUMP TEST BENCH
US$ 7,500 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BEACON
Place of Origin:
Shandong, China
Model Number:
CR915S
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port or any other port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CR1000 Common Rail Injector/piezo Injector Tester Injector SimulatorUS$ 120 - 150MOQ: 1 Set -
BEACON MACHINE CR825 Common Rail Diesel Injection Pump Test BenchUS$ 7,000 - 10,000MOQ: 1 Set
-
BEACON DIESEL High Quality CR825 Test Bench Common Rail Cr825US$ 7,000 - 10,000MOQ: 1 Set
-
BC-CR708 Common Rail Injector Pump Test Bench With EUI EUP HEUI Function CR708US$ 4,000 - 5,000MOQ: 1 Set
-
From China BEACON MACHINE Common Rail Diesel Fuel Pizeo Injector Test Bench EPS200US$ 2,500 - 3,000MOQ: 1 Set
Brand Name
BEACON
Place of Origin
Shandong, China
Model Number
CR915S
Power
Electronic
Product Description

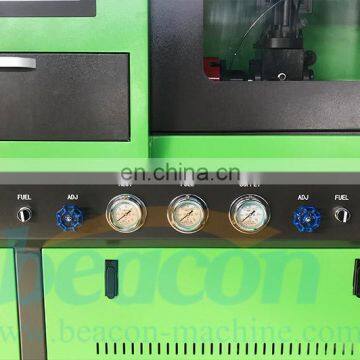

CR915S HEUI EUI EUP COMMON RAIL DIESEL FUEL INJECTION PUMP TEST BENCH
DESCRIPTION:
CR915S COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system,can test common rail injector,EUI/EUP,HEUI injector testing.
Application
Mainly test for common rail pump and injector.Also it is continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of re-productivity of the measured value.
professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.
Specialized test bench for Common Rail testing:
Common Rail System:
Solenoid valve CRI Bosch / Delphi / Denso
Solenoid valve CRIN Bosch
Piezo CRI Bosch / Siemens / Denso
With test data and test plan.
It also can test common rail injectors and pump
TECHNICAL PARAMETERS:
Motor power |
7.5KW, 11KW, 15KW, 18.5KW |
||||||
Electronic power |
3 PHASE 380V or 3 PHASE 220V |
||||||
Motor speed |
0-4000RPM |
||||||
Presure adjustment |
0-2000bar |
||||||
Flow testing range |
0-600ml/1000times |
||||||
Flow measurement accuracy |
0.1ml |
||||||
Temperature range |
40+-2 |
||||||
Cooling system |
fan or forced cooling |
||||||
Function
1.Test piezo injector function and Electromagnetic injectors
2. DRV testing
3.Forced cooling
4. HEUI TESTING
5.EUI EUP TESTING
Option function
1.Bosch denso delphi and siemens coding function
2.cat 320d pump testing function
3.cat heui Actuating pump testing function
4.BIP function
5.Delphi E3 dual pulse control system
EUI EUP injector accessories list:
Related Products
Packing & Delivery
Certifications
Our Company
JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump
test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical
support, our products are the common choice of many overseas buyers.
Our main product include:
common rail injector/pump test bench ,
common rail injector/pump tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,
Denso ECD-V3 ,V4, V5 pump tester ,
PT Cummings pump and injector tester ,
common rail tools
High quality spare parts: Injector/valve/nozzle/head rotor/plunger....
Welcome to visit our factory and cooperate in the future.
