China Manufacturer Factory Common Rail Solenoid Valve Injector Test Bench Calibration Alignment Machine NT816F
US$ 7,500 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BEACON
Place of Origin:
Shandong, China
Model Number:
NT816F
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port or any sea port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Common Rail Injector Product Boossch Eps200 Plus Test Machine Eps100 Eps200 Eps205US$ 11,000 - 15,000MOQ: 1 Set -
EPS 205 High Quality Factory Low Price Common Rail Injector Test Machine EPS205/dts205US$ 2,300 - 2,900MOQ: 1 Set
-
JINAN BEACON Original EPS 205/EPS 200 Plus Upgrade Test Bench Crdi Injector Tester WITH QR Code PrinterUS$ 11,000 - 15,000MOQ: 1 Set
-
Common Rail Injector Product Tester Eps200 Plus Crdi Injector Coding Test EquipmentUS$ 11,000 - 15,000MOQ: 1 Set
-
Hot Sale High Quality Eps 100 Common Rail Injector Test Bench NTS100 EPS100 - JINAN BEACONUS$ 1,300 - 1,500MOQ: 1 Set
Brand Name
BEACON
Place of Origin
Shandong, China
Model Number
NT816F
Power
Electronic

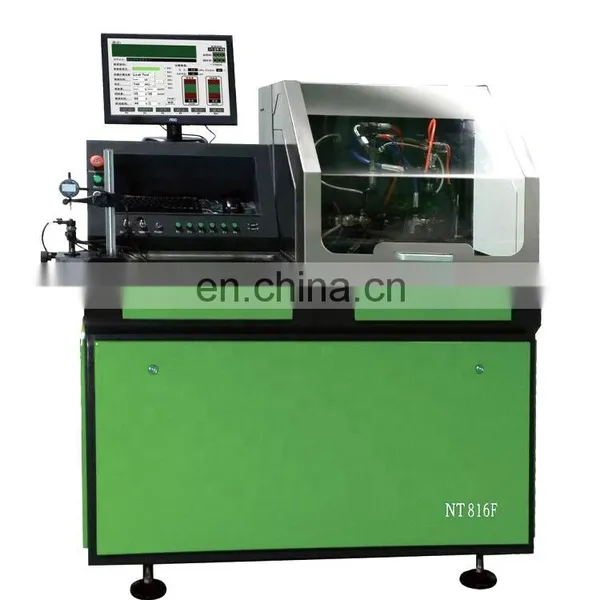

Common rail injector test bench NT816F with testing valve assembly lift and fuel injection lift
Product Description
Common rail injector test bench NT816F with testing valve assembly lift and fuel injection lift
1.High pressure cleaning: high pressure cleaning impurities attached to internal parts of injector.
2.Atomization test: to judge whether the injector is blocked through the atomization effect.
3.Single injection: the operator can set the number of injections to conduct a single injection observation.
4. Sealing test: check the sealing performance of nozzle, nozzle cap nut and solenoid valve.
5. Injector test: Test the injected fuel & return volume under rating, idling, Emission, pre-injection and pre- injection 2 status.
6. Test the current of injector solenoid valve, valve assembly lift, fuel injection lift.
7. Fully automatic test of different types of solenoid valve injector and piezoelectric injector
8. Check,save, print data and customer information.
Main configuration:
1. Equip original Bosch CP1 pump
2. Stainless steel fuel tank with industrial air conditioner to control temperature ± 2 ℃ circularly
3. Equip original German high-precision flow sensor
4. Equip original Bosch DRV, pressure sensor (0-2000bar)
5. Equip Bosch 3rd stage stroke testing program and adapters
6. Include DRV, fuel injection cooling treatment device
7. Include Oil circuit emptying treatment device
8. You can set the injection current curve by yourselves
9. The system includes original fuel injector current curve and data
10. Main motor power 5.5KW, optional three phases 380V 50HZ, three phases 220V 60HZ, two phases 220V/60Hz in convenient for the
different need of power supply in different countries.
2. Stainless steel fuel tank with industrial air conditioner to control temperature ± 2 ℃ circularly
3. Equip original German high-precision flow sensor
4. Equip original Bosch DRV, pressure sensor (0-2000bar)
5. Equip Bosch 3rd stage stroke testing program and adapters
6. Include DRV, fuel injection cooling treatment device
7. Include Oil circuit emptying treatment device
8. You can set the injection current curve by yourselves
9. The system includes original fuel injector current curve and data
10. Main motor power 5.5KW, optional three phases 380V 50HZ, three phases 220V 60HZ, two phases 220V/60Hz in convenient for the
different need of power supply in different countries.
System advantage:
1. Windows XP system, to achieve full automatic operation
2. Industrial computer system control, high-speed operation, stable performance
3. Equip original Bosch data, test accuracy similar with the world-leading test bench.
4. Powerful database: include more than 1,000 kinds of Bosch, Delphi, Denso, Siemens injector plan,
and test plan could be updated free of charge
5. Injector database management: edit,save, revise and delete
6. The operator can choose to test step by step or continuous test
7. The operator can set injection time and injection pressure during testing
8. The operator can choose testing results automatically judged by computer system or judge it by yourself.
9. Include Chinese, English, German, Spanish, French, Russian and Portuguese operating interface
10. Support customized products and application.
2. Industrial computer system control, high-speed operation, stable performance
3. Equip original Bosch data, test accuracy similar with the world-leading test bench.
4. Powerful database: include more than 1,000 kinds of Bosch, Delphi, Denso, Siemens injector plan,
and test plan could be updated free of charge
5. Injector database management: edit,save, revise and delete
6. The operator can choose to test step by step or continuous test
7. The operator can set injection time and injection pressure during testing
8. The operator can choose testing results automatically judged by computer system or judge it by yourself.
9. Include Chinese, English, German, Spanish, French, Russian and Portuguese operating interface
10. Support customized products and application.
Product packaging
Certifications
Company Profile
JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers.
Our main product include:
common rail injector/pump test bench ,
common rail injector/pump tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,
Denso ECD-V3 ,V4, V5 pump tester ,
PT Cummings pump and injector tester ,
common rail tools
High quality spare parts: Injector/valve/nozzle/head rotor/plunger....
Welcome to visit our factory and cooperate in the future.
Customer Photos
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7-14 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
