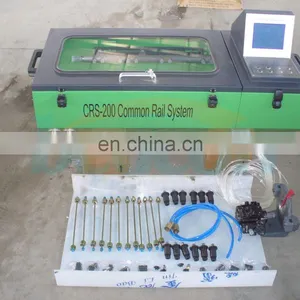

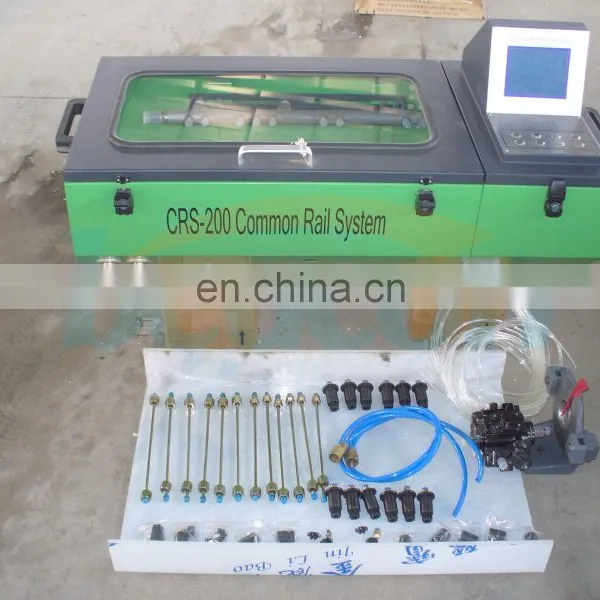

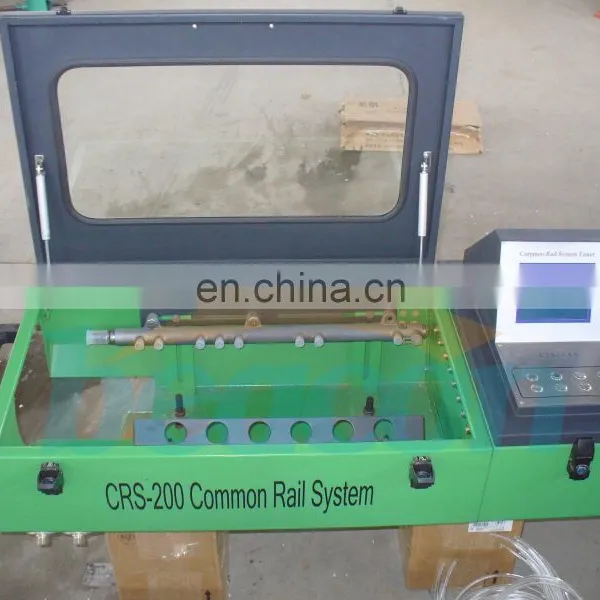

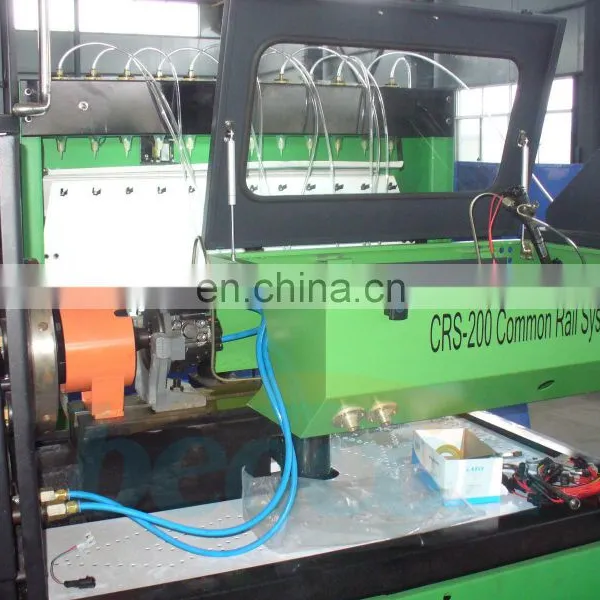

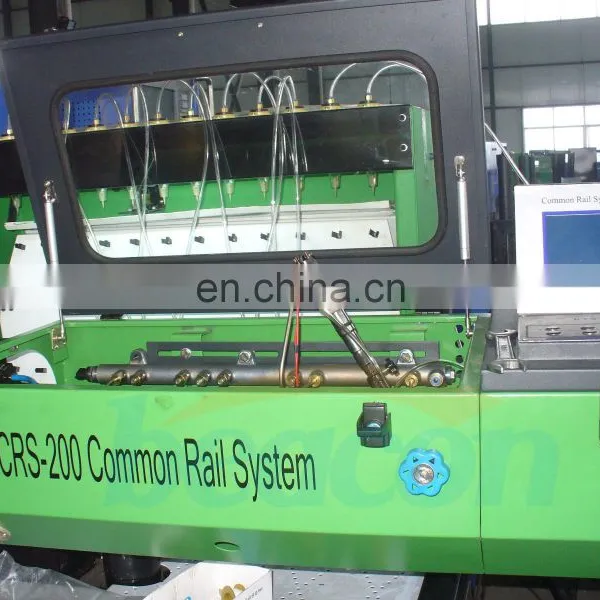

The function of the tester for CR high pressure pumps is to provide the desired signal to drive the solenoid in the pump being tested. CRS200 common rail Tester can used for testing following pumps: BOSCH CP1CP2CP3SIEMENS, DENSO HP2 AND HP3. It has the functions to test the Electromagnetic and Piezoelectric injectors. It also can test 6 common rail injectors in one time. Design Features * Modulated driving signal to ensure the safety of the solenoid of the CR pump * Adjustable duty cycle for the driving signal * Short circuit protection for the output circuitry of the solenoid driving signal * Measure and LCD display rail pressure * To test if the CR injector is still function, To connect a CR injector to a high pressure fuel source by a high pressure fuel line and to the CR tester by harness. The tester is set to continuous injection mode. The CR injector is in normal condition, if it is capable to inject fuel under the driving signals by the tester. * To test injector spray atomization, To connect a CR injector to a high pressure fuel source by a high pressure fuel line and to the CR tester by harness. The tester is set to single injection mode to allow observing the nozzle spray pattern to judge if the nozzle is normal or orifice plugged. * Checking the Injectors return oil and injection oil.
Pls point the model number , you will see more details:
8 cylinder 12psb test bench |
EPS200 CR injector test bench |
vp37 pump tester |
cr305 CR injector test bench |
12 cylinder 12psm test bench |
PQ1000 CR injector tester |
crs4000 CR injector test bench |
cr308 HEUI CR injector test bench |
LGC4000 test bench with computer control |
RED4 pump tester |
EUI EUP TEST BENCH |
LGC-CR918 test bench |
CR816 CR test bench |
PT212 cummins pump test bench |
EPS205 CR injector test bench |
crm-100 3 stage tools |
LGC-D3 turbochager balancing machine |
EPT2000 cummins injector test bench |
vp44 pump tester |
CRR20-C 3 STAGE TOOLS |
JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers.
Our main product include:
common rail injector/pump test bench ,
common rail injector/pump tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,
Denso ECD-V3 ,V4, V5 pump tester ,
PT Cummings pump and injector tester ,
common rail tools
High quality spare parts: Injector/valve/nozzle/head rotor/plunger....
Welcome to visit our factory and cooperate in the future.
1.Q:How can i start the order?
A:STEP1,please let us know what model do you interest and quantity you need;
STEP2,then we will make a PI for you to confirm all the order detail;
STEP3,after you confirmed all the detail,then you can arrange the payment;
STEP4,after we received the payment we will start the production and delivery for you.
2.Q:What is the delivery time?
A:It depend on what kind of product do you need,if you need a small tester or the spare parts,
about 2-3 work days
For big product such as test bench or balancing machine takes about 7-10 work days.
3.Q:What is the payment term?
A:We support TT/ WEST UNION/LC/ MONEY GRAM / ALIBABA TRADE ASSURANCE.
4.Q: what is your after sale service?
A: One year warranty for our product, whole life technical support whole-life.
5.Q:What delivery term do you support?
A:For sea shipping,we can do the term EXW,FOB,CFR,CIF,DDU and DDP.
For courier service,we can delivery by DHL TNT,FEDEX,EMS and etc....
Please for more information directly contact us we will give you the best option.
