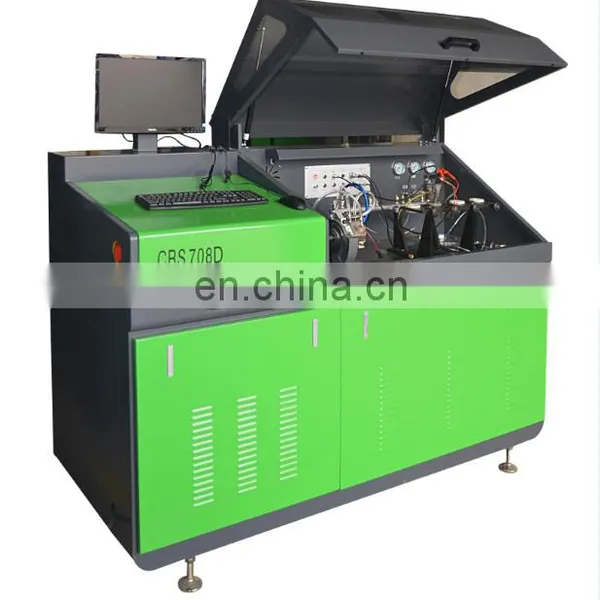

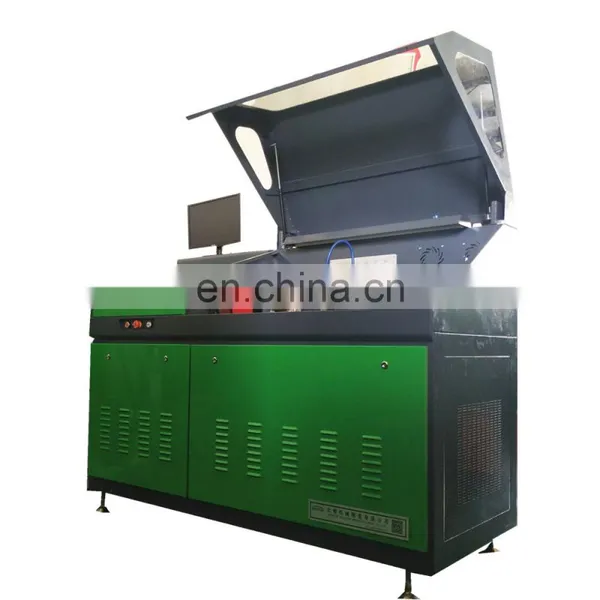

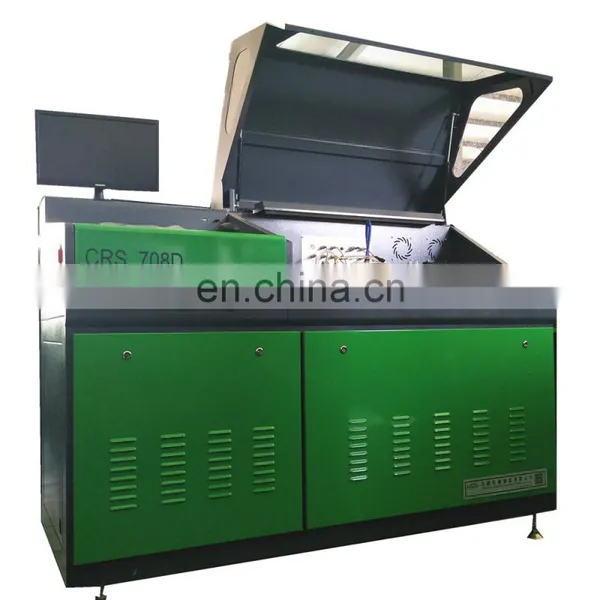

CRS708D used diesel fuel injection pump test bench common rail
>>>FUNCTION
1.Application: Bosch,Delphi,Denso,Siemens common rail injector and pump.
2.Pump test: measure feeding and return volume,pump chamber pressure,feeding pressure,check sealing performance, and functions of ZME valve.
3.Injector test: measure the injected fuel quantity & return volume under full-loaded, idling,
pre-injection and Emission status.
4. Check the sealing performance of the injector.
5. Check the solenoid valve.
6. Clean the injector and pump before testing.
7. Clean the ZME separately.
8. Testing 6 oil injectors in one setup.
9.User can add and edit the data by themselves.
10.Save and print the testing results & customer information.
11.Support software upgrading.
>>>CHARACTERISTICS
1. Full-automatic operation procedure, save the time to set up the data.
2. Germany flow sensor: flow range 0.008-2L/min, test precision 0.5%.
3. Bosch common rail system (external connection DRV to Bosch rail with DRV) is used.
4. Rail pressure is controlled accurately by DRV and ZME valve.
5. Original Bosch CP3 common rail pump is equipped.
6. Industrial computer with windows system.
7. Rich database:640 types of data.
8. Self-protection under following status:overheat, oil-mist, overpressure, low oil level,
9. Remote control is convenient for software upgrading and after-sale service.
10. Frequency converter is used to change the rotation speed.
11. Iron fuel tank with industrial air-conditioner inside .
1, Main motor speed |
0-4000 r / min can be adjustable. |
2, Motor power |
7.5KW, 11KW, 15KW, 18.5KW optional. |
3, Fuel Injector open voltage Control range |
12V, 80V, 150V Control accuracy: phase adjustment |
4, Injector opening frequency Control |
0-1000HZ Control accuracy: 1HZ |
5, Fuel Injector Hold Time Control |
0-65535us |
6 Delivery Oil CountControlControl accuracy |
0-1000 times 1 times |
7, Fuel pressure control Control accuracy |
0-2000bar 1bar |
8, Electronic power |
3 PHASE 380V or 3 PHASE 220V |
>>>OPTION(On request)
1. |
VP37 pump test system |
2. |
EUI test system |
3. |
EUP test system |
4. |
Oil lubricate |
5. |
Piezo injector test system |
CR917S multifunctional common rail injector pump heui eui eup test bench with coding function
BK2000 automatic speed ship governor test bench
Automotive electrical CR318 Heui common rail injector test bench with double oil road
Beacon common rail control valve 9308-625c 625c
JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers.
Our main product include:
common rail injector/pump test bench ,
common rail injector/pump tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,
Denso ECD-V3 ,V4, V5 pump tester ,
PT Cummings pump and injector tester ,
common rail tools
High quality spare parts: Injector/valve/nozzle/head rotor/plunger....
Welcome to visit our factory and cooperate in the future.
