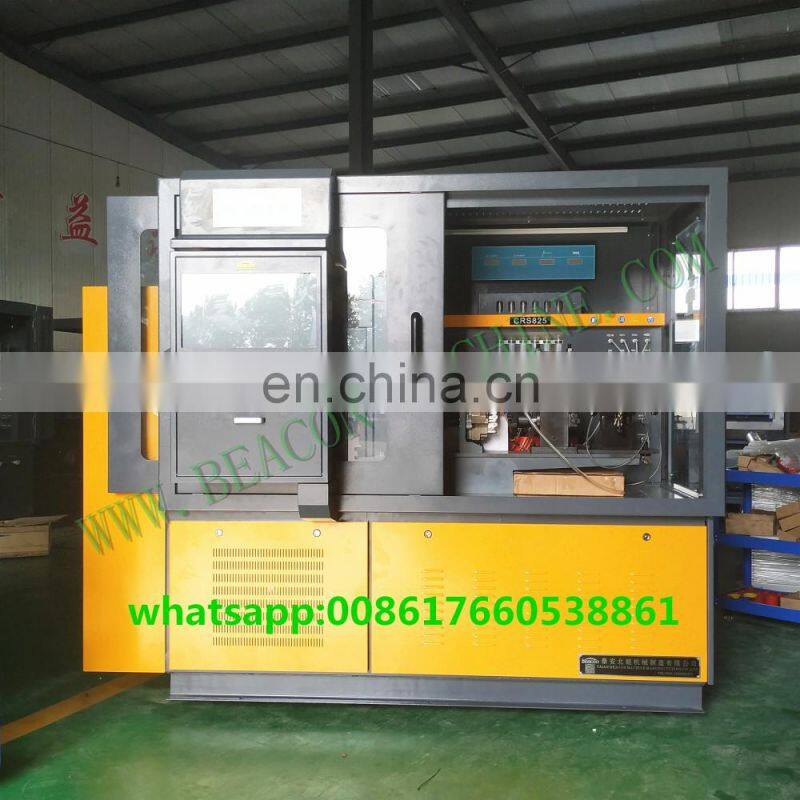

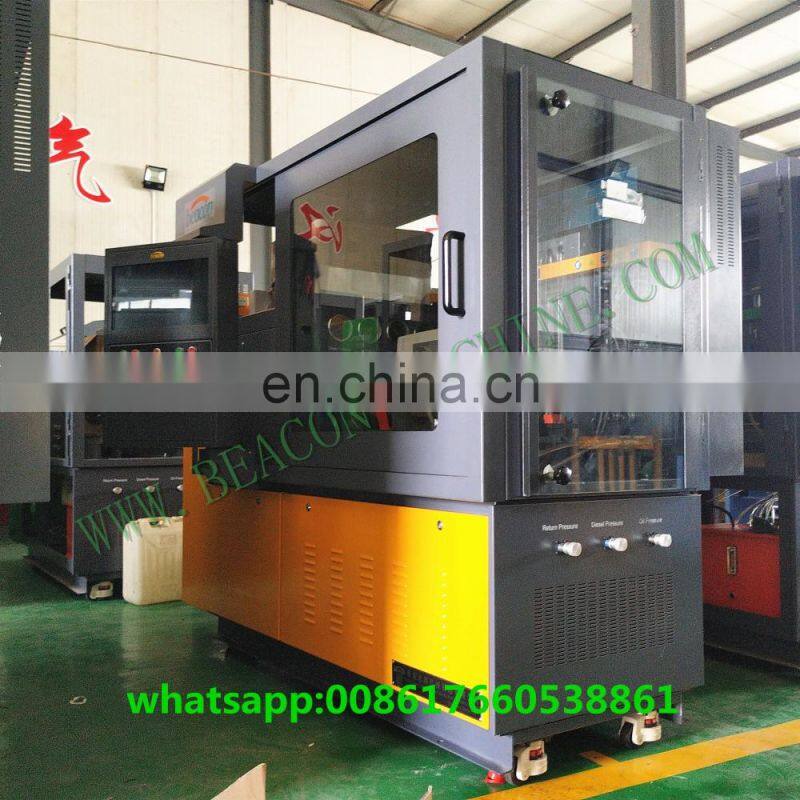

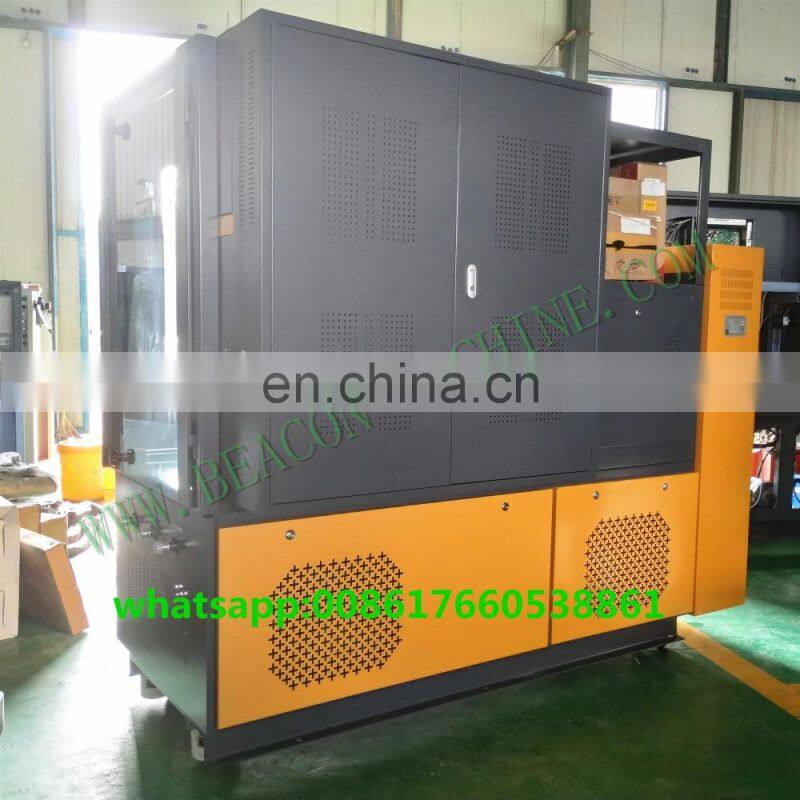

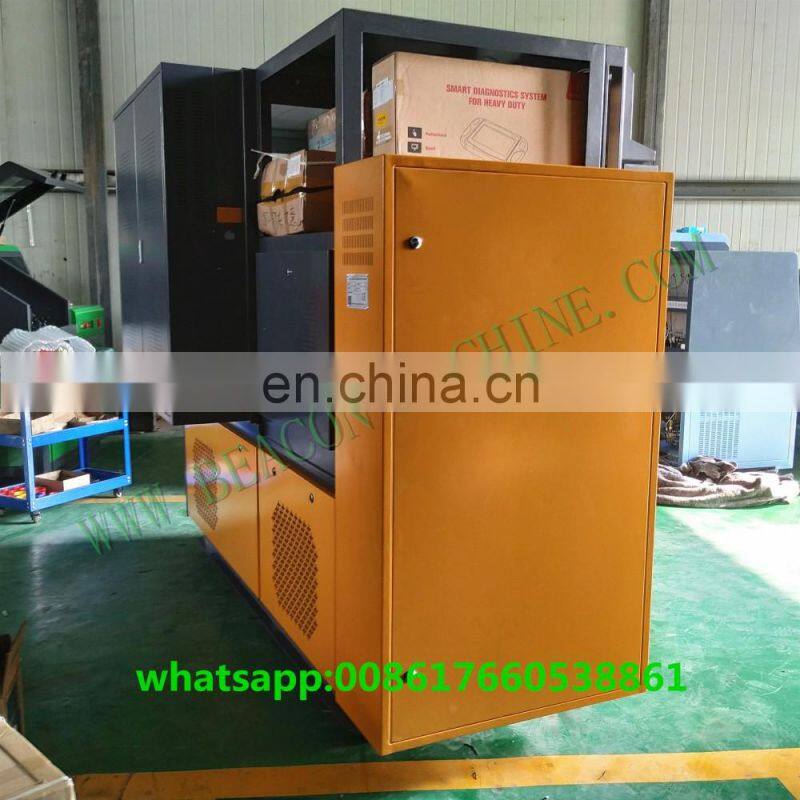

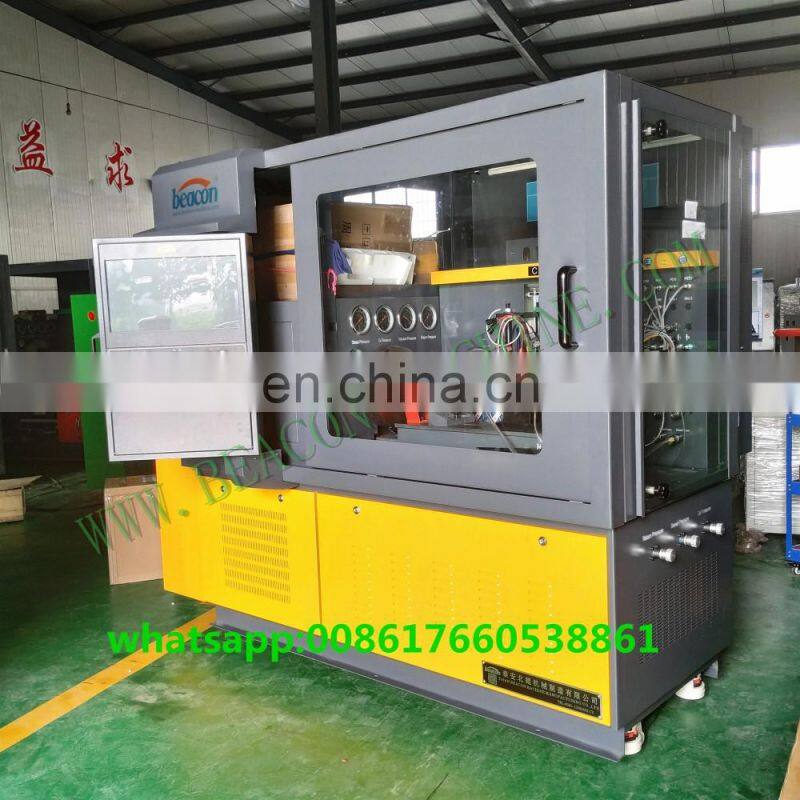

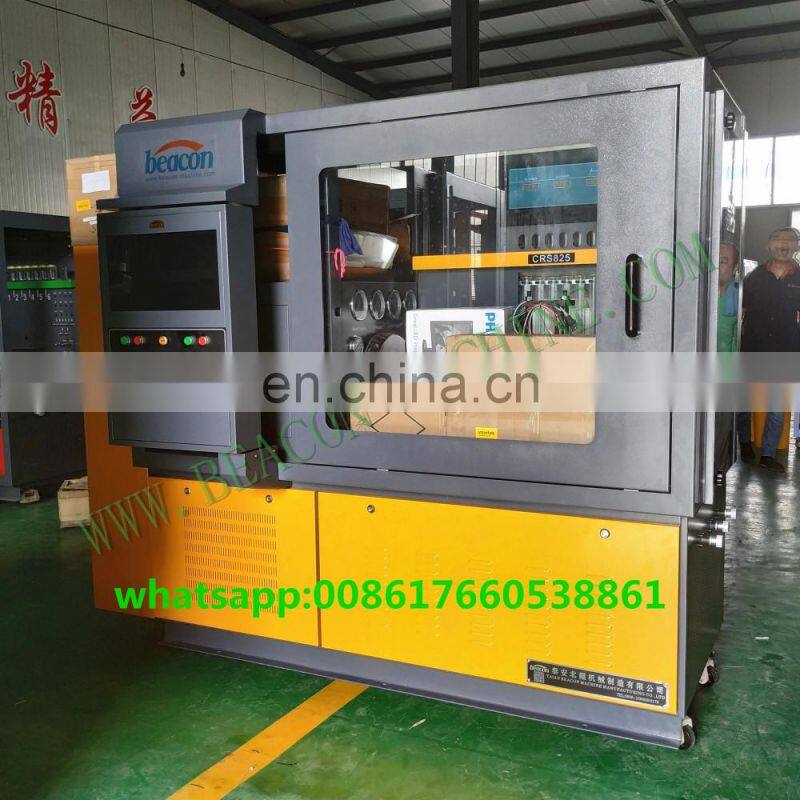

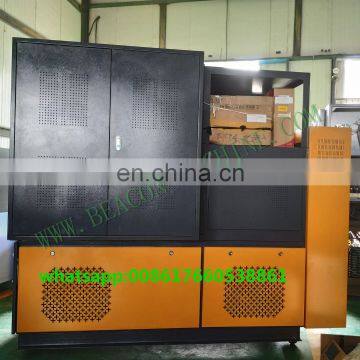

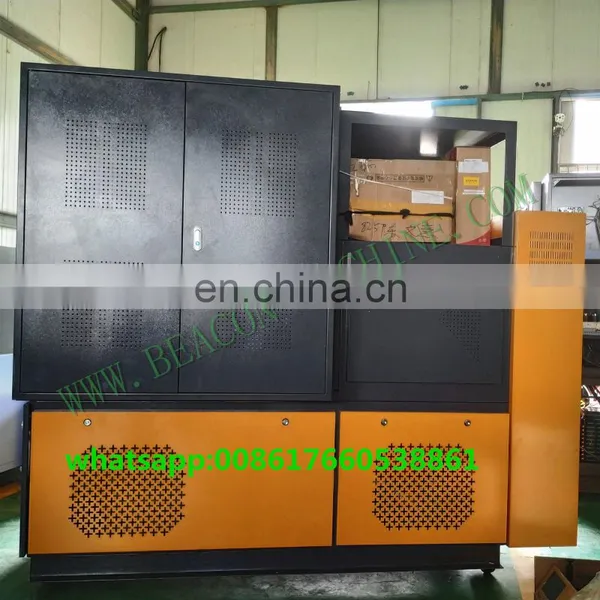

Help CenterBEACON Machine CR825 Multi Functional Eup/eui Heui Common Rail Injector Test Bench
Related Products
-

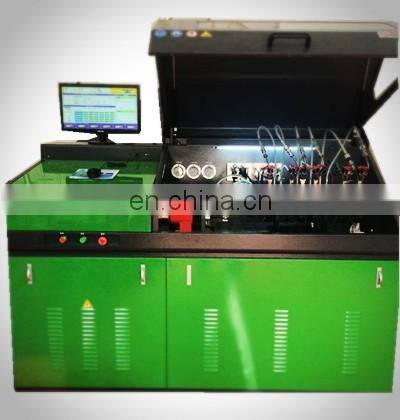

CRS708 High Quality Common Rail Diesel Injector Pump Calibration MachineUS$ 6,300 - 6,450MOQ: 1 Set -
BEACON MACHINE CRS 708 Common Rail Injector Pump Test Bench 22KWUS$ 6,300 - 6,450MOQ: 1 Set
-
CRS-708 Manual Common Rail Diesel Injector Test Bench Eps708US$ 6,300 - 6,450MOQ: 1 Set
-
Best Match Hot Sale Cr3000a 708 Common Rail Injector Pump Test BenchUS$ 6,300 - 6,450MOQ: 1 Set
-
EPS 708 Eui Eup Heui Common Rail Injector Pump Test BenchUS$ 6,300 - 6,450MOQ: 1 Set
Product Application
MAIN CONFIGURATION
1.Motor power:22KW
2.Industrial PC with touch screen
3.Compressor cooling
4.Oil tank(including heating,refrigeration,liquid level detection,temperature detection)
5.Diesel tank(including heating,refrigeration,liquid level detection,temperature detection)
6.Flow meter(German ZDM) detecting the fuel injection flow rate
7.Flow meter(German ZDM) detection of common rail pump
8.Flow meter(German KRACHT) to detect oil flow
9.Flow meter(German KRACHT) detection of diesel oil return flow
10.2sets of BOSCH common rail +DRV
11.Oil tank temperature sensor
12.Diesel fuel tank temperature sensor
13.Diesel supply temperature sensor
14.Diesel return temperature sensor
15.Oil pressure sensor
16.Diesel supply pressure sensor
17.Diesel return pressure sensor
18.Diesel pump internal pressure sensor
19.Oil pressure closed loop control module
20.The device is convenient to move and position the roller
Main Features
1.Test all the manufacturers of common rail injector
2.Test all the manufacturers of piezo injector
3.Test all the manufacturers of common rail pump
4.Test DENSO HP0 pump
5.Test CAT common rail (HEUI) injector
6.Test CAT common rail (HEUI) engine oil pump
7.Test CAT 320D common rail pump (the world's first successful development)
8.Test EUI/EUP (can adjust the lift but not to change the camshaft)
9.Test VP44 VE VP37 pump
10.Test RED3 RED4 TICS ZEXEL electronic control pump
11.Drive circuit board(solenold valve electric parameters to enhance the voltage
current,time,pull in voltage ,current,time,keep voltage ,current,time,according to the setting of parameters of production factory)
12.Accept the speed sensor ,encode signal,high speed solenoid valve drive signal.Accept the speed sensor ,encoder signal,output 2 PWM drive signal, 2 way solenoid valve drive signal,1 high speed solenoid valve drive signal.
Driving signal waveform can be programed.

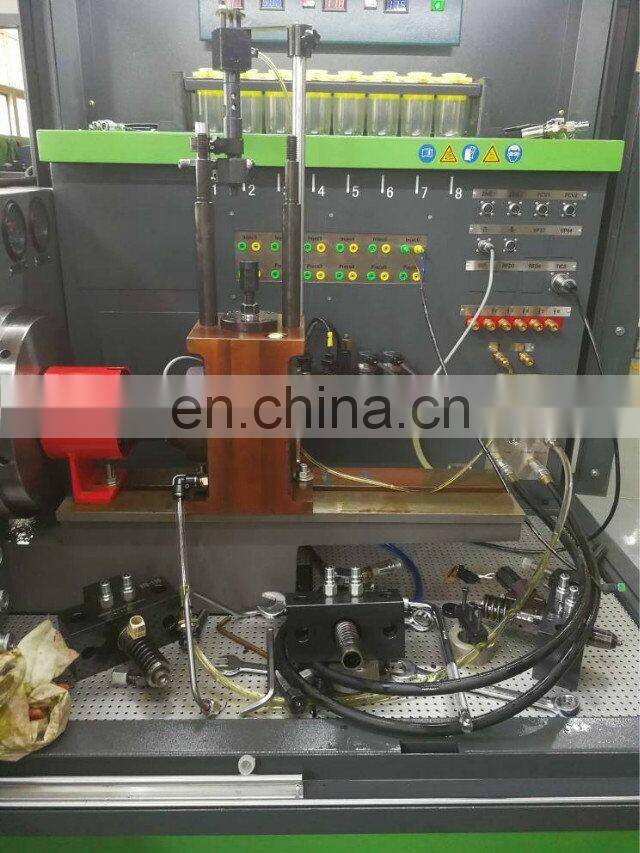

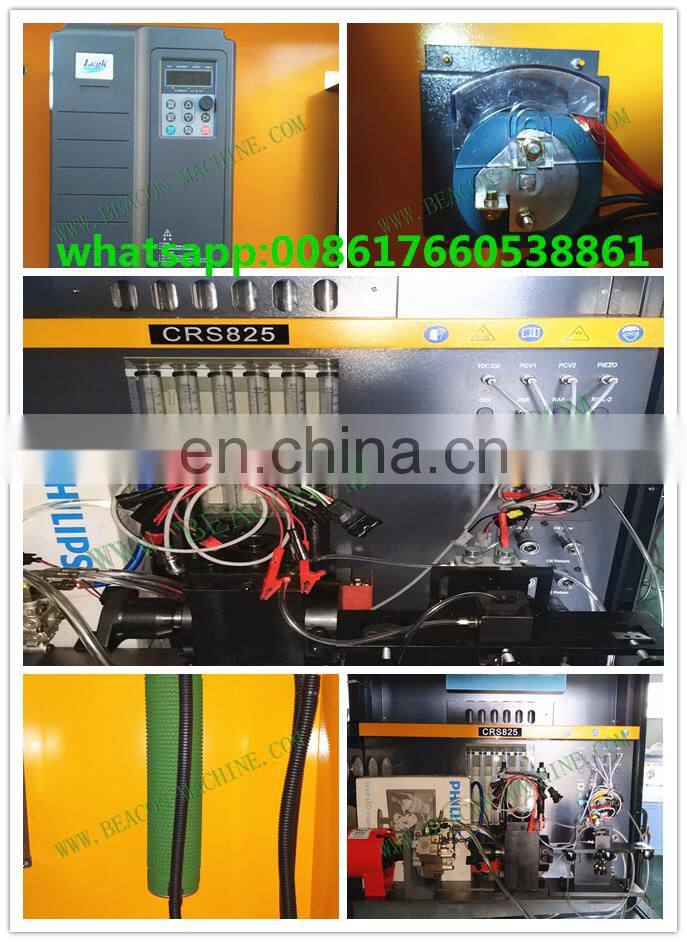

Machine Parts
Machine parts
Machine Parts

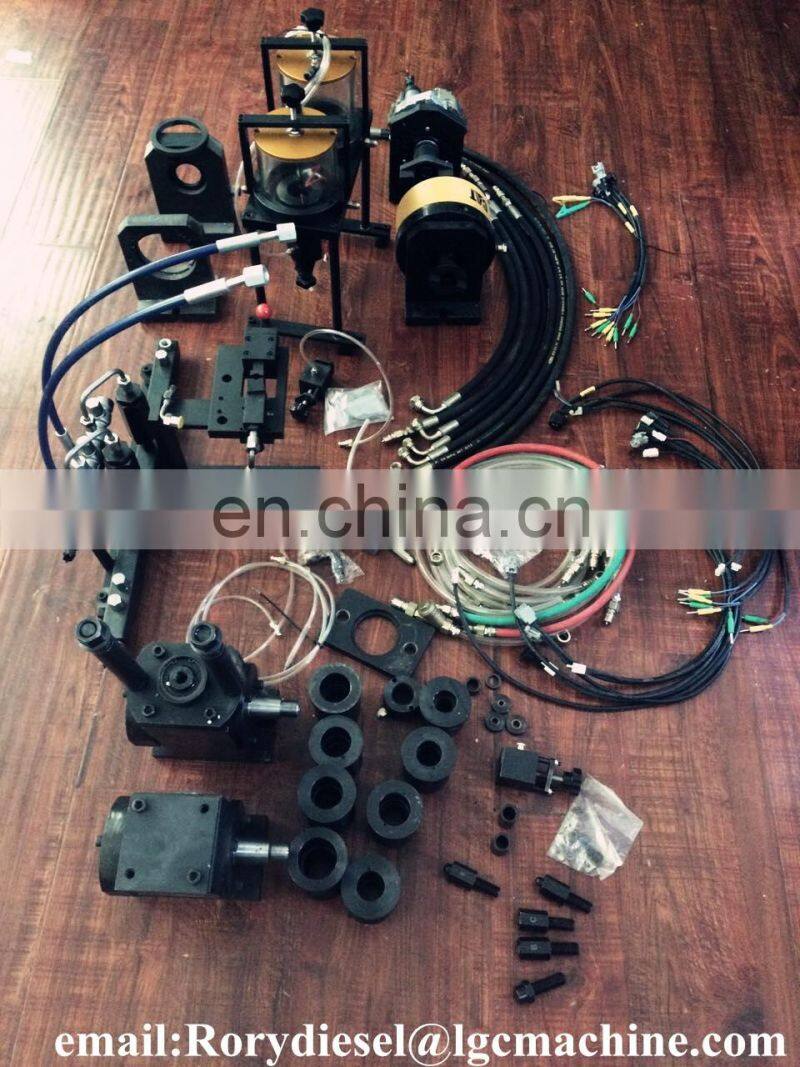

Accessories

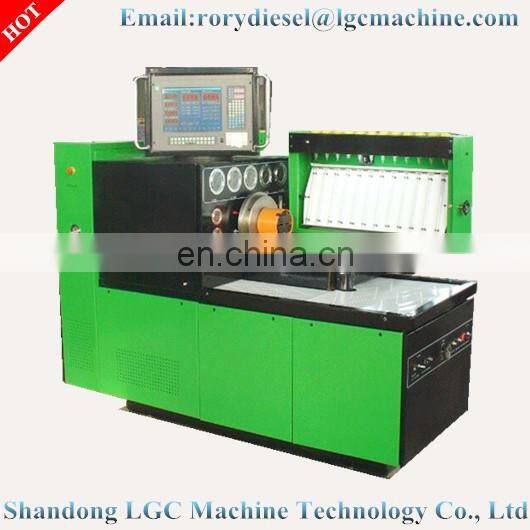

LGC4000 mechanical diesel injection pump test bench
91.8% Response Rate

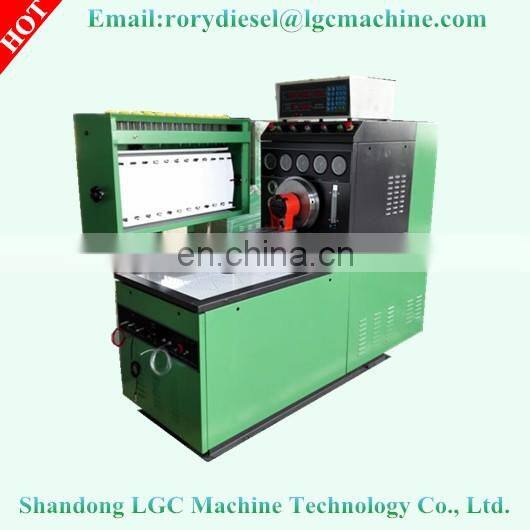

12PSB diesel injection pump test bench
