Home > Instruments & Meters > Test Instrument > Test Machine > Multi-function Comprehensive CR918S Common Rail Diesel Fuel Injection Pump Test Bench

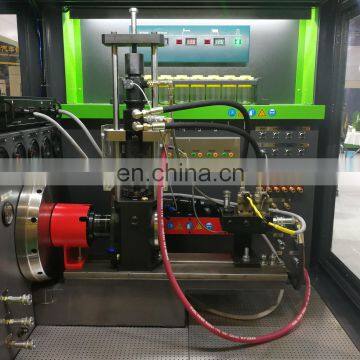

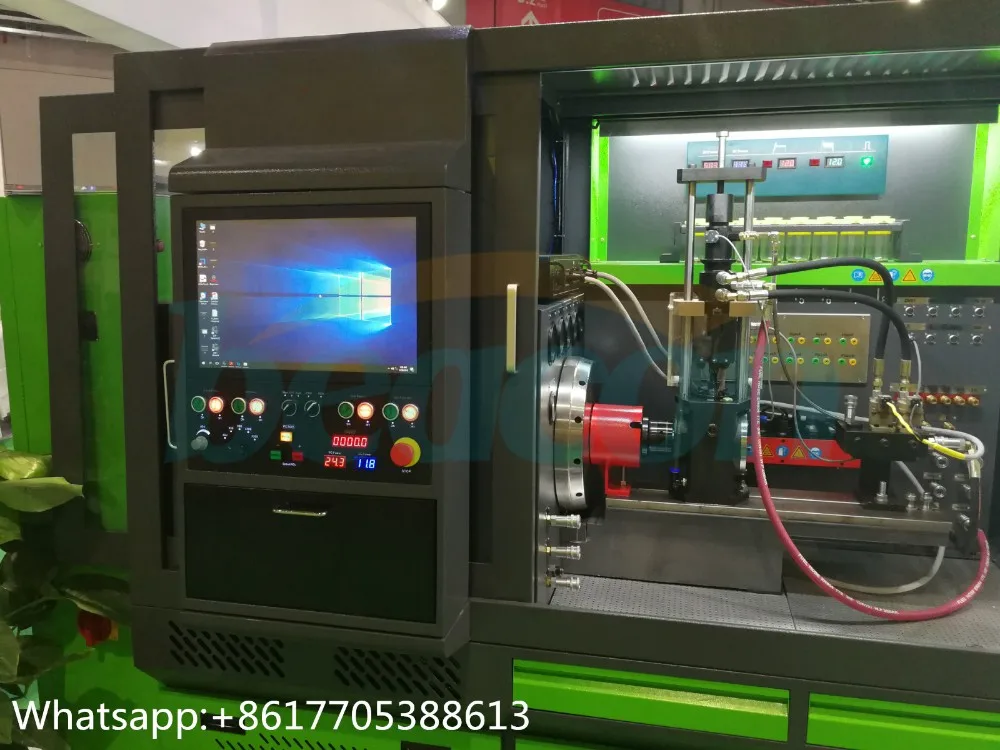

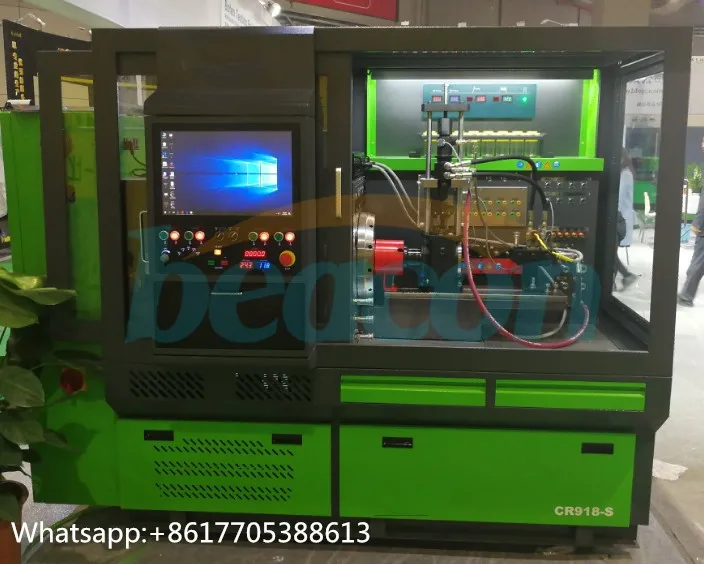

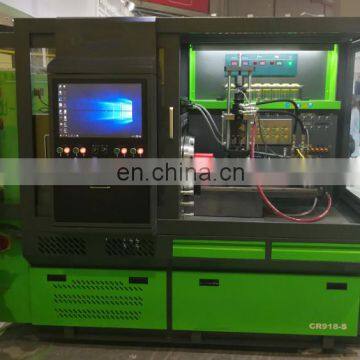

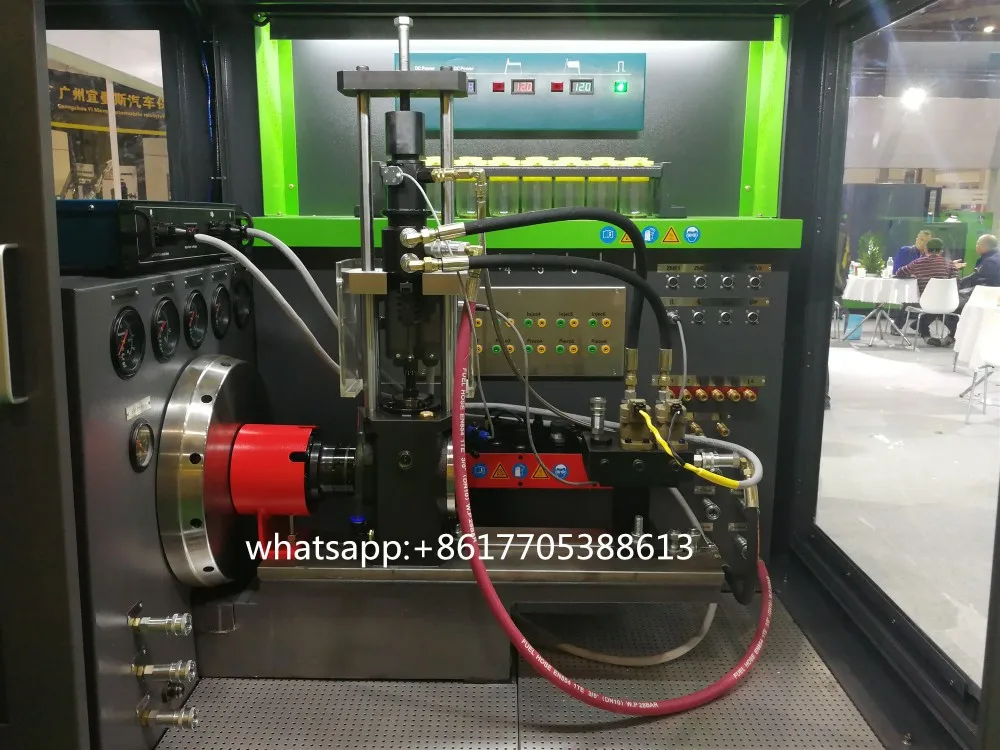

Multi-function Comprehensive CR918S Common Rail Diesel Fuel Injection Pump Test Bench
US$ 18,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Beacon
Place of Origin:
Shandong, China
Model Number:
BC-CR918S
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CRS960 Common Rail System Tester Simulator Common Rail Injector Pump Test Bench Test SystemUS$ 1,050 - 1,050MOQ: 1 Set -
BEACON MACHINE Double Spring Nozzle Gasoline Injector Tester PQ400US$ 500 - 500MOQ: 1 Set
-
PQ1000 Common Rail Injector Test Bench Diesel Injector Calibration MachineUS$ 1,200 - 1,200MOQ: 1 Set
-
PQ400 Double Spring Common Rail Fuel Injection System Auto TesterUS$ 500 - 500MOQ: 1 Set
-
PQ1000 Common Rail Diesel Fuel Injector Test EquipmentUS$ 1,200 - 1,200MOQ: 1 Set
Brand Name
Beacon
Place of Origin
Shandong, China
Model Number
BC-CR918S
Power
Electronic
Product Description

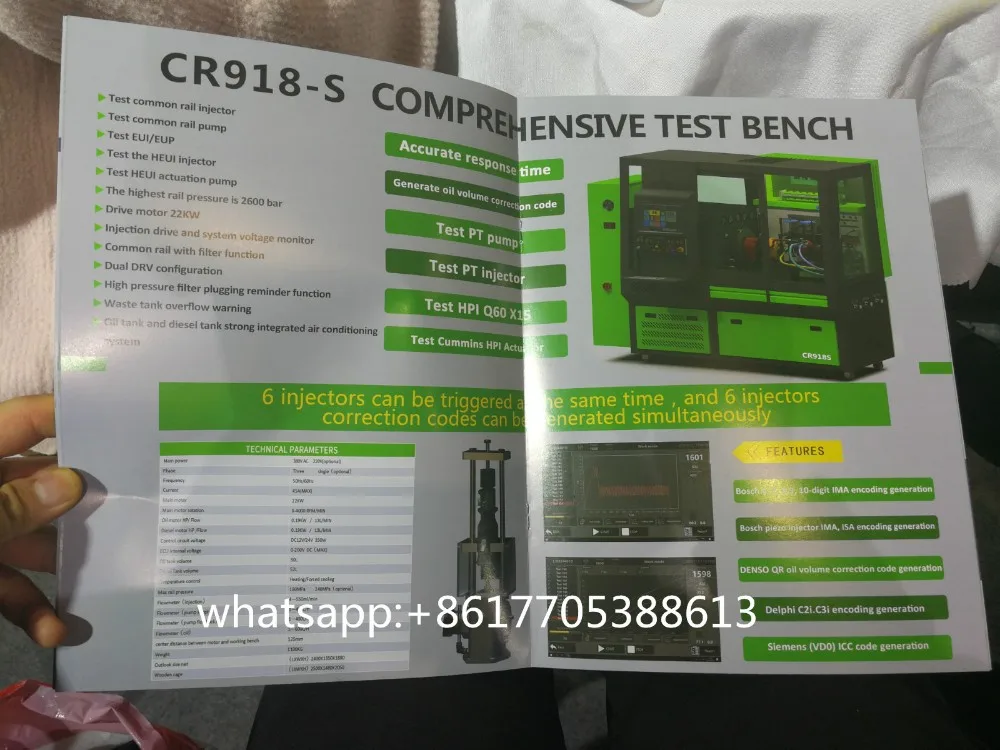

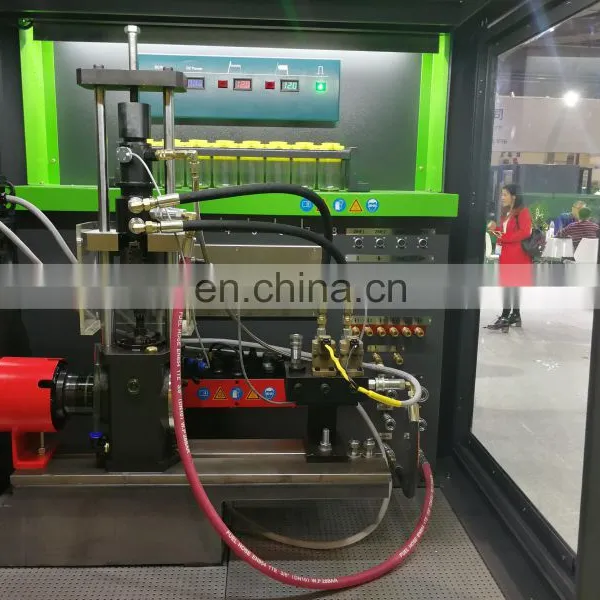

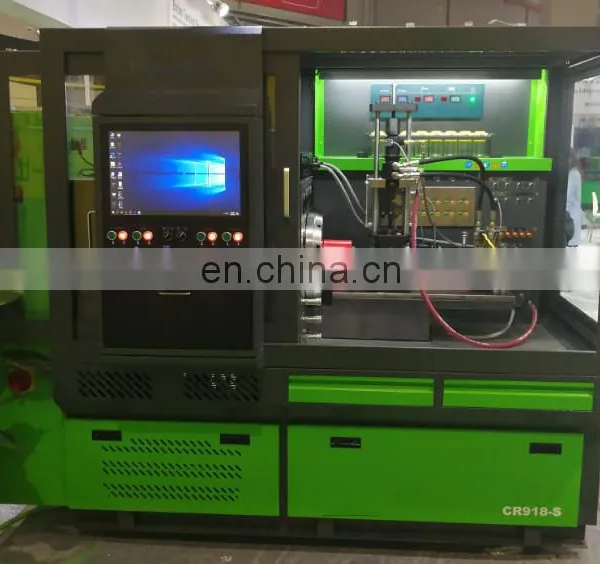

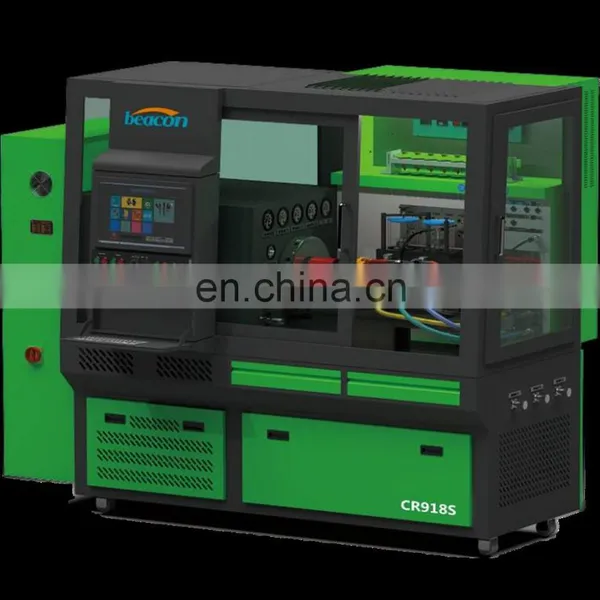

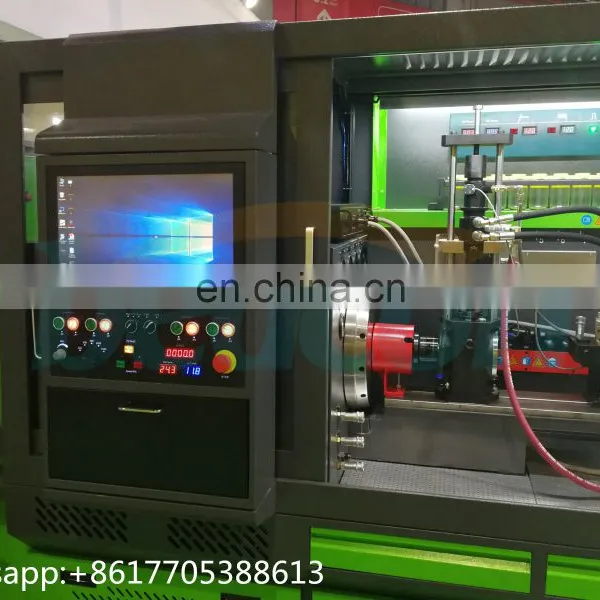

Beacon Machine Multi-function comprehensive CR918S common rail diesel fuel injection pump test bench
6 injectors can be triggered at the same time , and 6 injectors correction codes can be generated simultaneously!
Accurate response time
Generate oil volume correction code
Test PT pump
Test PT injector
Test HPI Q60 X15
Test Cummins HPI Actuator
FEATURES:
Bosch 6,7,8,9,10-digit IMA encoding generation
Bosch piezo injector IMA,ISA encoding generation
DENSO QR oil volume correction code generation
Delphi C2i,C3i encoding generation
Siemens (VDO) ICC code generation
Test common rail injector
Test common rail pump

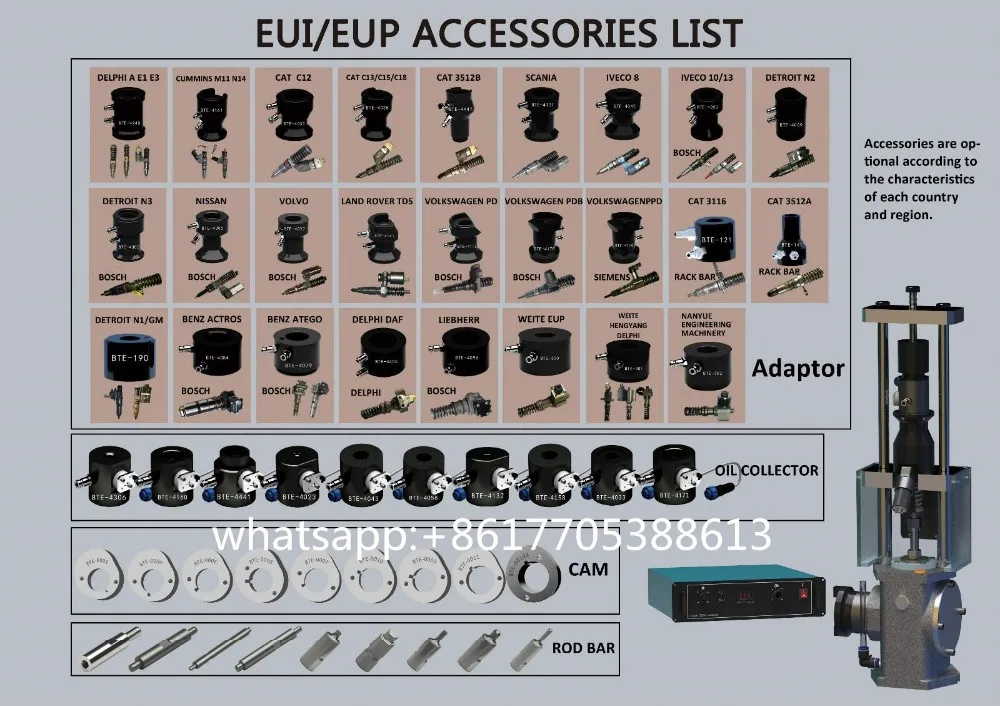

Test EUI/EUP
Test the HEUI injector
Test HEUI actuation pump
The highest rail pressure is 2600 bar
Drive motor 22KW
Injection drive and system voltage monitor
Common rail with filter function
Dual DRV configuration
High pressure filter plugging reminder function
Waste tank overflow warning
Oil tank and diesel tank strong integrated air conditioning system
1. Power | 380V AC 220V(Optional) 22kw | ||||
2.Phase | Three,single(Optional) | ||||
3. Frequency | 50HZ /60HZ | ||||
4. Current | 45A(MAX) | ||||
5.Main motor rotation | 0-4000 RPM/MIN | ||||
6. Oil motor HP/FLOW | 0.19KW/13L/MIN | ||||
7. Temperature of test oil | 40±2℃ | ||||
8.Diesel motor HP/FLOW | 0.19KW/13L/MIN | ||||
9. Control circuit voltage | DC12V/24V 350W | ||||
10. ECU internal voltage | 0-200V DC(MAX) | ||||
11.Oil tank volume | 30L | ||||
12. Diesel Tank volume | 50L | ||||
13.Tempreature control | Heating/Forced cooling | ||||
14.Max rail pressure | 180Mpa 240Mpa(Optional) | ||||
15.Flowmeter(injection) | 4-550ml/min | ||||
16.Flowmeter(pump supply) | 1-400L/H | ||||
17.Flowmeter(pump flowback) | 1-400L/H | ||||
18.Flowmeter(oil) | 5-600L/H | ||||
19.Center distance between motor and working bench | 125mm | ||||
20.Weight | 1100KG | ||||
21.Outlook size net | (LxWxH)2400x1350x1880 | ||||
22.Wooden cage | (LxWxH)2500x1480x2050 | ||||
Packing & Delivery
Certifications
Our Company
JINAN BEACON MACHINE CO.,LTD is the leading manufacturer specializing in producing the Diesel Fuel Injection System Tester in China,is avaiable for Traditional diesel fuel injection pump test bench,PT-CUMMIN pump and injectors Test stand,EDC(Electronic Diesel Controler ),CR(Common Rail pump Teser),CRI(Common Rail Injectors Tester),Nozzle Tester,and many spares parts of Pumps.
The company's research and developmant capabilities are rich and the test measure is complete,and rewards the ISO9001-2000 certificate,CE certificate.
The company's product sale newwork has spread all over the world.The after-sales service of product has a system of its own,which can provide the best service for users timely.The company's aim is "honest and trustworthy operation and brazing new trails in science and technology"
