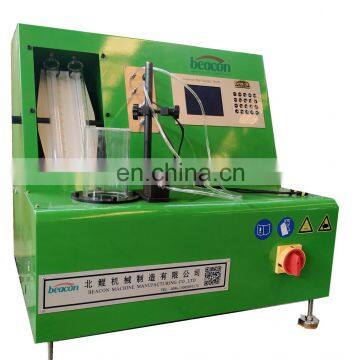

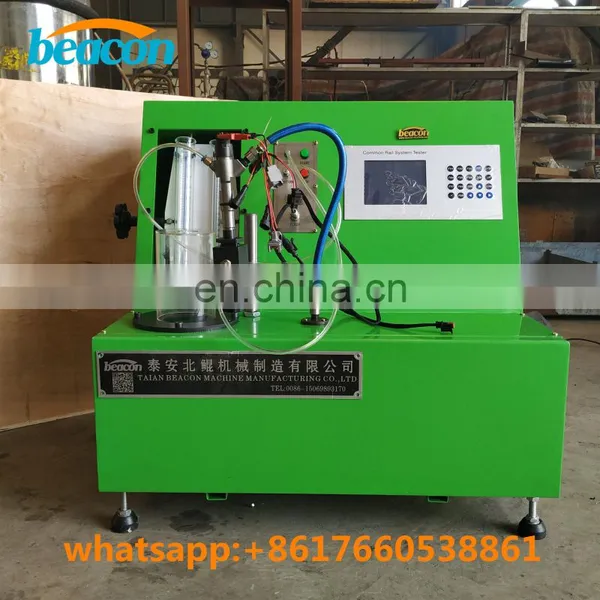

Beacon Machine diesel common rail injector test bench EPS100

EPS100 common rail diesel fuel injector test bench made in china , pressure controlled automatically,
display the frequency and pluse at the screen.
It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO. Advanced technology,
steady performance, precise measurement.
Injector testing: leakage, injection oil quantity and back oil quantity(pre-injection,Idling, emissions, full load)

>>>CHARACTERISTIC

1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4 tactile LCD screen;
3. More than 700 kinds of injectors data can be searched and used.
4. It is installed BOSCH common rail pump to provide 0~2000 bar
5. Rail pressure can be tested in real time,
6. Provide pressure overload protect
7. Pulse and frequency of the injector can be adjusted.
8. Injection time can be set.
9. Protection function of short-circuit.
10. Precise measurement, easy operation, low noise.
11.Frequency converter inside to keep the RPM.

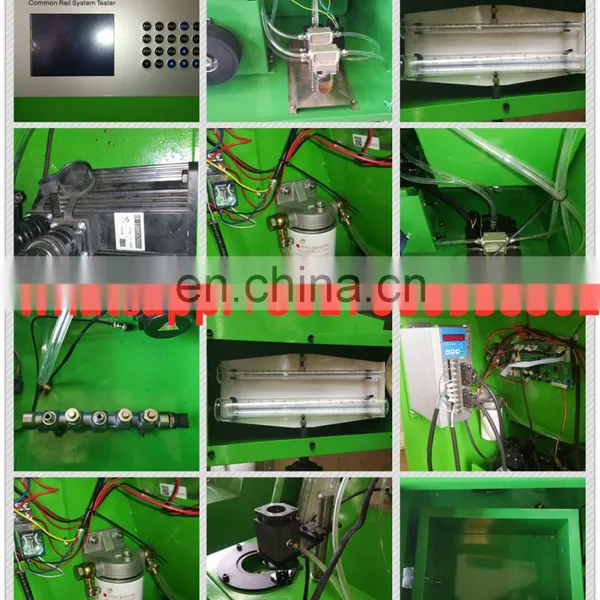

Detail Photo

>>> 0 ~1600 bar bosch eps200 FUNCTION

1. Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.
2. Test 1 piece of injector.
3. Test the pre-injection oil quantity of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the backflow oil quantity of common rail injector.
7.Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved.
10. Clean the common rail injector.
1. Pulse width 0.1~20ms
2. Continuous injection time 0~1000
3. Fuel temperature 40±2°C
4. Rail high pressure 0~1600 bar
5. Test oil filtered precision 5μ
6. Input power 380V/50hz/3phase or 220V/60hz/3phase
7. Rotation speed 0~3000RPM
8. Oil tank capacity: :16L
9. Overall dimension(MM) 865×775×1430
10. Weight: 300KG.

TECHNICAL PARAMETER
1. output power:1.5KW
2. power voltage:220V 1phase
3. motor speed: 0-3000RPM
4. Oil pressure:0-2000bar
5. flow measure range: 0-600ml/1000times
6. flow measurement accuracy: 0.1ml
7. temperature control range: 40+-2

NO.
NAME
NUMBER
UNIT
1
EPS100 MACHINE(BCS100EPS100
1
Set
2
CP1 PUMP
1
Set
3
PC pipe 6mm
3
M
4
Sealing O-rings of the injection and back flow
6
pcs
5
Delphi modified cable
2
pcs
6
Denso modified cable
 1
pcs
7
Bosch modified cable
1
pcs
8
Piezo modified cable
1
pcs
9
Common (use) interchangeable cable
1
pcs
10
High pressure pipe M14*M14
1
pcs
11
High pressure pipe M14*M12
1
pcs
12
Rail pressure sensor
1
pcs
13
Rail pressure sensor connection line
1
pcs
14
Injector collect stand
1
Set
