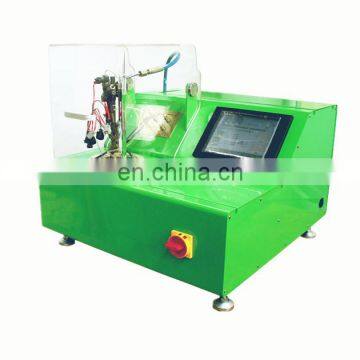

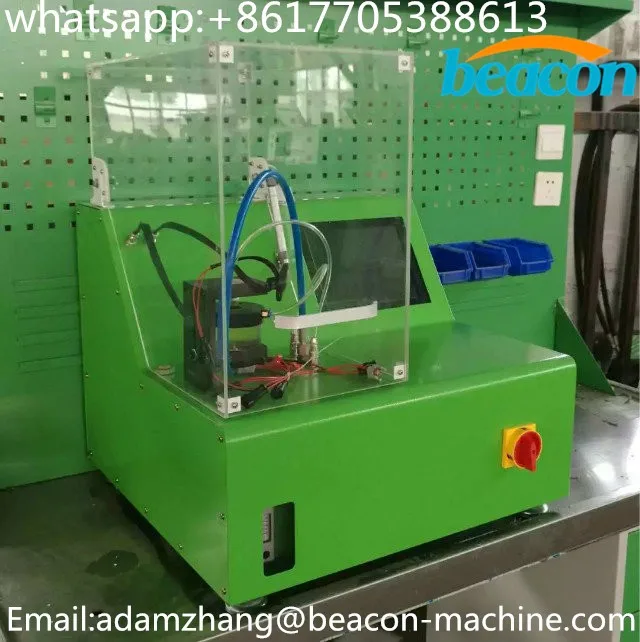

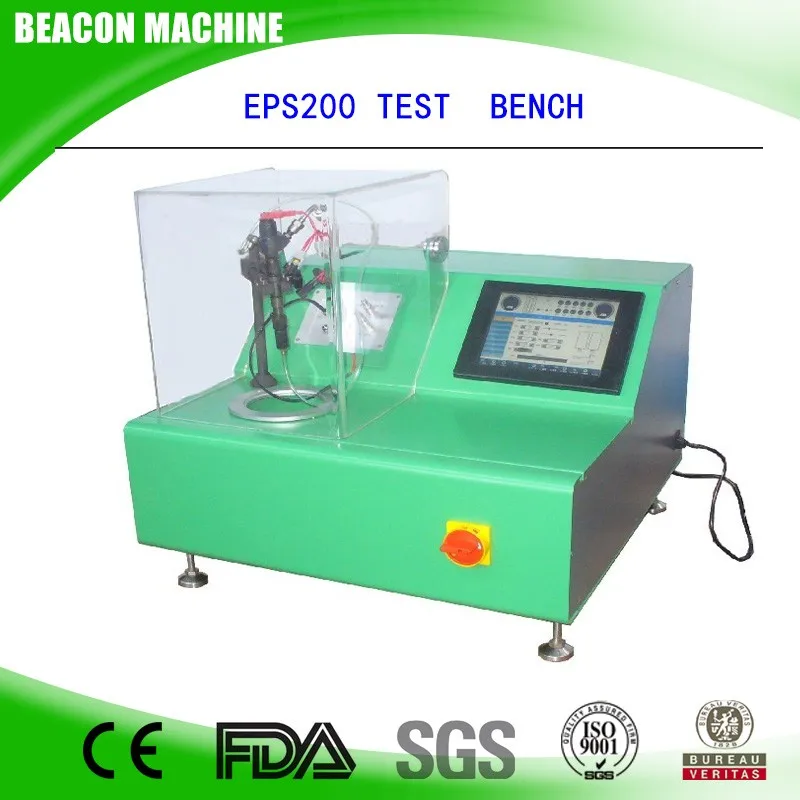

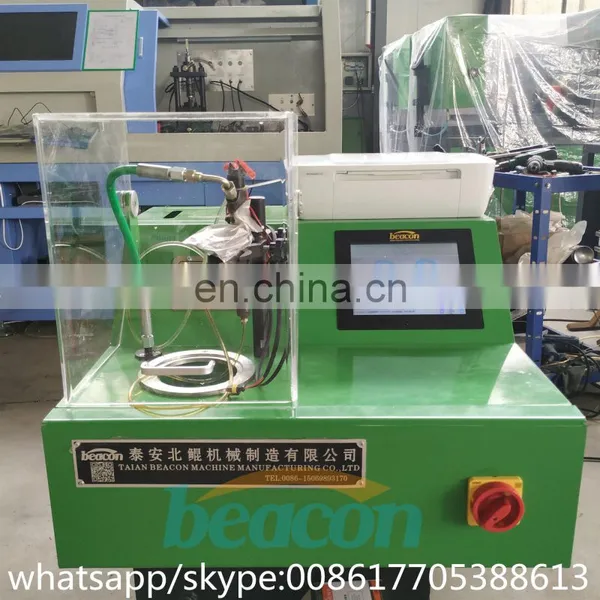

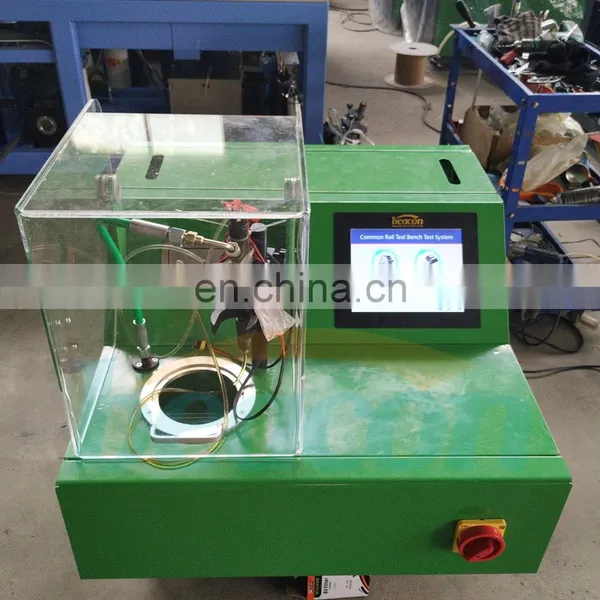

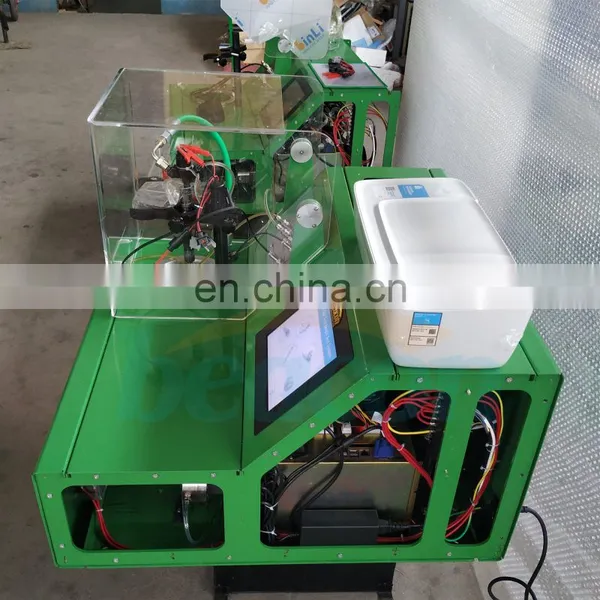

EPS200 common rail diesel injector test bench is our latest indepentent researched special device to test the performance of high-pressure common rail injector,
controlled by industrial computer,
Windows operating system. The oil quantity is measured by sensor and displayed on computer screen. All data can be searched and saved.

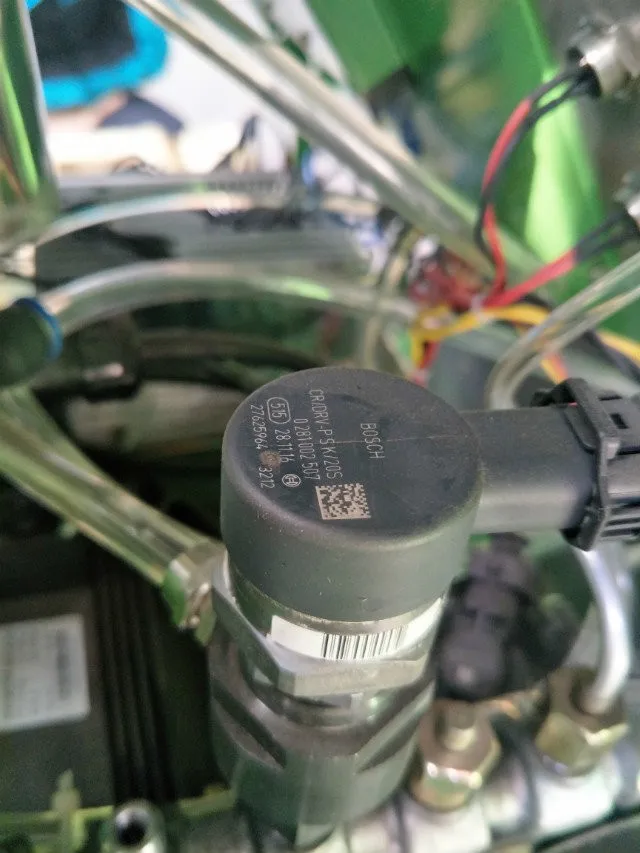

It adopts BOSCH original common rail pump to provide 0~1600 bar of rail pressure. The rail pressure can be adjusted automatically.
it can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO.
Advanced technology, steady performance, precise measurement and convenient operation.
>>>CHARACTERISTIC
1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4tactile LCD screen;
3. More than 400 kinds of injecotors data can be searched and used.
4. Data can be searched and saved.
5. It is installed BOSCH common rail pump to provide 0~1600 bar of rail pressure.
6. Rail pressure can be tested in real time, it contains the high-pressure protection function
7. Pulse and frequency of the injector drive signal can be adjusted.
8. Injection time can be setted.
9. Protection function of short-circuit.
10.Precise measurement, easy operation, low noise.
>>>FUNCTION
1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.
2. Test 1 piece of injector.
3. Test the pre-injection oil quantity of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the backflow oil quantity of common rail injector.
7.Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved.
10. Clean the common rail injector.
>>>TECHNICAL PARAMETER
1. Pulse width | 0.1~20ms | ||||
2. Continuous injection times | 0~1000 | ||||
3. Fuel temperature | 40±2°C | ||||
4. Rail high pressure | 0~1600 bar | ||||
5. Test oil filtered precision | 5μ | ||||
6. Input power | 380V/50hz/3phase or 220V/60hz/3phase | ||||
7. Rotation speed | 0~3000RPM | ||||
8. Oil tank capacity | 16L | ||||
9. Overall dimension(MM) | 865×775×1430 | ||||
10. Weight | 130KG | ||||
Pls point the model number , you will see more details: .
8 cylinder 12psm test bench | EPS100 CR injector test bench | EPT2000 cummins injector test bench | cr825 multi-function test bench |
12 cylinder 12psb test bench | LGC205 CR injector test bench | crs4000 CR injector test bench | cr308 HEUI CR injector test bench |
LGC4000 test bench with computer control | CRS-1000 CR injector tester | LGC816 CR injector pump test bench | LGC-CR918 test bench |
PQ1000 CR injector tester | PT212 cummins pump test bench | crs709 CR injector pump test bench | crm-100 3 stage tools |
LGC-D3 turbochager balancing machine | vp37 pump tester | vp44 pump tester | EUI EUP CAMBOX |
JINAN BEACON MACHINE Co.,Ltd is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,our products already sold to more than 100 countries .
Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,common rail tools and spare part ,
Welcome you to visit our factory and cooperate in the future.
1.Q:How can i start the order?
A:STEP1,please let us know what model do you interest and quantity you need;
STEP2,then we will make a PI for you to confirm all the order detail;
STEP3,after you confirmed all the detail,then you can arrange the payment;
STEP4,after we received the payment we will start the production and delivery for you.
2.Q:What is the delivery time?
A:It depend on what kind of product do you need,if you need a small tester or the spare parts,
about 2-3 work days
For big product such as test bench or balancing machine takes about 7-10 work days.
3.Q:What is the payment term?
A:We support TT/ WEST UNION/LC/ MONEY GRAM / ALIBABA TRADE ASSURANCE.
4.Q: what is your after sale service?
A: One year warranty for our product, whole life technical support whole-life.
5.Q:What delivery term do you support?
A:For sea shipping,we can do the term EXW,FOB,CFR,CIF,DDU and DDP.
For courier service,we can delivery by DHL TNT,FEDEX,EMS and etc....
Please for more information directly contact us we will give you the best option.
