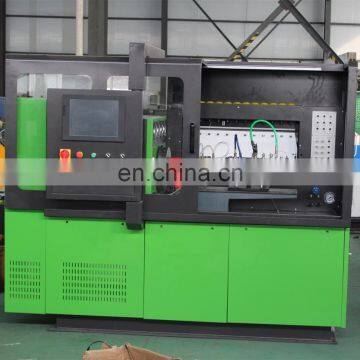

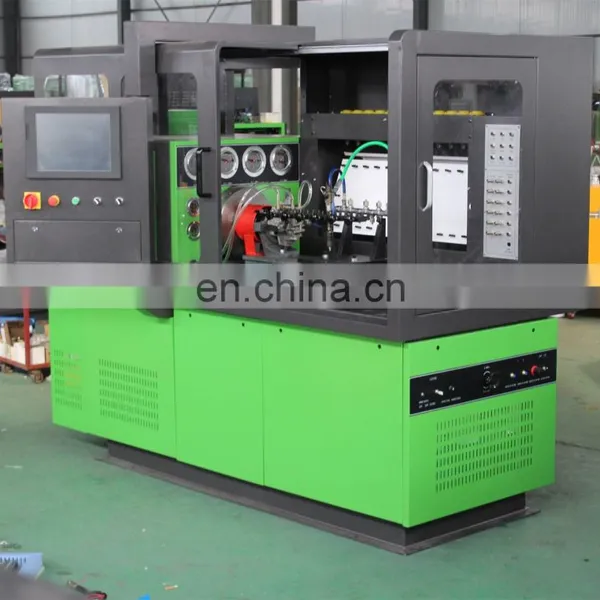

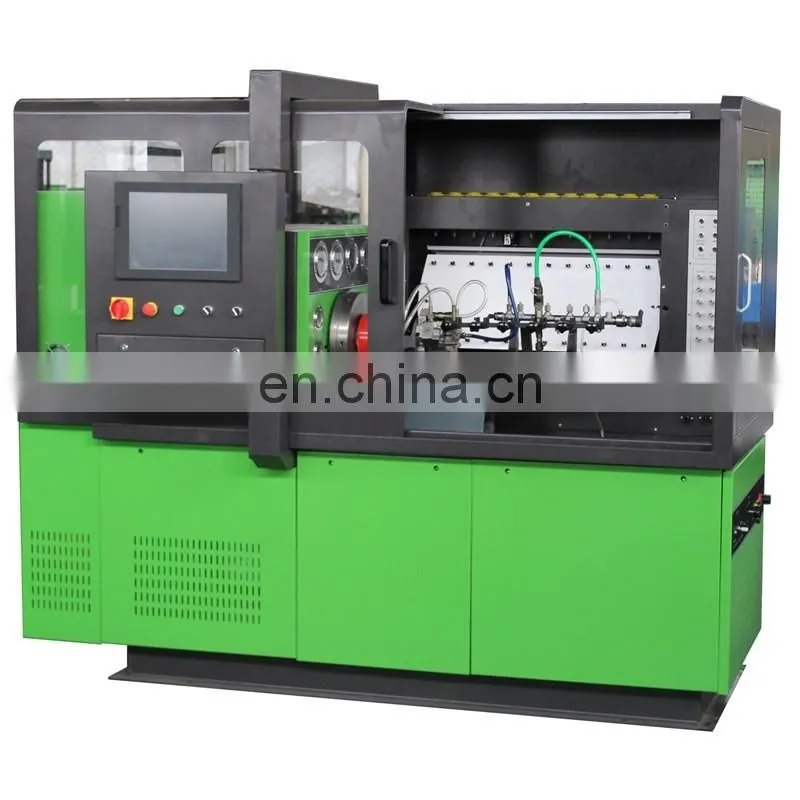

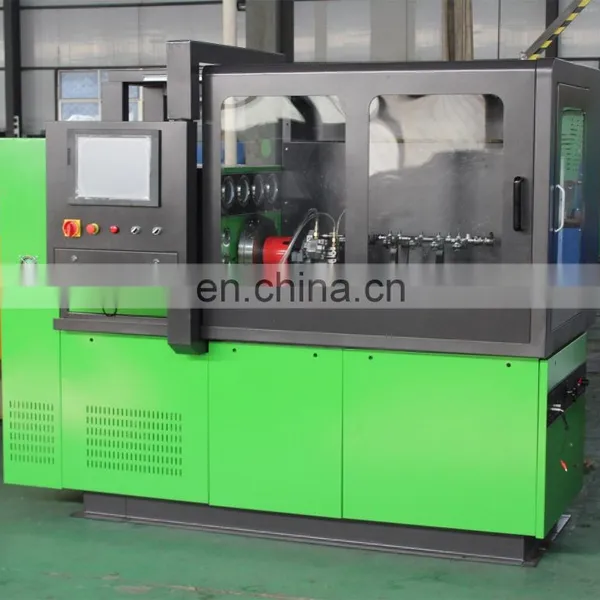

PRODUCT PICTURES
| BCS815A Common rail HEUI injector pump test bench | |
| Model Number | BCS815A |
| Power | Electronic |
| Usage | Auto Testing Machine |
| Type | Diesel injector pump test equipment |
| Color | Depend on your request |
| Weight | 1700kg |
| Size | 2250*1400*2120mm,7.2CBM |
| Warranty | One year for free and offer technical support all life |
| Power supply | 11KW |
Specifications:
1.Motor power:7.5KW, 11KW, 15KW, 18.5KW, 22KW
2.Industrial PC with touch screen
3.Compressor cooling
4.Oil tank(including heating,refrigeration,liquid level detection,temperature detection)
5.Diesel tank(including heating,refrigeration,liquid level detection,temperature detection)
6.Flow meter(German ZDM) detecting the fuel injection flow rate
7.Flow meter(German ZDM) detection of common rail pump
8.Flow meter(German KRACHT) to detect oil flow
9.Flow meter(German KRACHT) detection of diesel oil return flow
10.2sets of B-OSCH common rail +DRV
11.Oil tank temperature sensor
12.Diesel fuel tank temperature sensor
13.Diesel supply temperature sensor
14.Diesel return temperature sensor
15.Oil pressure sensor
16.Diesel supply pressure sensor
17.Diesel return pressure sensor
18.Diesel pump internal pressure sensor
19.Oil pressure closed loop control module
20.The device is convenient to move and position the roller
21. Adjustable cylinders numbers: 12
22. RPM:0-4000
23. Support RPM Pre-set.
24. Temperature control system.
25. Positive Pressure System.
26. Negative Pressure System.
27. Air Supply
28. DC Power supply.
29. Internal Pressure of VE Pump
30. Oil return of VE Pump
31. Travel of Tooth Bar (Optional)
32. Oil Lubricate. (Optional)
33. Capability with Pump Type: All in-line and Rotary Pump .

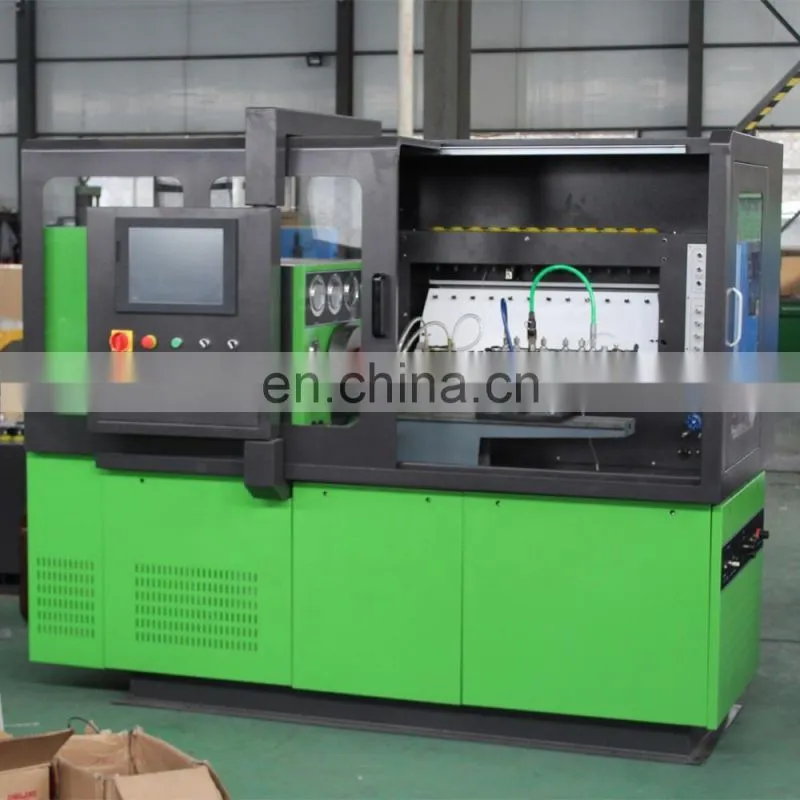

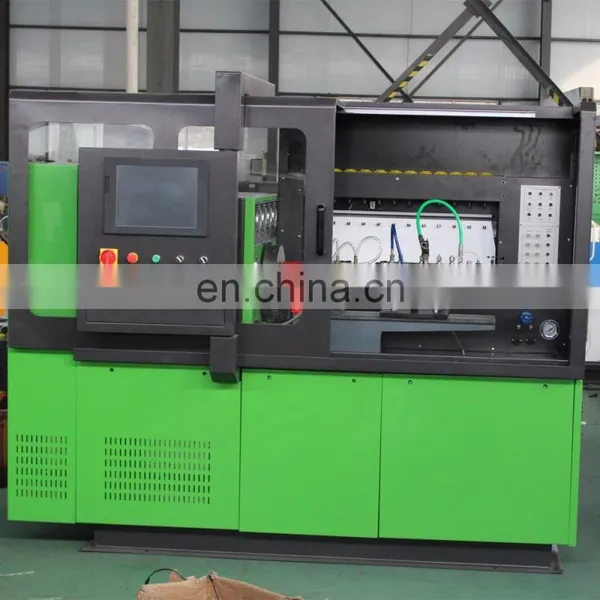

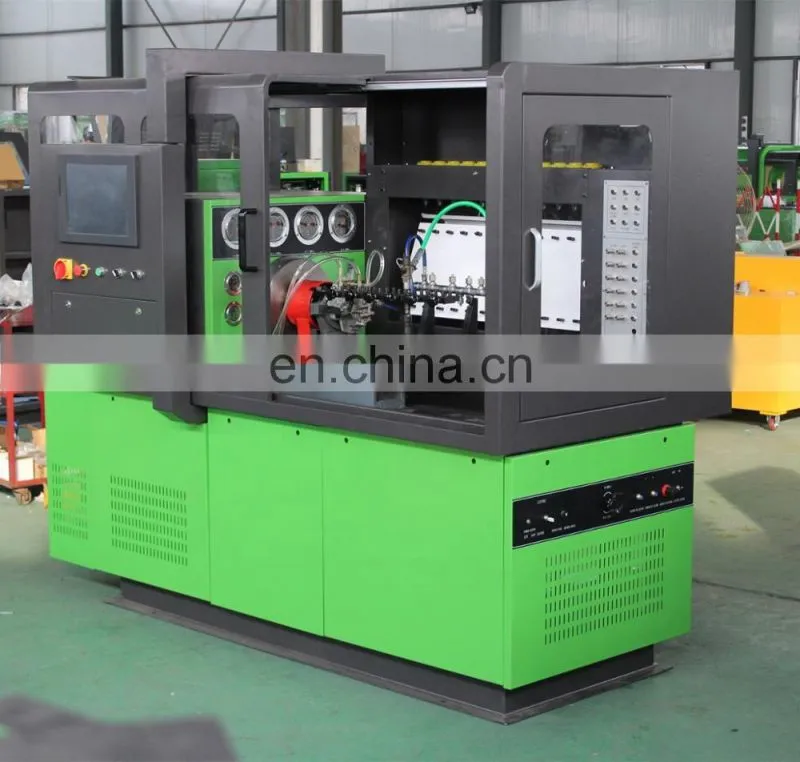

PRODUCT PICTURES
BCS815A functions:
1.Test all the manufacturers of common rail injector
2.Test all the manufacturers of piezo injector
3.Test all the manufacturers of common rail pump
4.Test DENSO HP0 pump
5.Test CAT common rail (HEUI) injector
6.Test CAT common rail (HEUI) engine oil pump
7.Test CAT 320D common rail pump (the world’s first successful development)
8.Test EUI/EUP (can adjust the lift but not to change the camshaft)
9.Test VP44 VE VP37 pump
10.Test RED3 RED4 TICS ZEXEL electronic control pump
11.Drive circuit board(solenoid valve electrical parameters to enhance the voltage, current,time,pull in voltage ,current,time,keep voltage ,current,time,according to the setting of parameters of production factory)
12.Accept the speed sensor ,encode signal,high speed solenoid valve drive signal.Accept the speed sensor ,encoder signal,output 2 PWM drive signal, 2 way solenoid valve drive signal,1 high speed solenoid valve drive signal.
Driving signal waveform can be programmed.
PACKAGING AND TRANSPORTATION
|
|
|
ABOUT US
CUSTOMER VISIT

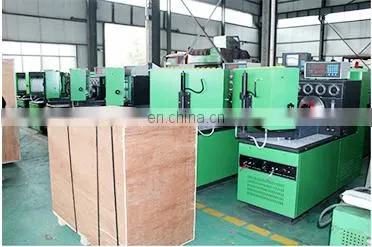

STORAGE
FAQ
1.Q: Are you trading company or manufacturer ?
A: We are manufacrurer of common rail test bench that from Shandong province.
2.Q:How can i start the order?
A:STEP1,please let us know what model do you interest and quantity you need;
STEP2,then we will make a PI for you to confirm all the order details;
STEP3,after you confirmed all the details,then you can arrange the payment;
STEP4,after we received the payment we will start the production and delivery for you.
3.Q:What is the delivery time?
A:It depend on what kind of product do you need,if you need a small tester or the spare parts, about 2-3 work days.
For big product such as test bench or balancing machine takes about 7-10 work days.
4.Q:What is the payment term?
A:We support TT/ WEST UNION/LC/ MONEY GRAM / ALIBABA TRADE ASSURANCE.
30% payment in advance,70% balance before we start shipment.
5.Q: what is your after sale service?
A: One year warranty for our product, whole life technical support whole-life.
6.Q:What delivery term do you support?
A:For sea shipping,we can do the term EXW,FOB,CFR,CIF,DDU and DDP.
For courier service,we can delivery by DHL TNT,FEDEX,EMS and etc....
For more informations please directly contact with us,we will give you the best option.
