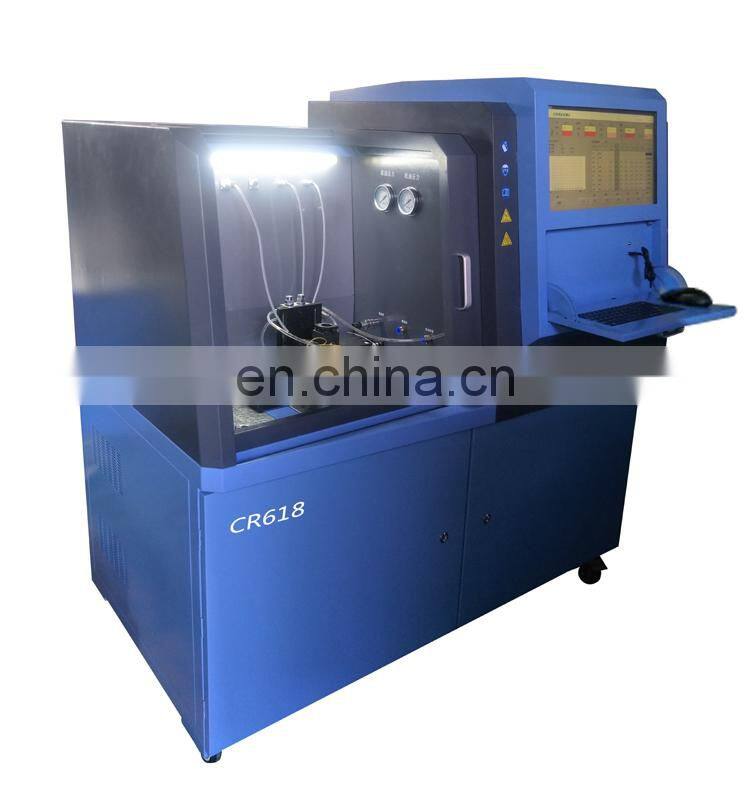

CR618 HEUI PIEZO CR Common Rail Injector Test Bench
>>> Introduction:
CR618 is a new style common rail test bench that is applicable for HEUI injector,all CR injectors ,Piezo injector and all HEUI injectors.
It is also an economic choice with its low price and high quality for customers.
--BOSCH CP3.3 common rail pump
--BOSCH original common rail +DRV
--Common rail system motor Power 5.5KW
--HEUI drive power:3KW
--Oil system pressure automatic adjustment system
--Diesel tan(heating,cooling,liquid level, temperature sensor, temperature security)
--Oil tank(heating,cooling,liquid level,temperature sensor)
--Industrial PC(with touch screen,built-in WIFI remote training,service,upgrade)
--Flow meter(German ZDM) injector flow sensor
--Flow meter(German KRACHT) oil flow sensor
--Drive circuit board(solenoid valve electric parameters:to enhance the voltage,current,time,pull in voltage,current,time,
keep voltage,current,time,according to the setting of the parameters of production factory.

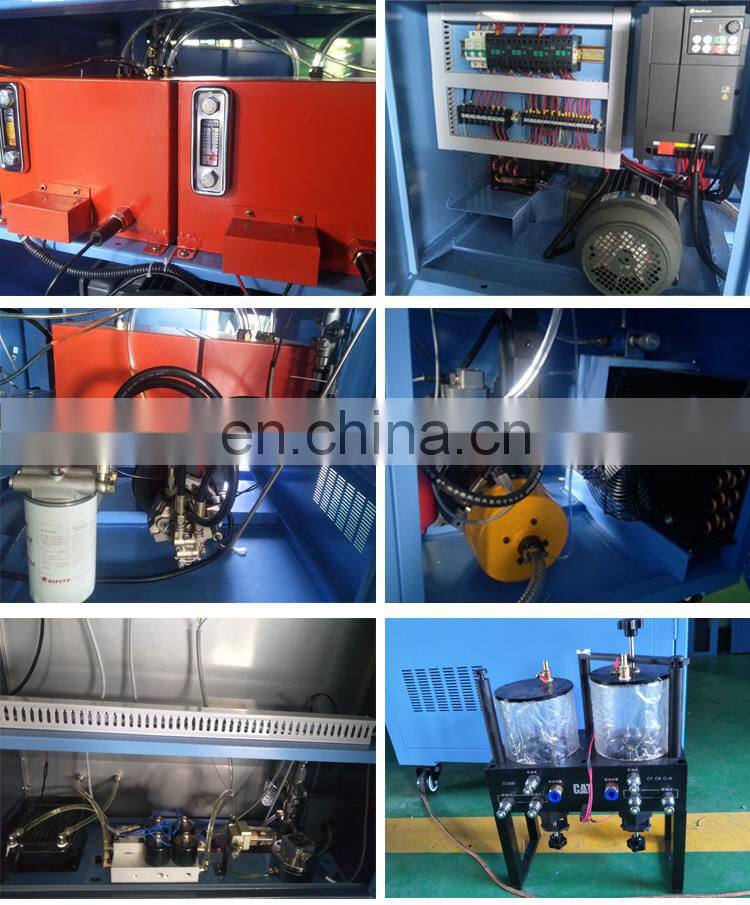

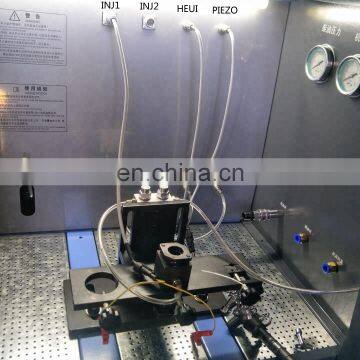

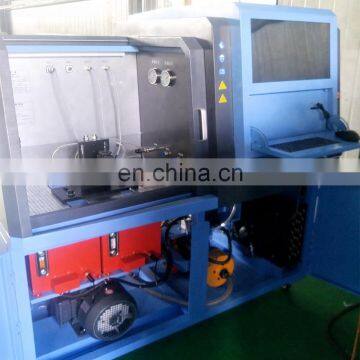

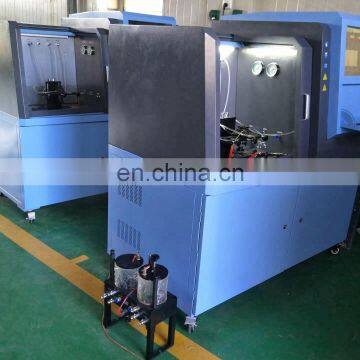

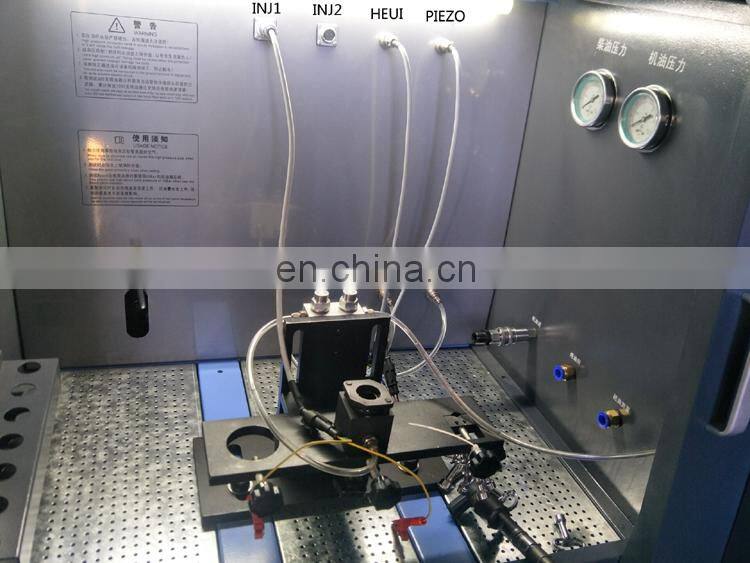

>>>Product detail
>>>Function:
Test all the common rail injectors of all brands
Test all the piezo injectors of all brands
Test CAT HEUI (Oil common rail) injector
Test all of the common rail pump with ZME*
Test DENSO HP0 pump*
Test CAT HEUI engine oil pump*
Test CAT 320D common rail pump*
Test EUI EUP*
( function with * : need an additional mechanical test bench to realize the function.)
Leak testing:
1. Oil static condition leakage testing
2. Fuel static condition leakage testing
3. Oil flow-back under dynamic condition testing
Injection testing:
1. VL testing (Max injection)
2. TL testing (Middle speed)
3. LL testing (Idle speed)
4. VE testing (Pre-injection)
5. Starting testing
6. Oil flow-back under dynamic condition testing
>>>Testing range:
Testing range |
Options |
Bosch IQA coding |
Oil flow-back self testing |
With all functions of CR300 and CR305 |
Oil actuating response time testing |
Inbuilt with reliable actuated pump |
Fuel injection response time testing |
Oil pressure flexible adjustment through automatic or manual ways |
Solenoid resistance & inductance testing |
Solenoid pull-up time testing |
|
Dynamic condition internal leakage testing |
|
>>>Technical Parameter:
Main power |
380V AC / 220V AC |
Temperature control |
Heating / Force-air cooling |
Phase |
Three / Single |
Temperature setting |
40°C |
Frequency |
50Hz/60Hz |
Ambient Temperature |
< 35 °C |
Current |
30A(MAX) |
Max rail pressure |
180MPa - 240MPa |
Motor Power |
5.5 / 2.2Kw |
Max oil pressure |
25Mpa |
Control circuit voltage |
DC12V / DC24V |
Weight |
350KG |
ECU internal voltage |
0-200V DC(MAX) |
Net Dimension |
(H*W*L)141*85*120cm |
Fuel tank volume |
19L |
Packing Dimension |
(H*W*L)150*95*130cm |
Noise level |
< 85 |
>>>Certification: CE ISO

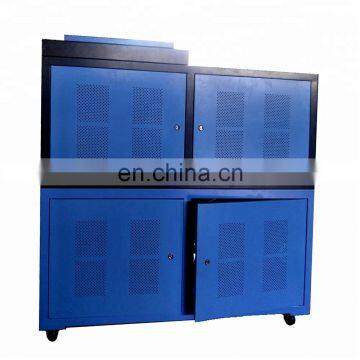

>>>Packing:
>>>Service & Technical support:
Warranty: 1 year for free, technical support for life.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
>>>Our company:
Shandong LGC Machine Technology Co.,Ltd is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers.
Our main product include:
Common rail injector test bench
Common rail injector tester (CRDI)
Diesel injection pump test bench EUI/EUP tester cam box
Denso ECD-V3 ,V4, V5 pump tester
PT cummins pump and injector tester
Common rail tools and spare part
Welcome to visit our factory and cooperate in the future.
