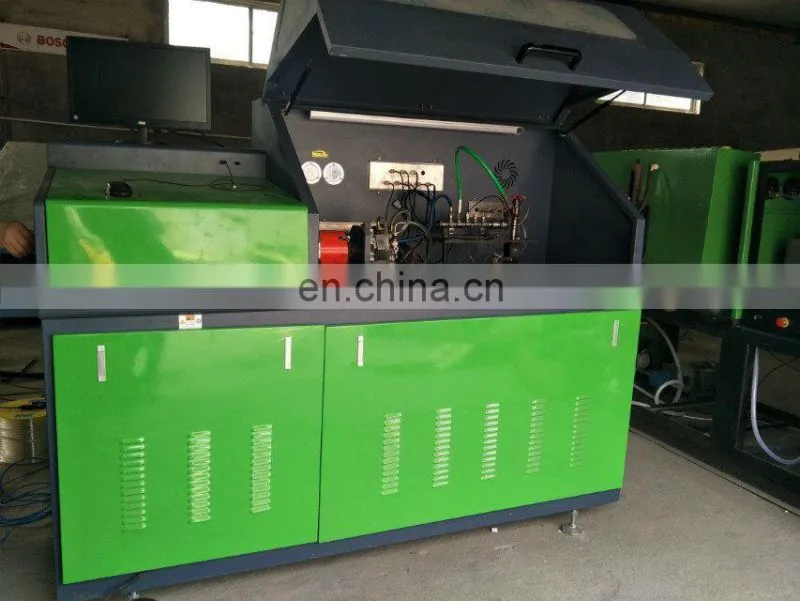

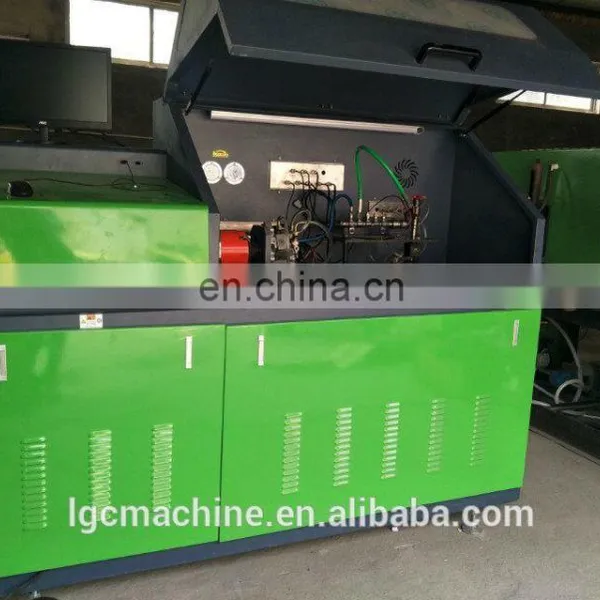

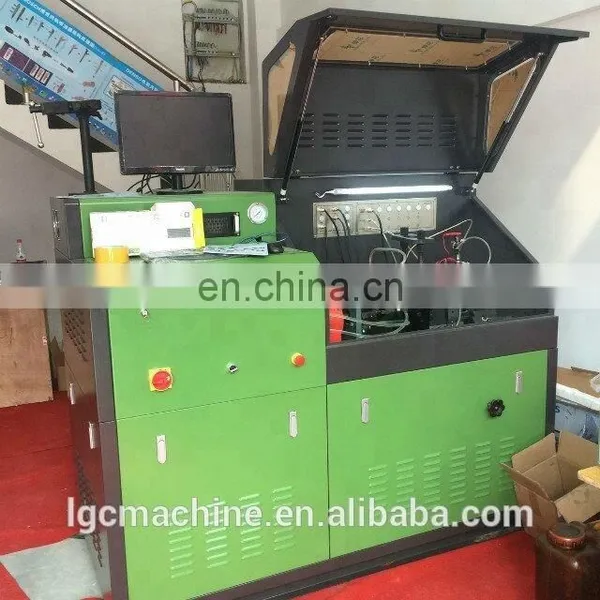

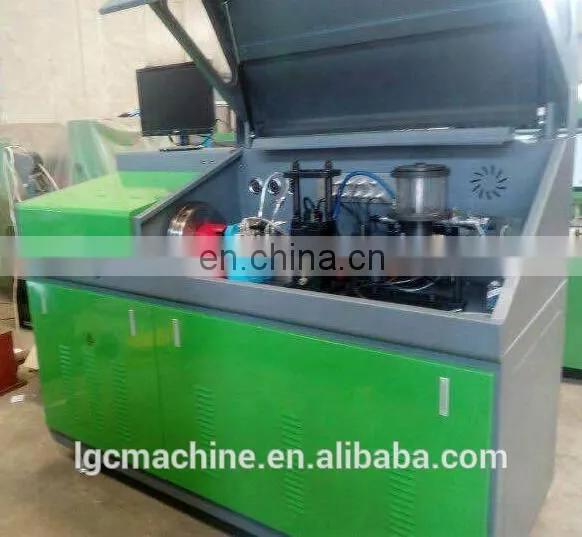

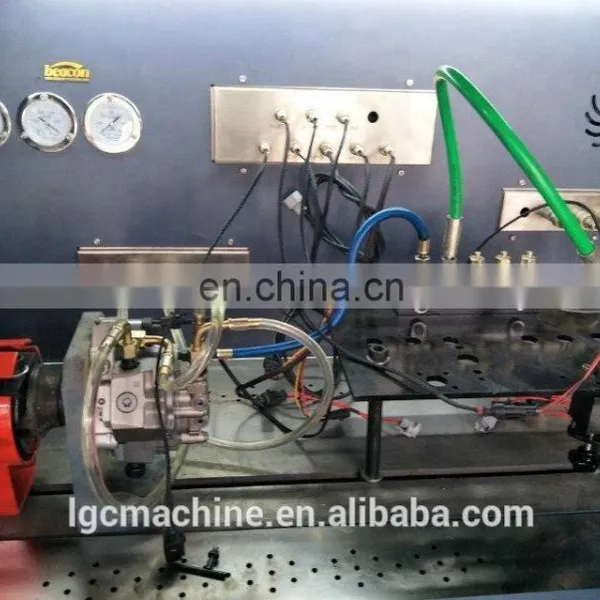

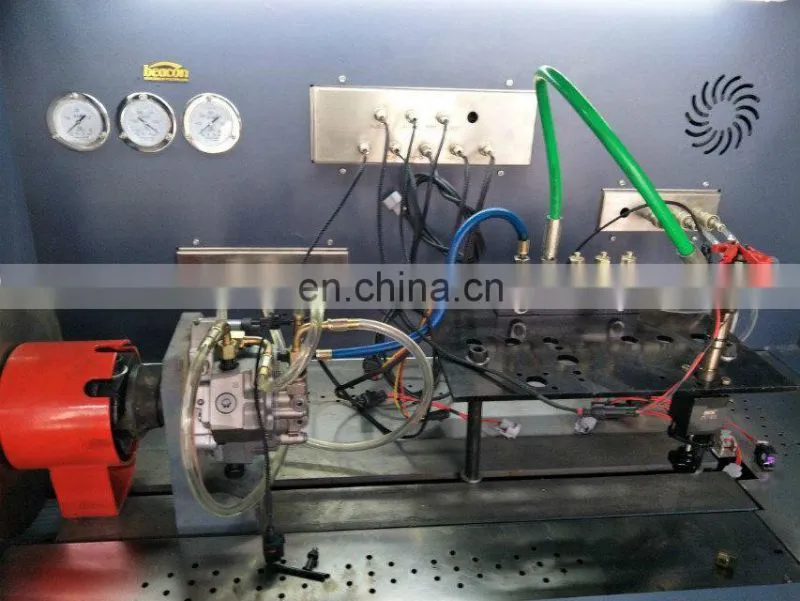

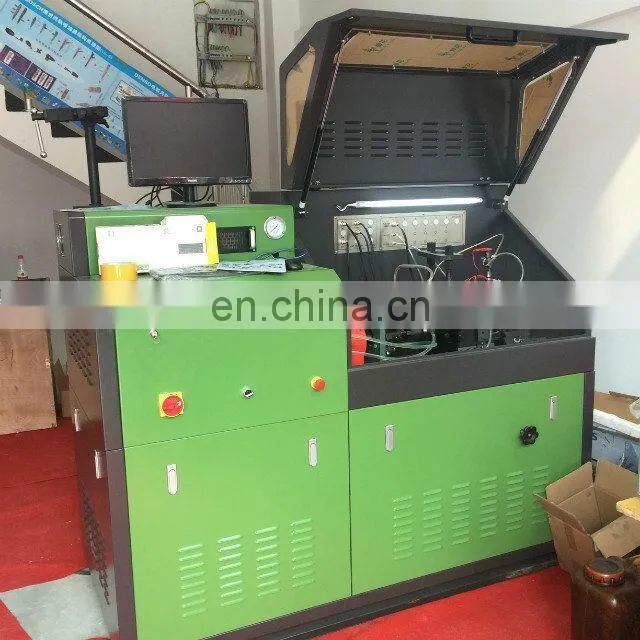

LGC816 EUI EUP common rail diesel fuel injector pump test bench
LGC816 COMMON RAIL TEST BENCH is mainly test for common rail pump and Injector. Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured Value.
1. System Application:
The system is suitable for detection of BOSCH, DENSO, DELPHI and
SIEMENS common rail pump and injectors. Such as CP1, CP2.CP3, HP3 series injector pump and the type of Electromagnetic injectors.
2. Technical parameters
1, Main motor speed |
0-4000 r / min can be adjustable. |
2, Motor power |
7.5KW, 11KW, 15KW, 18.5KW optional. |
3, Fuel Injector open voltage Control range |
12V, 80V, 150V Control accuracy: phase adjustment |
4, Injector opening frequency Control |
0-1000HZ Control accuracy: 1HZ |
5, Fuel Injector Hold Time Control |
0-65535us |
|
6 Delivery Oil CountControl Control accuracy |
0-1000 times 1 times |
|
7, Fuel pressure control Control Control accuracy |
0-2000bar 1bar |
8, Electronic power |
3 PHASE 380V or 3 PHASE 220V |

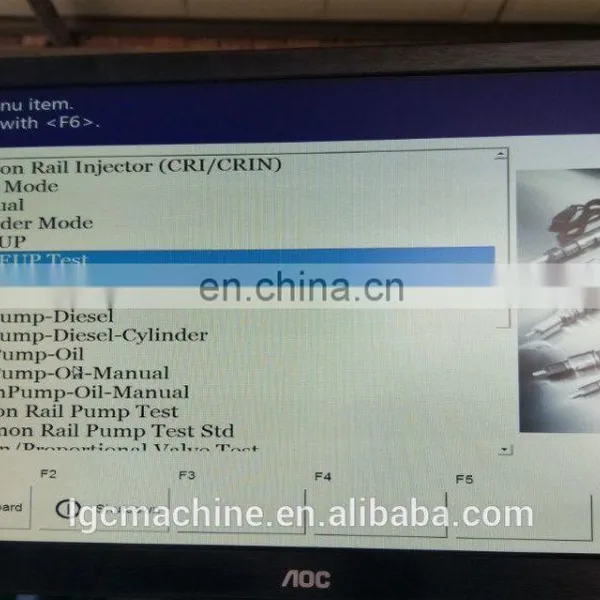

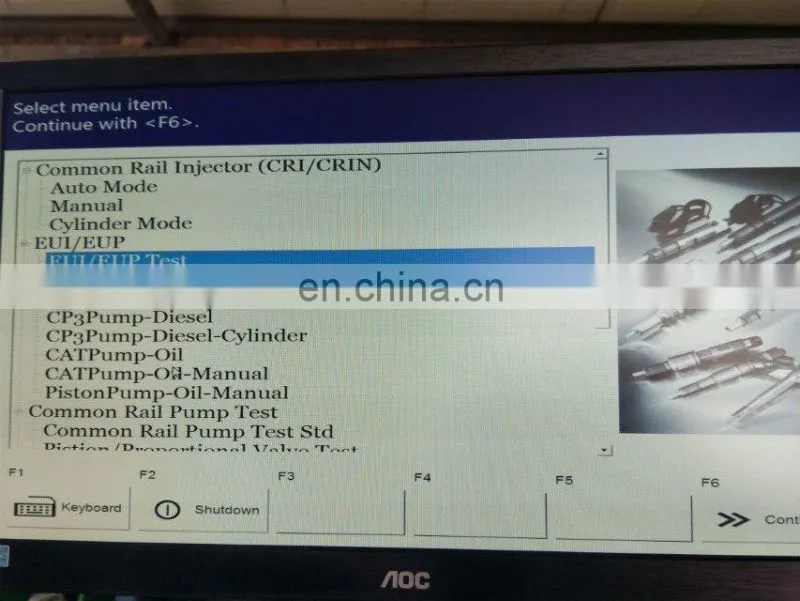

The LGC816 with the EUI EUP and HEUI function
LGC816 with the EUI EUP function
3,Optional function:
1, Test piezo injector function.
2,Test HP0 pump function.
3, With Bosch DRV VALUE
4,Check the pump flow
Shandong LGC Machine Technology Co.,Ltd is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,our products already sold to more than 100 countries . Our products including common rail injector test bench ,common rail injector tester (CRDI), diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,common rail tools and spare part ,Welcome you to visit our factory and cooperate in the future.
1.Q:How can i start the order?
A:STEP1,please let us know what model do you interest and quantity you need;
STEP2,then we will make a PI for you to confirm all the order detail;
STEP3,after you confirmed all the detail,then you can arrange the payment;
STEP4,after we received the payment we will start the production and delivery for you.
2.Q:What is the delivery time?
A:It depend on what kind of product do you need,if you need a small tester or the spare parts,
about 2-3 work days
For big product such as test bench or balancing machine takes about 7-10 work days.
3.Q:What is the payment term?
A:We support TT/ WEST UNION/LC/ MONEY GRAM / ALIBABA TRADE ASSURANCE.
4.Q: what is your after sale service?
A: One year warranty for our product, whole life technical support whole-life.
5.Q:What delivery term do you support?
A:For sea shipping,we can do the term EXW,FOB,CFR,CIF,DDU and DDP.
For courier service,we can delivery by DHL TNT,FEDEX,EMS and etc....
Please for more information directly contact us we will give you the best option.
