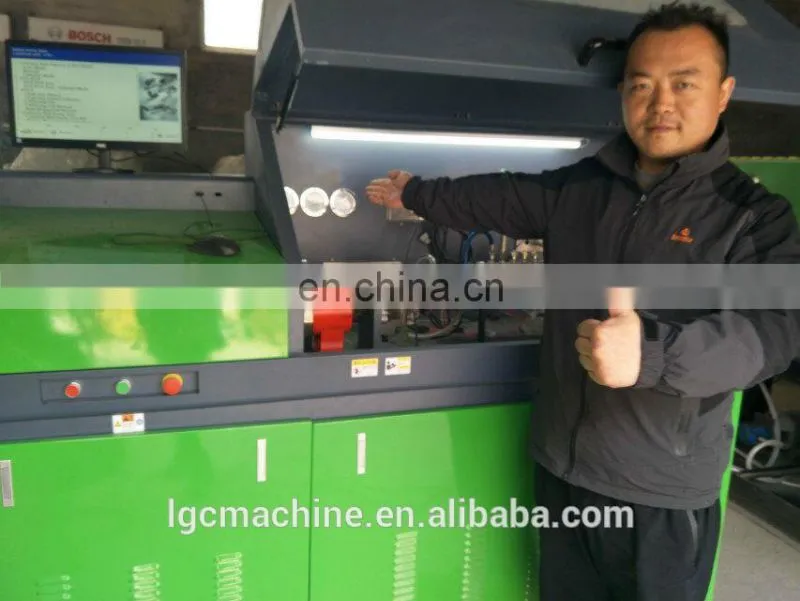

Help Center2500 Bar Multi-function Automobile CRS816 High Pressure Common Rail Diesel Injection Pump Test Bench
Related Products
-
High Pressure Automotive LGC816 Common Rail Diesel Fuel Injection Pump Calibration MachineUS$ 4,000 - 6,500MOQ: 1 Set -
LGC816 German Flow Sensor Common Rail Injector Pump Test BenchUS$ 4,500 - 4,500MOQ: 1 Set
-
CR3000 Common Rail Injector Test Diesel Pump Calibration MachineUS$ 4,300 - 6,000MOQ: 1 Set
-
High Pressure Eps 815 Test Bench Common Rail LGC815 Fuel Injection Pump Calibration Machine Test BenchUS$ 6,000 - 13,000MOQ: 1 Set
-
Automobile Injector Repair Machine CR318 Electrical HEUI Common Rail Diesel Injector Calibration MachineUS$ 4,800 - 5,500MOQ: 1 Set

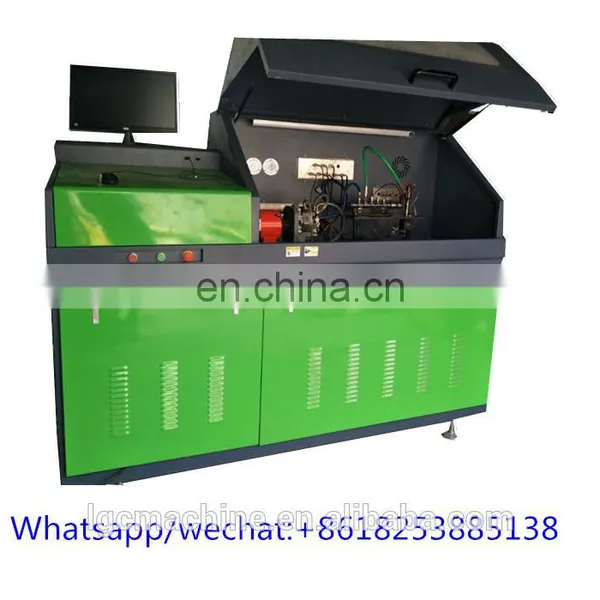

CRS816 Common Rail diesel Injector pump Test bench is mainly test for common rail pump and Injector. Also it is continuous fuel delivery analysis computerised
measuring system for conventional and new diesel injection systems.
The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.
It guarantees a high level of reproductivity of the measured Value.
1. System Application:
The system is suitable for detection of BOSCH, DENSO, DELPHI and
SIEMENS common rail pump and injectors. Such as CP1, CP2.CP3, HP3 series injector pump and the type of Electromagnetic injectors,
It also can test 6 common rail injectors in one time.
2. Technical parameters
1, Main motor speed |
0-4000 r / min can be adjustable. |
2, Motor power |
7.5KW, 11KW, 15KW, 18.5KW optional. |
3, Fuel Injector open voltage Control range |
12V, 80V, 150V Control accuracy: phase adjustment |
4, Injector opening frequency Control |
0-1000HZ Control accuracy: 1HZ |
5, Fuel Injector Hold Time Control |
0-65535us |
|
6 Delivery Oil CountControl Control accuracy |
0-1000 times 1 times |
|
7, Fuel pressure control Control Control accuracy |
0-2000bar 1bar |
8, Electronic power |
3 PHASE 380V or 3 PHASE 220V |
3,Optional function:
1.heui testing function
2.eui eup cambox with all adaptor testing function
3. testing 6 injector in one time function .

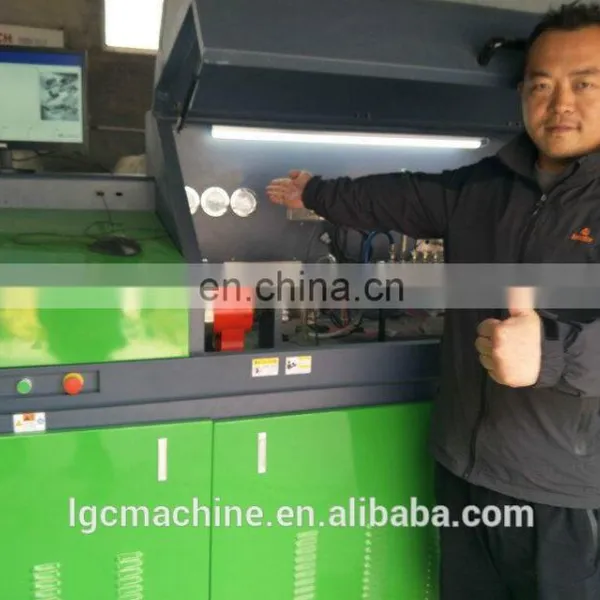

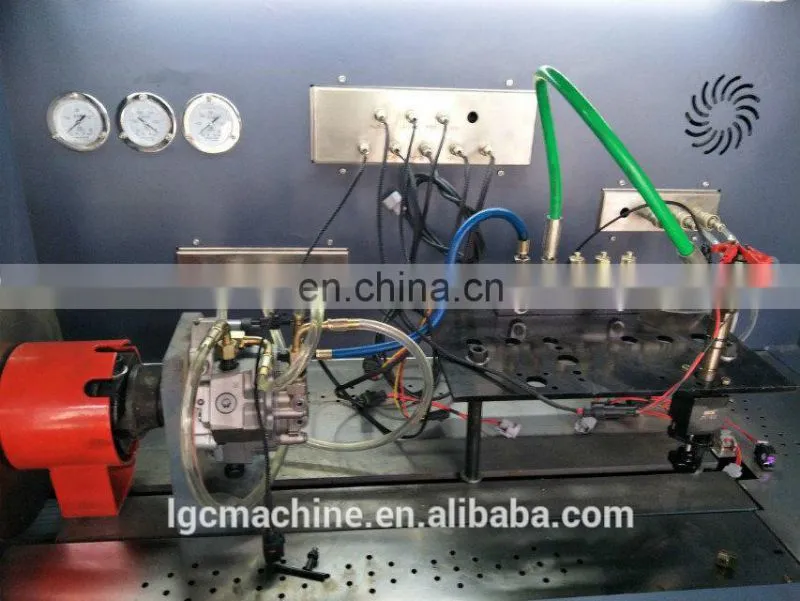

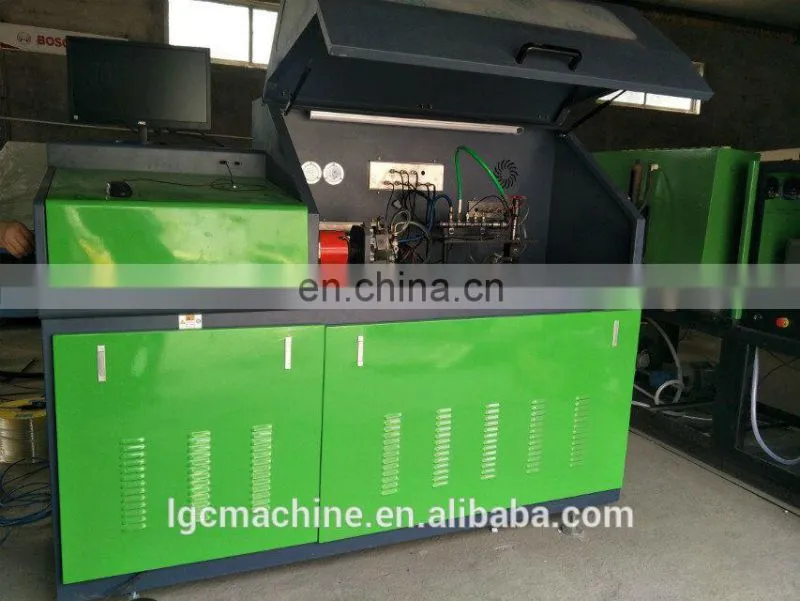

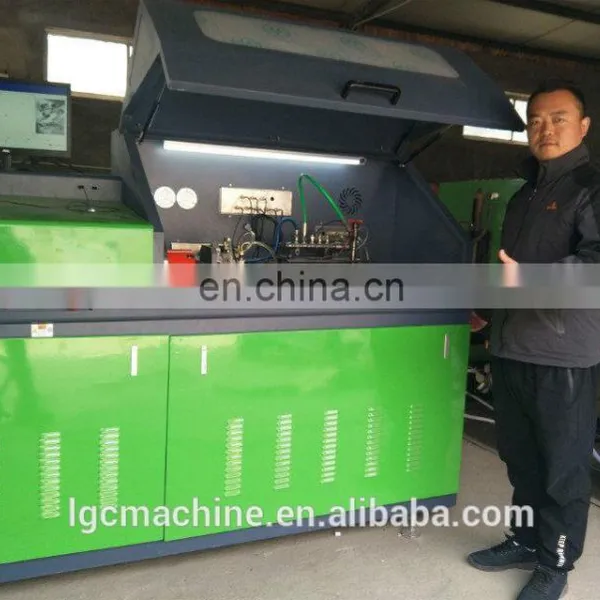

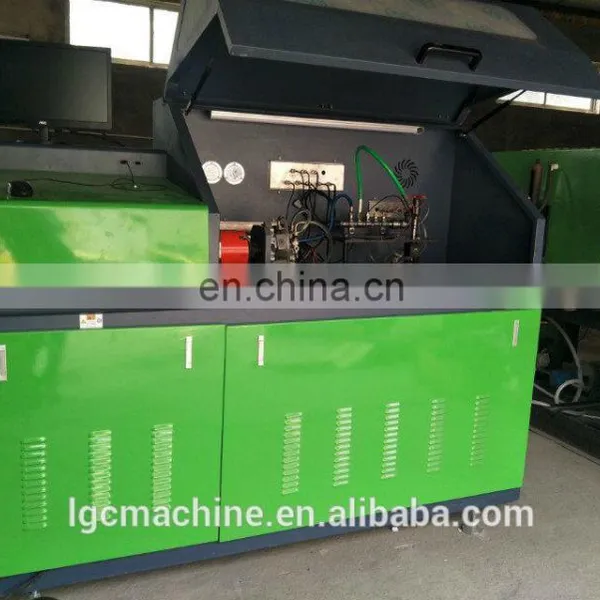

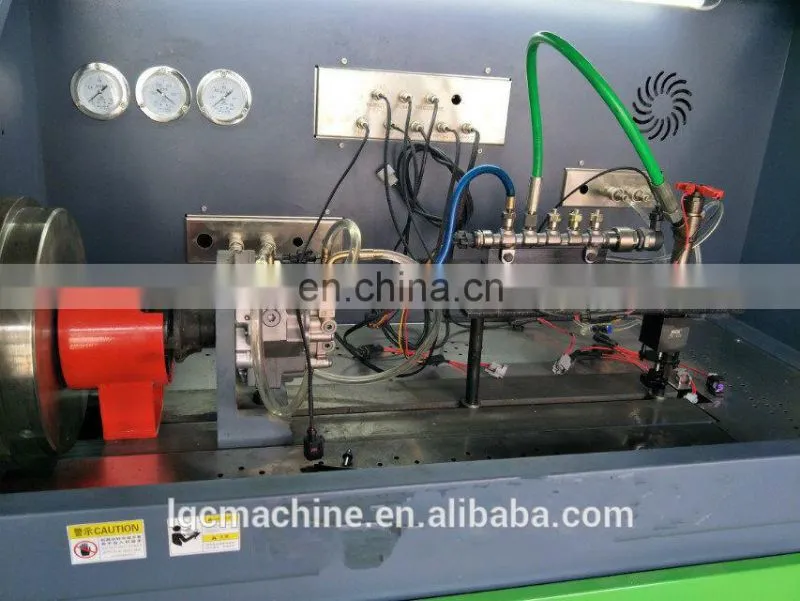

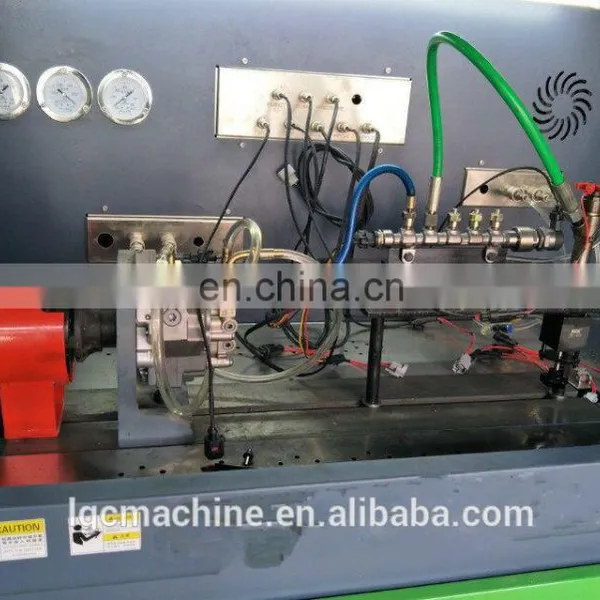

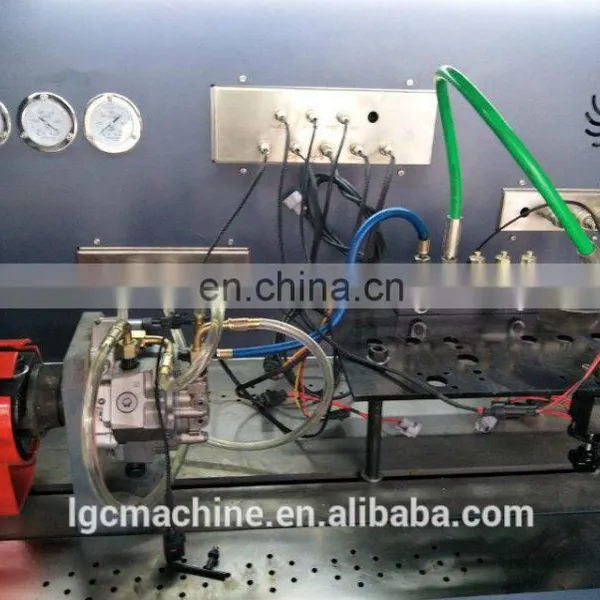

---The details photos
--Accessories
---The certificate
--Our customers
----The related products ,pls point the model number , you will see more details:
|
12 cylinder 12psb test bench
|
EPS200 CR injector test bench | EPT2000 cummins injector test bench | cr825 multi-function test bench | EUI EUP CAMBOX |
|
LGC4000 test bench with computer control
|
LGC205 CR injector test bench | crs4000 CR injector test bench | cr308 HEUI CR injector test bench | vp37 pump tester |
|
PQ1000 CR injector tester
|
CRS-1000 CR injector tester | LGC816 CR injector pump test bench | LGC-CR918 test bench | vp44 pump tester |
| LGC-D3 turbochager balancing machine | PT212 cummins pump test bench | crs709 CR injector pump test bench | crm-100 3 stage tools | HEUI TEST BENCH |
Shandong LGC Machine Technology Co.,Ltd is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,our products already sold to more than 100 countries .
Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,common rail tools and spare part ,
Welcome you to visit our factory and cooperate in the future.
1.Q:How can i start the order?
A:STEP1,please let us know what model do you interest and quantity you need;
STEP2,then we will make a PI for you to confirm all the order detail;
STEP3,after you confirmed all the detail,then you can arrange the payment;
STEP4,after we received the payment we will start the production and delivery for you.
2.Q:What is the delivery time?
A:It depend on what kind of product do you need,if you need a small tester or the spare parts,
about 2-3 work days
For big product such as test bench or balancing machine takes about 7-10 work days.
3.Q:What is the payment term?
A:We support TT/ WEST UNION/LC/ MONEY GRAM / ALIBABA TRADE ASSURANCE.
4.Q: what is your after sale service?
A: One year warranty for our product, whole life technical support whole-life.
5.Q:What delivery term do you support?
A:For sea shipping,we can do the term EXW,FOB,CFR,CIF,DDU and DDP.
For courier service,we can delivery by DHL TNT,FEDEX,EMS and etc....
Please for more information directly contact us we will give you the best option.
