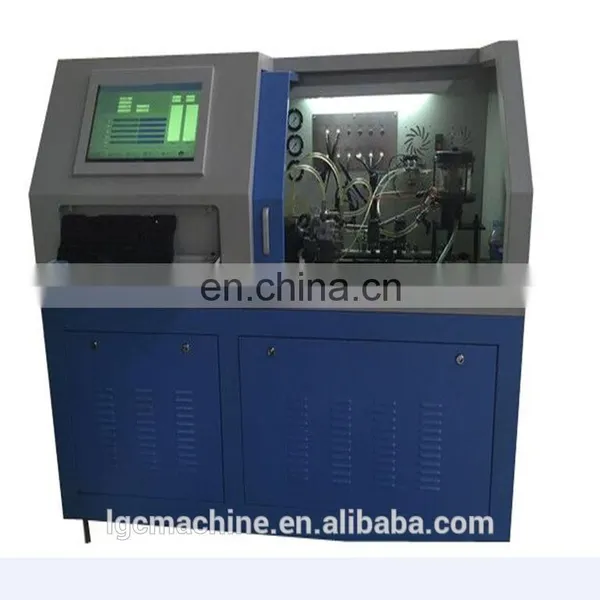

Help CenterAuto Testing Machine CRS719 Common Rail Diesel Fuel Injection Pump Test Bench With Heui Eui Eup
Related Products
-
CR318 Common Rail HEUI Diesel Injector Hydraulic Test BenchUS$ 5,200 - 6,200MOQ: 1 Set -
CR318 Auto Electrical Common Rail HEUI Diesel Injector Test BenchUS$ 4,800 - 5,800MOQ: 1 Set
-
Fuel Injector Test Equipment CRS4000 Low Price Common Rail Diesel Injector Test BenchUS$ 3,000 - 3,800MOQ: 1 Set
-
CR825 HEUI ,EUI EUP Common Rail Diesel Fuel Injector Pump Test BenchUS$ 7,000 - 10,000MOQ: 1 Set
-
Good Price LGC-CR825 Common Rail Injector Fuel Injection Pump Calibration Machine Test BenchUS$ 11,200 - 11,200MOQ: 1 Set
Features：
.Injector Test
1 Wash:high pressure clean the impurity on the internal parts of injector .
2 it could test injector seal, rated, idle, emissions, pre-spray and so on under fuel injection quantity different conditions and oil return
3 Atomization test：through observing the injector spray atomization to determine whether the plug hole.
4 Tightness test：Check nozzle, nozzle cap and tight solenoid valve for leaks.
5 .Automatic detection of different types of solenoid valve injectors，meanwhile it could connect with 6 pieces injector .
6.Automatic detection of different types of piezo injectors，meanwhile it could connect with 6 pieces injector .
Device Configuration:
1. Industrial air conditioning and refrigeration, oil temperature control in 40 ± 2 ℃ ..
2. Equipped with original Bosch common-rail systems, the rail pressure is controlled by the DRV and ZME at ± 0.5Mpa.
3. Equipped with Germany flow sensors, flow range 0.008--4L / min, measurement accuracy of 0.3%.
4. The pump is equipped with original Bosch CP3.3.
5. Compact universal platform, can test six electromagnetic or piezoelectric injectors in one time.
6. The rail pressure range 0-250MPa ,accurate measurement, easy operation, low noise energy saving
7. The main motor power 11KW and 15KW optional.
8. The oil lubrication system. Ensure the reliability of test components.
9. The compressor cooling system using Danfoss products produced SC15CL. Comply with EU EC842 / 2006 fluorine gas law and the EU 2006/40 / EC Directive
the system advantage:

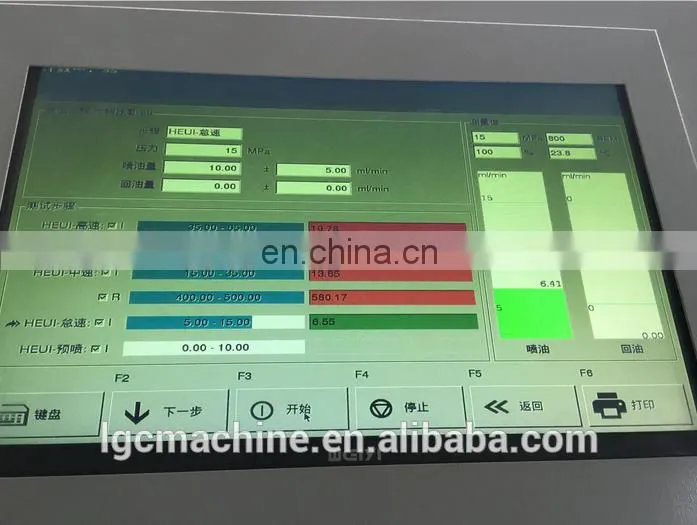

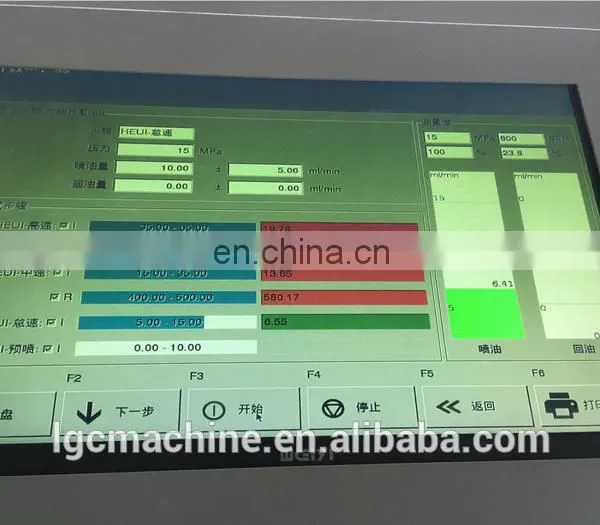

Windows XP system,full automatic working.
embed computer system control,high speed operate,stable performance.
original bosch test database,test result same with bosch.
strong database with over 1700 bosch delphi denso simens injector and pump data.
injector and pump database is respectively management,have memory function,data can be edit,save or change.data can update at regular time.
user can choice single test or multi test,decide to test one injector or six injector at the same time.
user can choice to use computer Automatic judgement or manual judgement.
temperature excursion，oil fog,over pressure,oil position not enough all have the automatic protection,through the signal light.
support chinese,english,german,spanish french,russian..etc multi language support
this machine also support remote monitoring,it is easy for the after sale service and software update.
it can development and customize different app or different product as the users request.
Power supply:
Support 3 phase 4 wires 380v-50hz ; 3 phase 4 wires 220v-60hz ;
2 phase 3 wires 220v-60hz these three type,it will be using for the different country different power supply.
>>>More fucntions (Our advantage):
1. With testing HPO pump functions
2. DRV valve
3. Original bosch rail and original German flow sensor
4 Tesing piezo injector functions
5. Pump flow
>>>OPTION(On request):
1. EUI EUP function
2.HEUI function
3.vp44 testing function
Pls point the model number , you will see more details :
Shandong LGC Machine Technology Co.,Ltd is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,our products already sold to more than 100 countries .
Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,common rail tools and spare part ,
Welcome you to visit our factory and cooperate in the future.
1.Q:How can i start the order?
A:STEP1,please let us know what model do you interest and quantity you need;
STEP2,then we will make a PI for you to confirm all the order detail;
STEP3,after you confirmed all the detail,then you can arrange the payment;
STEP4,after we received the payment we will start the production and delivery for you.
2.Q:What is the delivery time?
A:It depend on what kind of product do you need,if you need a small tester or the spare parts,
about 2-3 work days
For big product such as test bench or balancing machine takes about 7-10 work days.
3.Q:What is the payment term?
A:We support TT/ WEST UNION/LC/ MONEY GRAM / ALIBABA TRADE ASSURANCE.
4.Q: what is your after sale service?
A: One year warranty for our product, whole life technical support whole-life.
5.Q:What delivery term do you support?
A:For sea shipping,we can do the term EXW,FOB,CFR,CIF,DDU and DDP.
For courier service,we can delivery by DHL TNT,FEDEX,EMS and etc....
Please for more information directly contact us we will give you the best option.
