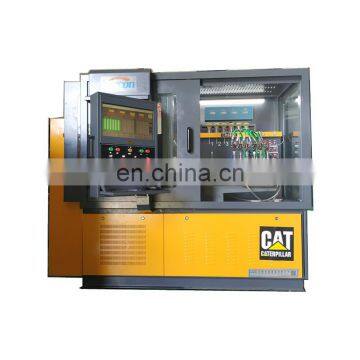

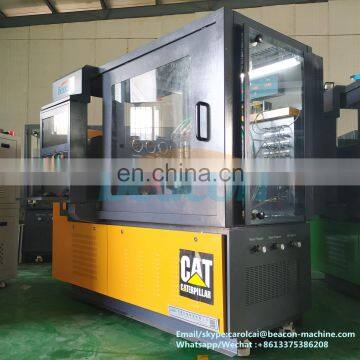

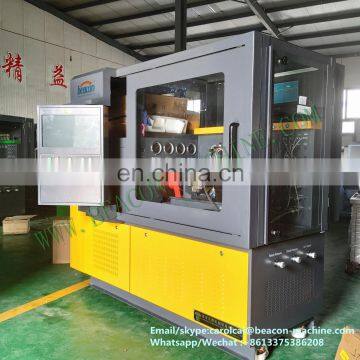

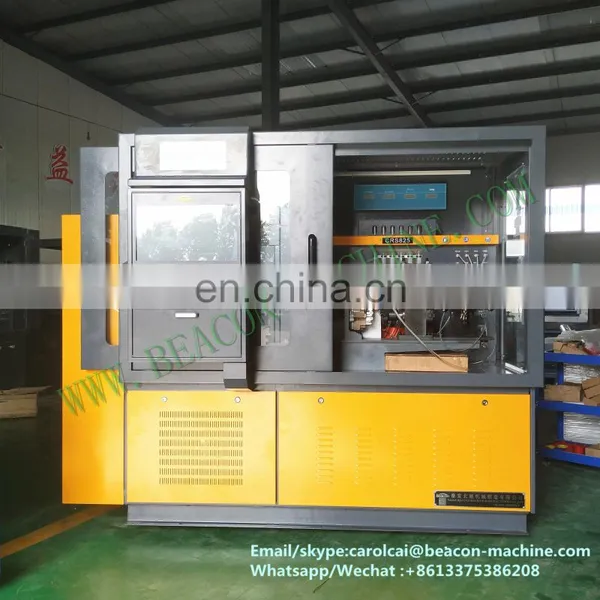

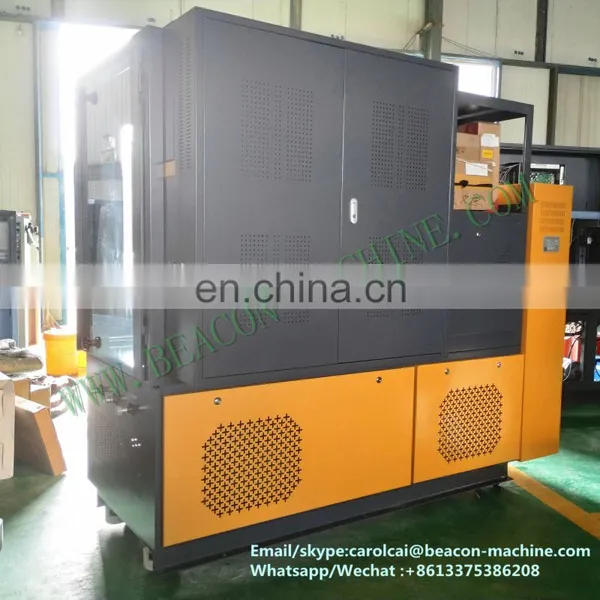

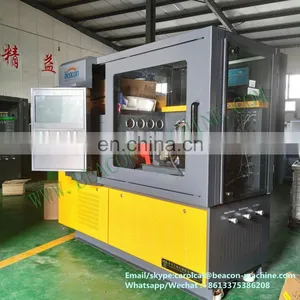

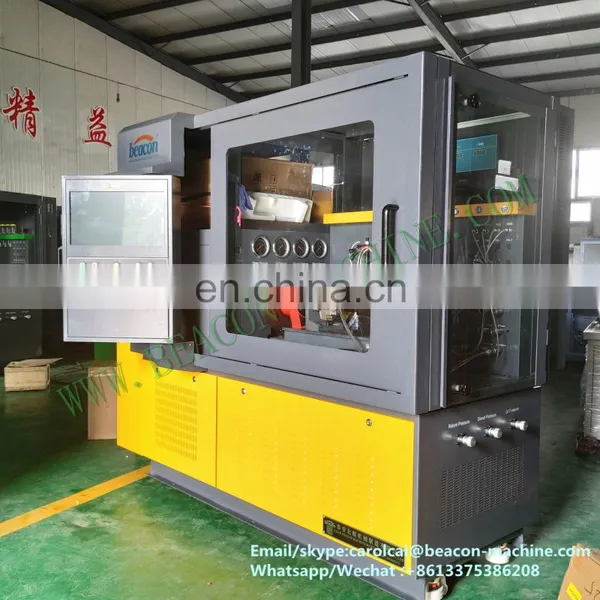

It have two oil tank,engine oil tank and diesel tank,and have test EUIEUP, HEUI caterpillar pump, common rail injector function.
TECHNICAL PARAMETERS | ||||||
Main power | 380V AC 220V AC(Optional） | Phase | Three single（optional） | |||
Frequncy | 50Hz/60Hz | Current | 45A(MAX) | |||
Mian motor | 11KW | Main motor rotation | 0-4000 RPM/MIN | |||
Oil motor HP/ Flow | 0.19KW / 13L/MIN | Diesel motor HP /Flow | 0.19KW / 13L/MIN | |||
Control circuit voltage | DC12V/24V 350W | ECU internal voltage | 0-200V DC（MAX) | |||
Oil tank volume | 30L | Diesel Tank volume | 52L | |||
Temperature control | Heating/Forced cooling | Max rail pressure | 180MPa,240MPa（Optional） | |||
Flowmeter（injection） | 4—550ml/min | Flowmeter（fuel supplying） | 1—400L/H | |||
Flowmeter（fuel flow back） | 1—400L/H | Flowmeter（Oil） | 5—600L/H | |||
Center distance between motor and working bench | 125mm | Weight | 1200KG | |||
Outlook size net | （LXWXH）2250X1260X1920 | Wooden cage | （LXWXH）2350X1500X2100 | |||
FUNCTION CHARACTERISTIC
1.Test all the manufacturers of common rail injector
2.Test all the manufacturers of piezo injector
3.Test all the manufacturers of common rail pump
4.Test DENSO HP0 pump
5.Test CAT common rail (HEUI) injector
6.Test CAT common rail (HEUI) engine oil pump
7.Test CAT 320D common rail pump (the world’s first successful development)
8.Test EUI/EUP (can adjust the lift but not to change the camshaft)
9.Test VP44 VE VP37 pump
10.Test RED4 TICS ZEXEL electronic control pump
11.Drive circuit board(solenold valve electric parameters to enhance the voltage
current,time,pull in voltage ,current,time,keep voltage ,current,time,according to the setting of parameters of production factory)
12.Accept the speed sensor ,encode signal,high speed solenoid valve drive signal.Accept the speed sensor ,encoder signal,output 2 PWM drive signal, 2 way solenoid valve drive signal,1 high speed solenoid valve drive signal.
Driving signal waveform can be programed.
<<Test CAT 30D pump
Test CAT HEUI pump>>
<<Test HEUI injector
Test EUIEUP>>
<<Test common rail injector
Machine accessories:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Welcome you to visit our factory and cooperate in the future.
1.Q:How can i start the order?
A:STEP1,please let us know what model do you interest and quantity you need;
STEP2,then we will make a PI for you to confirm all the order detail;
STEP3,after you confirmed all the detail,then you can arrange the payment;
STEP4,after we received the payment we will start the production and delivery for you.
2.Q:What is the delivery time?
A:It depend on what kind of product do you need,if you need a small tester or the spare parts,
about 2-3 work days
For big product such as test bench or balancing machine takes about 7-10 work days.
3.Q:What is the payment term?
A:We support TT/ WEST UNION/LC/ MONEY GRAM / ALIBABA TRADE ASSURANCE.
4.Q: what is your after sale service?
A: One year warranty for our product, whole life technical support whole-life.
5.Q:What delivery term do you support?
A:For sea shipping,we can do the term EXW,FOB,CFR,CIF,DDU and DDP.
For courier service,we can delivery by DHL TNT,FEDEX,EMS and etc....
