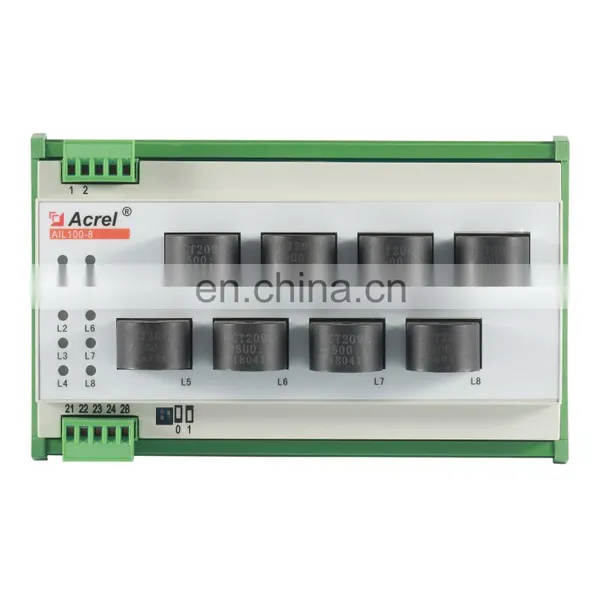

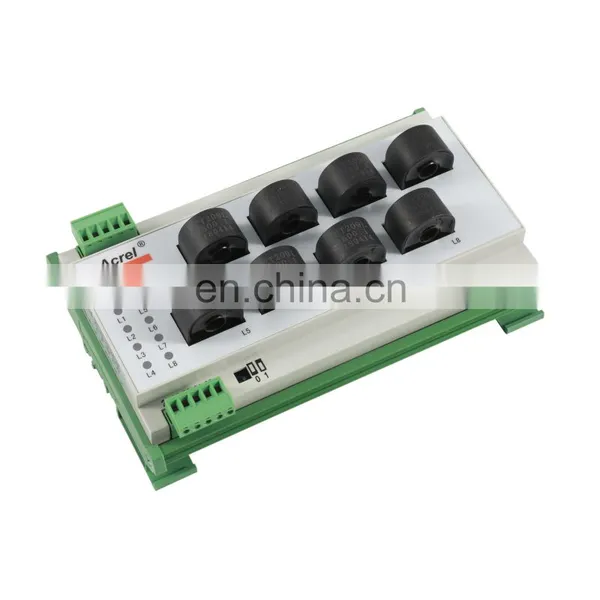

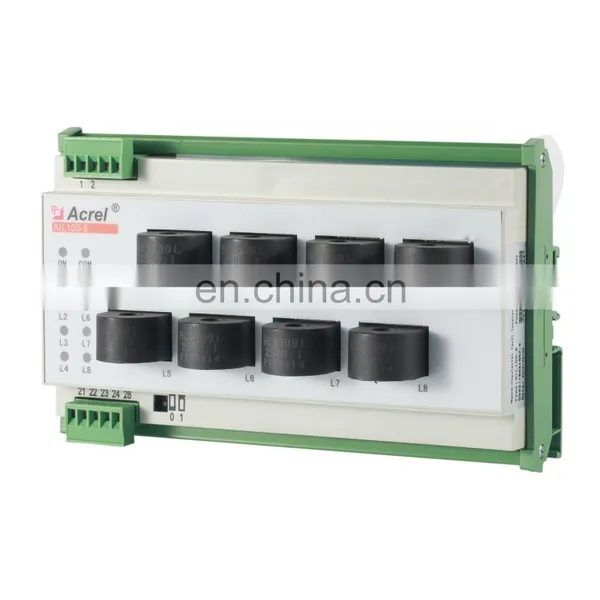

ACREL 300286 AIL100-8 Insulation Fault Locator Used in Medical IT System
US$ 806.4 - 806.4
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
Jiangsu, China
Model Number:
AIL100-8
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ACREL 300286 AIL100-8 Medical IT Insulation Fault Locator Locate the Insulation FaultsUS$ 806.4 - 806.4MOQ: 1 Piece -
ACREL 300286 Insulation Fault Locator for Hospital Medical IT System AIL100-8US$ 806.4 - 806.4MOQ: 1 Piece
-
ACREL 300286 AIL100-8 Medical IT Monitoring System Insulation Fault LocatorUS$ 806.4 - 806.4MOQ: 1 Piece
-
ACREL 300286 AIL100-8 Insulation Fault Locator Applied in Insulation SystemUS$ 806.4 - 806.4MOQ: 1 Piece
-
ACREL 300286 AIL100-8 Insulation Fault Locator Used in Medical IT SystemUS$ 806.4 - 806.4MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
Jiangsu, China
Model Number
AIL100-8
Product Description
Introduction
The medical IT system is mainly used in important Class 2 medical locations such as operating room, ICU/CCU
intensive care unit, providing safe, reliable and continuous power distribution for the important equipment at these
locations. Medical insulation monitoring and fault locating device is developed by the many years’ design experience
of the Acrel Electric in electric power meter industry, according to the special requirements of the insulation
monitoring and fault locating of the power distribution system in Class 2 medical locations. The products can realize
the real-time monitoring of insulation, load and temperature of isolation transformer in IT system, and have the
functions of system insulation fault loop positioning and centralized monitoring by multiple pieces of systems.
Products conform to the provisions of enterprise standard Q31/0114000129C013-2016 IT System Insulation
Monitoring Instrument.
Medical IT system insulation monitoring and fault locating products (seven-piece set) include AITR series
medical isolation transformer, AIM-M200 medical intelligent insulation monitoring instrument, AKH-0.66P26
current transformer, AIL100-4/AIL100-8 insulation fault locator, ASG100 test signal generator, DR-60-24 power
module and AID200 centralized alarm and display instrument, which are shown in Table 1.
2. Technical parameters ofASG100,AIL100-4/AIL100-8 test signal generator
intensive care unit, providing safe, reliable and continuous power distribution for the important equipment at these
locations. Medical insulation monitoring and fault locating device is developed by the many years’ design experience
of the Acrel Electric in electric power meter industry, according to the special requirements of the insulation
monitoring and fault locating of the power distribution system in Class 2 medical locations. The products can realize
the real-time monitoring of insulation, load and temperature of isolation transformer in IT system, and have the
functions of system insulation fault loop positioning and centralized monitoring by multiple pieces of systems.
Products conform to the provisions of enterprise standard Q31/0114000129C013-2016 IT System Insulation
Monitoring Instrument.
Medical IT system insulation monitoring and fault locating products (seven-piece set) include AITR series
medical isolation transformer, AIM-M200 medical intelligent insulation monitoring instrument, AKH-0.66P26
current transformer, AIL100-4/AIL100-8 insulation fault locator, ASG100 test signal generator, DR-60-24 power
module and AID200 centralized alarm and display instrument, which are shown in Table 1.
2. Technical parameters ofASG100,AIL100-4/AIL100-8 test signal generator
Features
1. Insulation fault location in medical IT systems. 2. 4 or 8 channels with measuring current transformer per AIL100.
3. Up to 16 measuring channels can be combined by can bus in one
4. medical IT system.
6. A response time of up to 5 s in medical IT system acc. to IEC61557-9.
3. Up to 16 measuring channels can be combined by can bus in one
4. medical IT system.
6. A response time of up to 5 s in medical IT system acc. to IEC61557-9.
Dimension
Wiring
Typical connection
Technical parameter
Item |
Model |
AIL100-8 |
Power supply |
Voltage |
DC24V |
Power consumption |
≤2VA |
|
Monitored system |
Rated voltage |
AC220V |
rate frequency |
45~60HZ |
|
Locating signals |
locating voltage |
<25V a.c.r.m.s |
locating current |
<1mA r.m.s. |
|
Fault locating |
Maximum circuit |
8 circuits |
Response time |
<2s |
|
Communication |
Mode |
CAN communication |
Protocol |
self-defined protocol |
