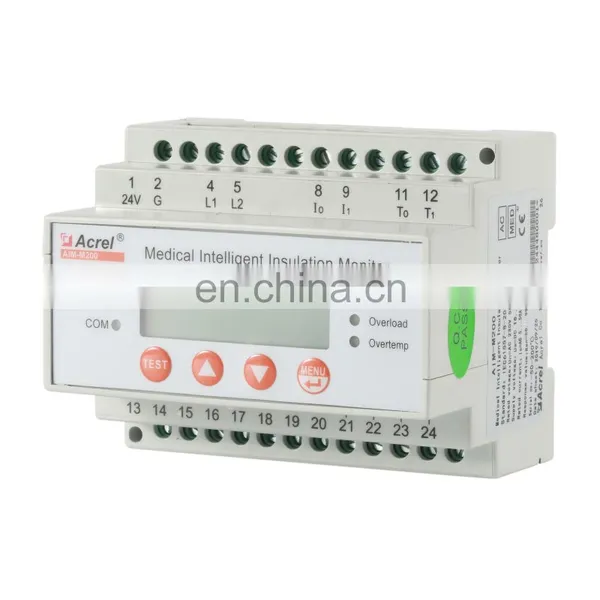

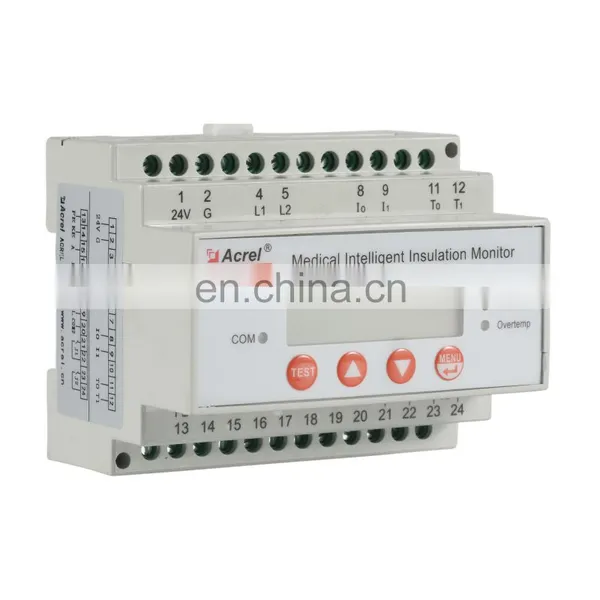

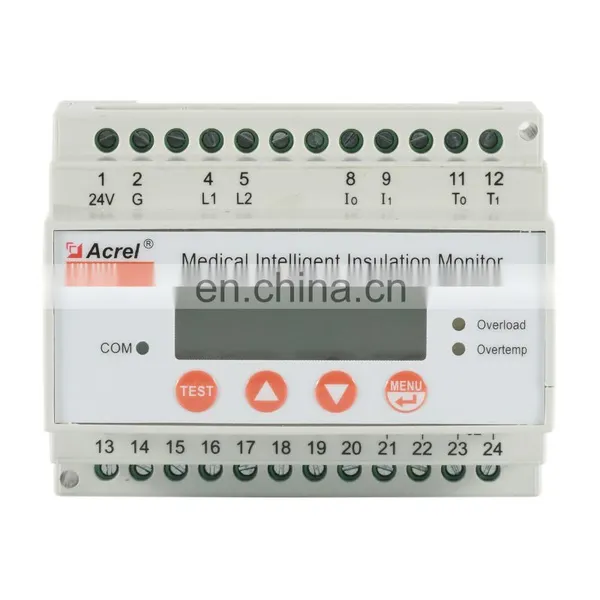

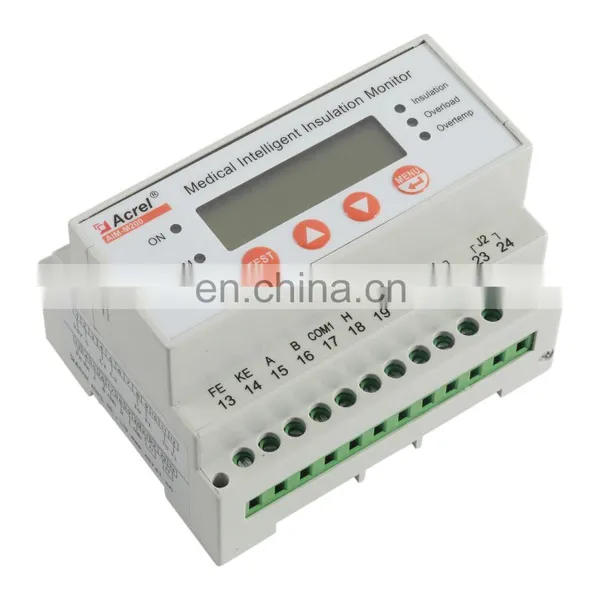

Acrel 300286 AIM-M200 insulation monitoring relay for hospital IPS monitoring system

Name: Acrel 300286 AIM-M200 insulation monitoring relay for hospital IPS monitoring system
Brand: Acrel
Price: USD $2,032.6 - 2,032.6 / Piece

FOB Price

USD $2,032.6 - $2,032.6 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Acrel

Place of Origin:

Jiangsu, China

Model Number:

AIM-M200

Packaging Details

Products are packed in caton box with air bubble film

Product Description

General

The AIM-M200 monitors the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT system transformer is monitored. In combination with ASG100, AIL100 series insulation fault locators and the appropriate measuring
current transformers, the AIM-M200 is designed to support insulation fault location

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Feature

● Insulation monitoring for medical IT systems
● Load and temperature monitoring of isolation transformer
● Device disconnection monitoring
● LED indicators: On, Insulation, Overload, Overtemp
● Alarm relay output
● Test button
● Insulation fault location
● RS485 (MODBUS-RTU) + CAN (custom protocol

Display

Dimension

Wiring

Techinical Parameter

Input voltage	DC 18…36V
Power consumption	≤3VA
Resistance measuring range	10…999kΩ
Response value	50…999kΩ
Relative uncertainty	±10%
Response time	≤3s
Measuring voltage U	≤12V
Measuring current I	≤50uA
Load current monitoring Measuring Value	2.1…50A
Load current monitoring Alarm Value	5…50A
Load current monitoring Measuring accuracy	±5%
