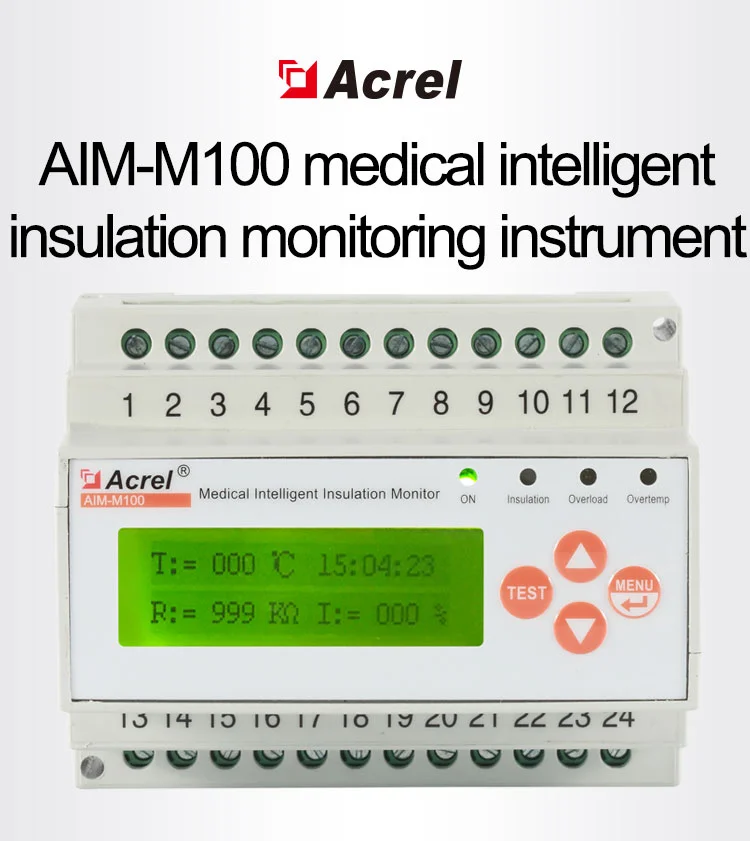

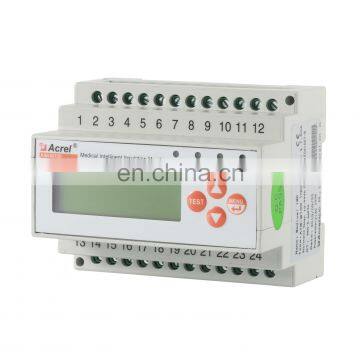

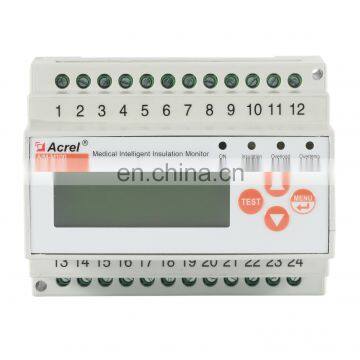

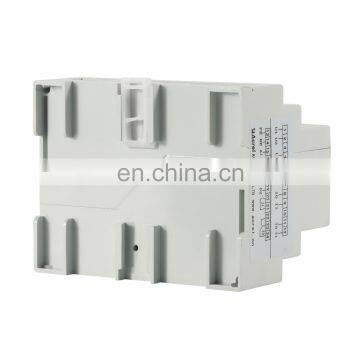

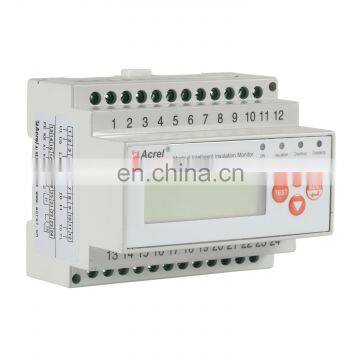

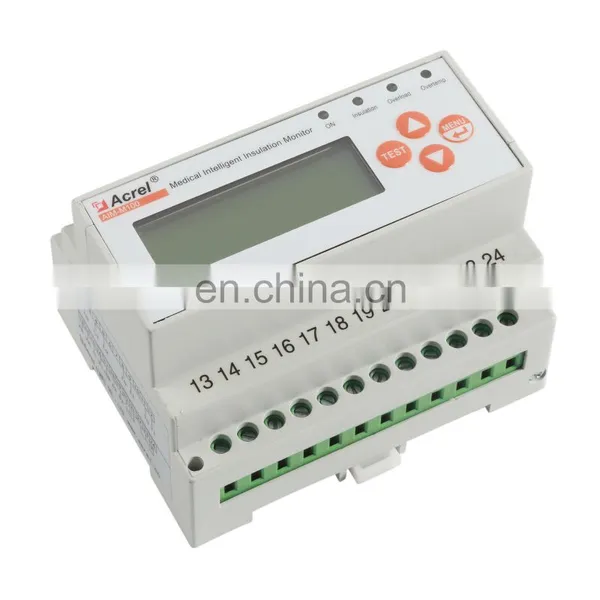

Acrel 300286 Medical IPS Monitoring System Insulation Monitor AIM-M100
US$ 1,617.7 - 1,617.7
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
Jiangsu, China
Model Number:
AIM-M100
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel 300286 Medical IT System Insulation Monitoring Device AIM-M100US$ 1,617.7 - 1,617.7MOQ: 1 Piece -
Acrel 300286 AIM-M200 Medical IT System Used Intelligent Insulation Monitoring RelayUS$ 2,032.6 - 2,032.6MOQ: 1 Piece
-
Acrel 300286 AIM-M200 Hospital IPS Isolated Power Supply Monitoring System Insulation MonitorUS$ 2,032.6 - 2,032.6MOQ: 1 Piece
-
Acrel 300286 AIM-M200 Medical IT Systems AC Current Multifunctional Insulation RelayUS$ 2,032.6 - 2,032.6MOQ: 1 Piece
-
Acrel 300286 AIM-M200 Insulation Monitoring Relay for Hospital IPS Monitoring SystemUS$ 2,032.6 - 2,032.6MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
Jiangsu, China
Model Number
AIM-M100
Operating Temperature
-10~55℃
Dimensions
75*85*108mm
Display Type
Analogue and Digital
Accuracy Class
Class 5
Measuring Range
0-99999
Testing Voltage
AC 220V
Product Description
General
Healthcare OT operating theater isolation power systems / IPS for electrical safety
Medical insulation monitoring device adopts advanced microcontroller technology, which has high integration, compact size,convenient installation and integrates intelligence, digitalization and networking in one. It is ideal selection for insulation monitoring of isolation power system in Class 2 medical locations such as operating room and intensive care unit.
Medical insulation monitoring device adopts advanced microcontroller technology, which has high integration, compact size,convenient installation and integrates intelligence, digitalization and networking in one. It is ideal selection for insulation monitoring of isolation power system in Class 2 medical locations such as operating room and intensive care unit.
Features
* real-time monitoring and fault alarming of the ground insulation resistance,
* transformer load current and transformer winding temperature of the monitored IT system,
* be used with insulation fault locator, remotely starting fault-locating and displaying locating results when there are
insulation faults,
* real-time monitor the line disconnection fault, temperature sensor disconnection fault and the functional grounding line
disconnection fault of the monitored system, and give the alarm indication within 2S after the fault occurs,
* relay alarm output, LED alarm indication and other faults indication functions,
* used for centralized alarm and display instrument, test signal generator, insulation fault locator and upper computer management
software communications, and can monitor the operation status of IT system in real time.
* Events logging function, which can record alarm occurrence time and fault type and is convenient for operation personnel to
analyze the operation conditions of system and promptly eliminate the faults.
* transformer load current and transformer winding temperature of the monitored IT system,
* be used with insulation fault locator, remotely starting fault-locating and displaying locating results when there are
insulation faults,
* real-time monitor the line disconnection fault, temperature sensor disconnection fault and the functional grounding line
disconnection fault of the monitored system, and give the alarm indication within 2S after the fault occurs,
* relay alarm output, LED alarm indication and other faults indication functions,
* used for centralized alarm and display instrument, test signal generator, insulation fault locator and upper computer management
software communications, and can monitor the operation status of IT system in real time.
* Events logging function, which can record alarm occurrence time and fault type and is convenient for operation personnel to
analyze the operation conditions of system and promptly eliminate the faults.

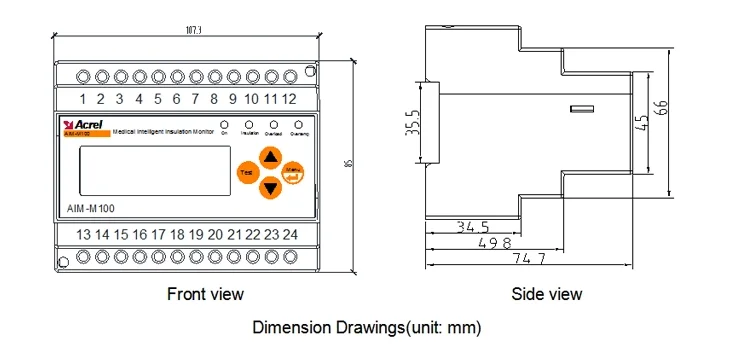

Dimension

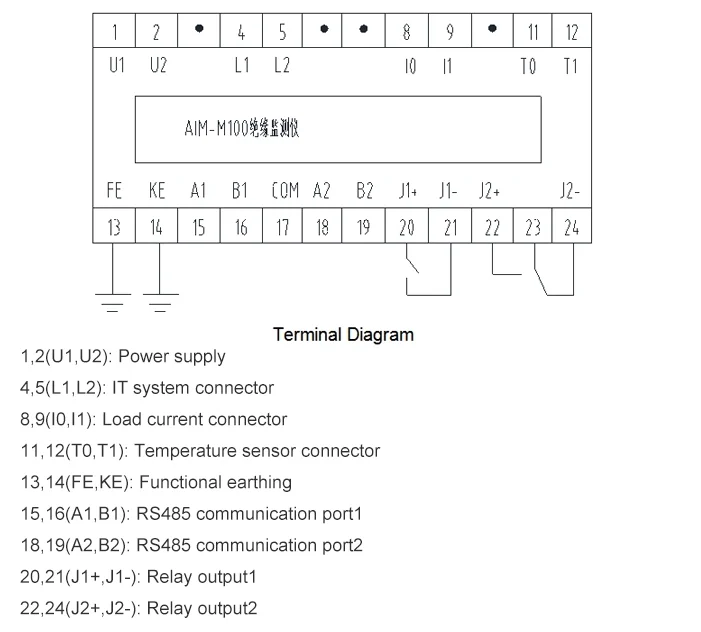

Wiring

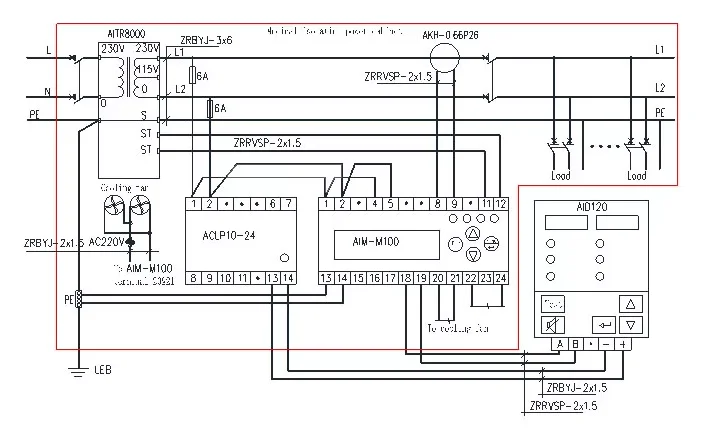

Application
Techinical Parameter
Model | AIM-M100 |
Voltage | AC220V( fluctuation range ±10%) |
Frequency | 50/60Hz |
Max power consumption | <8VA |
Insulation resistance measuring range | 10~999kΩ |
Relative percentage accuracy | 0~±10% |
Alarm value range | 50~999kΩ |
Response time | <2S |
Measuring voltage | <12V |
Measuring current | <50μA |
Measuring range | 2.1~50A |
Alarm value range | 5~50A |
Measuring accuracy | class 5 |
Display | Digital and percentage display |
thermal resistor | PT100 |
Measuring range | -50℃~+200℃' |
Alarm value range | 0℃~+200℃' |
Output type | 2 channel relay output(unable to program) |
Contact rating | AC 250V/3A DC30V/3A |
Working temperature | -10℃~+55℃' |
Storage temperature | -20℃+70℃' |
Relative humidity | 5%~95%,non-condensing |
Altitude | ≤2500m |
