Acrel APV-M8 Series AC Smart Photovoltaic Combiner Box
- 1000 Set / Sets per Month
- T/T Credit Card
- Acrel wall mount 200A APF harmonic Active Power Filter
- Acrel APF 50A harmonic Active Power Filter
- Acrel wall mount 200A APF harmonic Active Power Filter
- Acrel ANAPF 600A harmonic Active Power Filter
- Acrel ARU2-10/385/2P 10KA 385V 2P Surge Protection Device
- Acrel ARU1-10/255/NPE 10kA 255V NPE Surge Protection Device
Product Details
Brand Name: | Acrel | Place of Origin: | Jiangsu, China | Model Number: | APV |
Product Description
1 Summary
In a large photovoltaic power generation system, it is necessary to connect numerous photovoltaic battery packs in the series and parallel combination to reach the required voltage and current value in order to maximize the power generation efficiency. The main purpose of APV series smart photovoltaic combiner box is to conduct the first-stage confluence for the photocell array input which is used to reduce the wiring between photovoltaic battery array and inverter, optimize the system structure, improve the reliability and maintainability. The APV series smart photovoltaic combiner box not only provides lightning protection confluence function, but also provides the function of photocell current measurement, detection for solar panel operation in the photocell array, battery voltage after confluence, the total confluence power, the branch power, acquisition of combiner lightning protector state, acquisition of DC breaker state, the relay contact output, the interface with the air speed, temperature sensor and irradiator etc. available for customer’s option. The device of standard configuration has a RS485 interface which can upload the picked-up data and equipment state to the monitoring system.

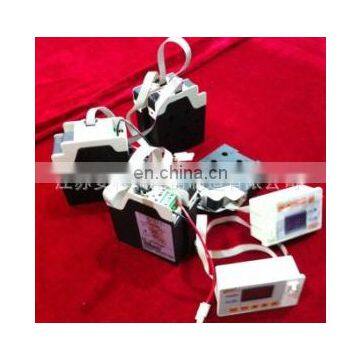

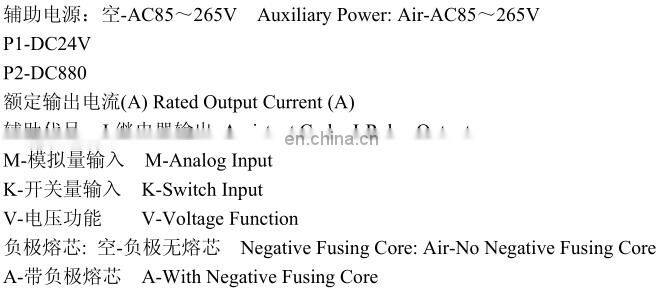

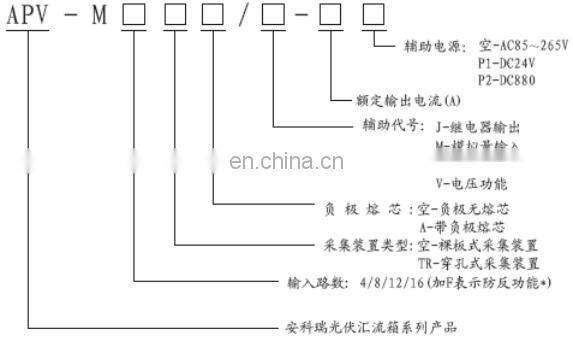

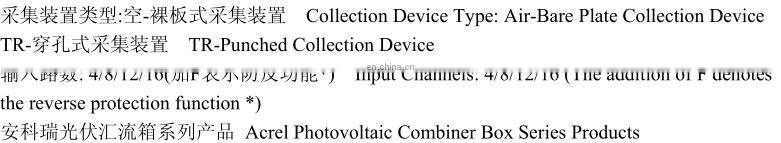

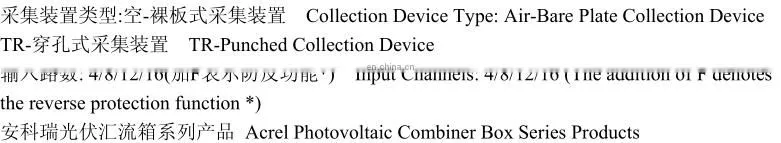

2 Product Designation
*Note: the combiner box with the reverse protection function can only select the TR-punched photovoltaic confluence collection device.
3 Characteristics
Conform to<CGC/GF002: 2010>PV array combiner box specifications
·The waterproof rating is IP65 which meets the in-room and outdoors installation requirements
·The measuring element uses the Hall sensor which measures up to 16 inputs by isolation
·PV breaker which can withstand DC1kV at a selectable fusing current
·The selectable voltage measurement function which can measure maximum voltage of DC 1kV
·The selectable external sensor input interface which can measure the irradiation, temperature and air speed etc.
·Have a RS485 communication port which uses the ModBus-RTU communication protocol
·There are many available power supply modes (DC24V, AC/DC220V and DC880V) which are suitable for the roof solar energy or professional PV power station application
·It can be equipped with the PV DC circuit breaker, PV DC fuse, lightning protector etc from ABB manufacturers of foreign country according to the customer’s demand.

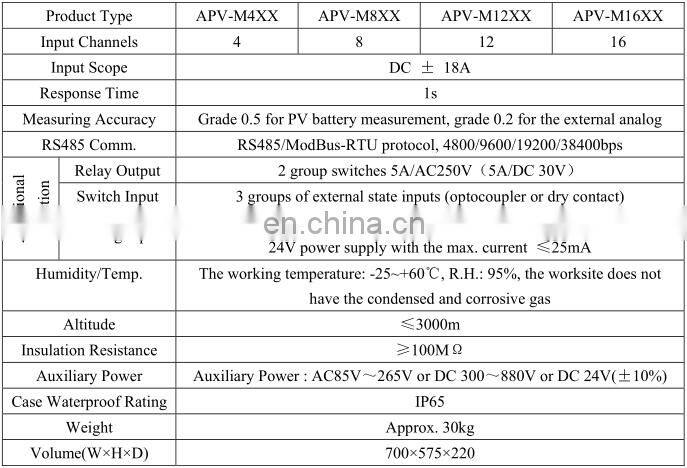

4 Technical Parameters

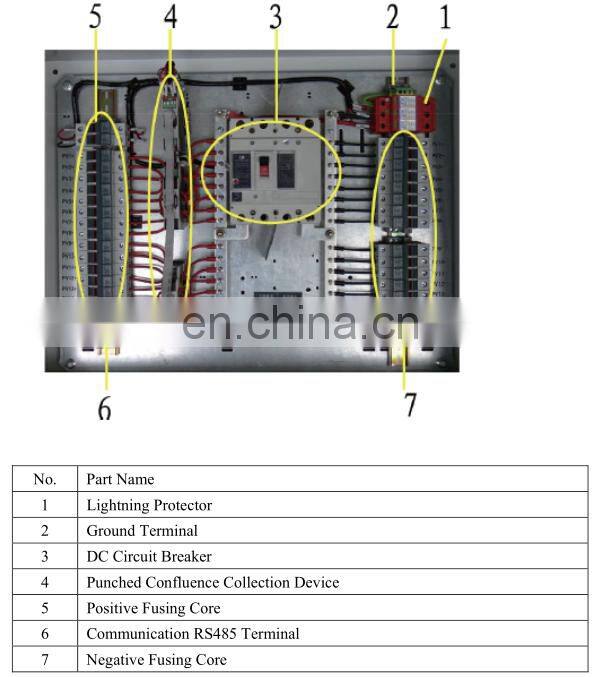

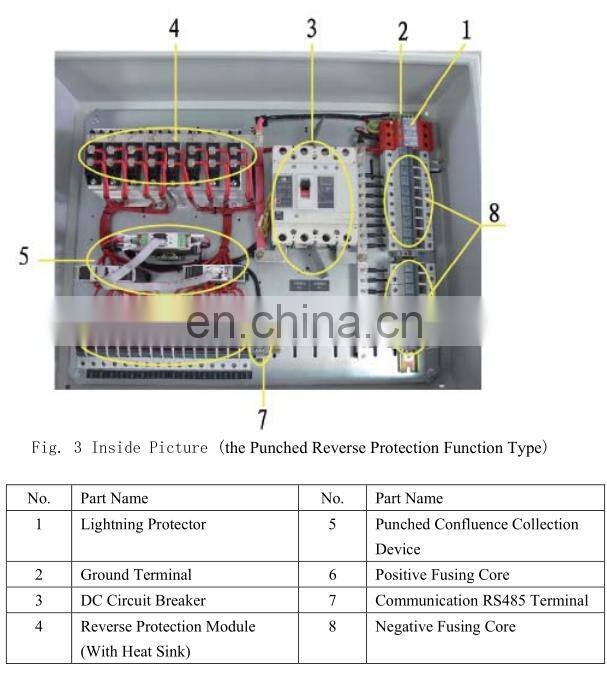

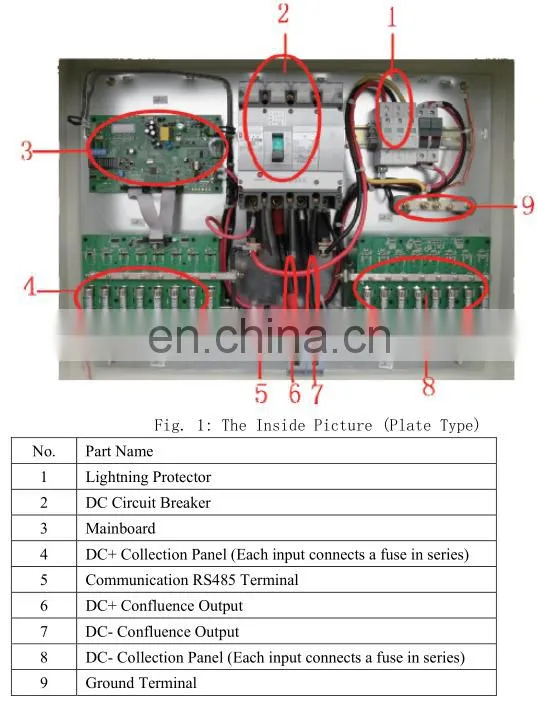

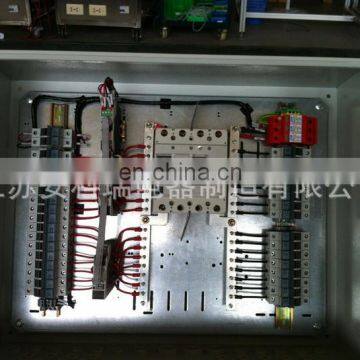

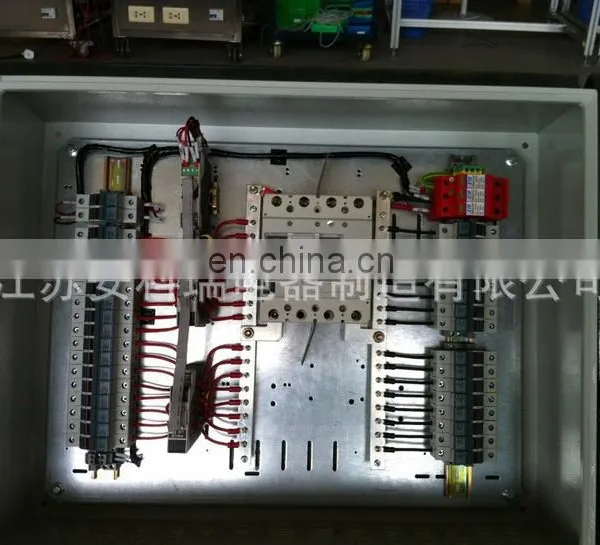

5 Basic Structure
6 Installation and Use
6.1 Check for the Damage due to Transportation Before installation, check the product for the damage or deformation and check if there is any loosening, fall-off or spoilage with the components inside the box. If any of above exceptions is found, please promptly
stop the installation of product and contact our company. If possible, please provide us the picture of position in question for analysis and disposal.
6.2 Basic Installation Requirements
The protection rating of the product is IP65. The installation environment in design is the outdoors installation. However, because of many precise electronic components inside it, do not place it in a damp location, if possible.

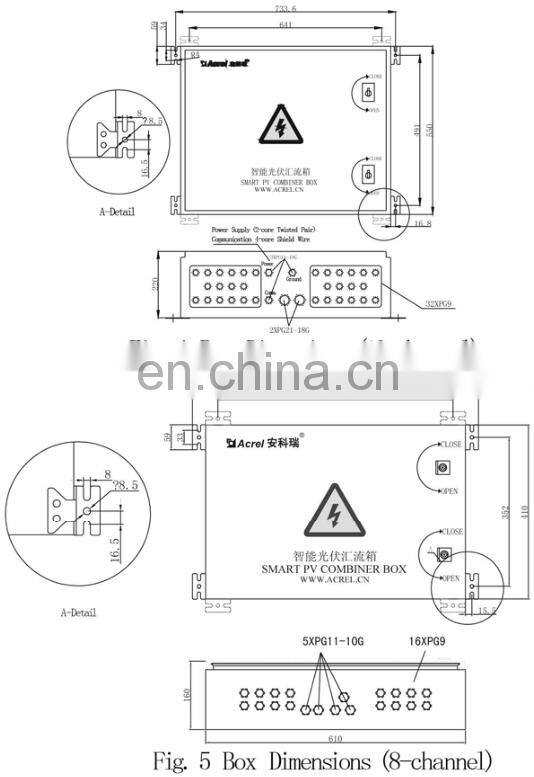

6.3 Overall Dimensions
The dimension of 16-channel box in the product is 700mm×575mm×220mm (Width × Height × Depth), the dimension of 8-channel box is 610mm×410mm×160mm (Width × Height × Depth). The product cannot be horizontally installed and shall be vertically wall mounted. See the below Fig. for the detailed installation dimension.
Note: the imaginary lines in Fig. 4 and 5 are the selectable installation direction.

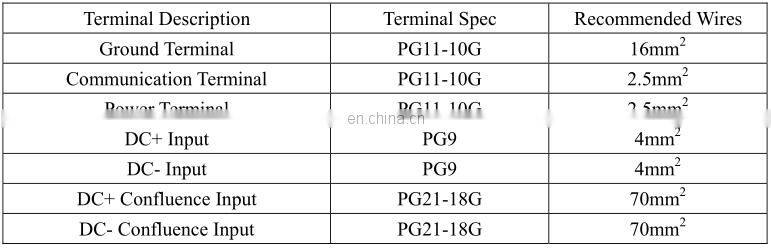

6.4 Terminal Size and Connection Wire Size
The user can inquire and select the suitable cables for various terminals as per the following table:
6.5 Open and Close the Frame Box

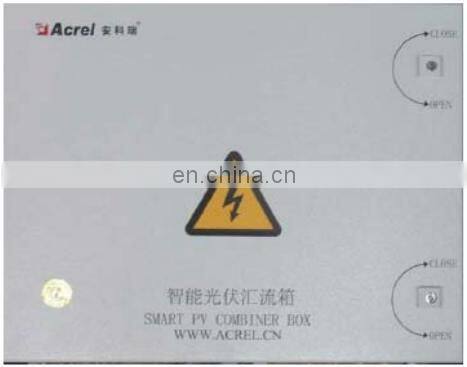

Fig. 6 Frame Box Appearance
All the PV array lightning protection combiner boxes of our company have provided a key for opening or closing the box. Notice that the box will be effectively opened or closed only when both locks on the upper and lower parts are unlocked or locked at the same time.
6.6 Input Wire Connection
The positive PV confluence input is located at the left side under the case, the negative PV confluence input is located at the right side under the case. When the user connects the wire, he needs to unscrew the waterproof terminal and then connects the wire with the confluence input wiring terminal, tightens the screw and properly fixes the wiring and at last tightens the outside waterproof terminal (See Fig.7).
6.7 Output Wire Connection
The output of combiner box is located under the case. See the following Fig. for the detail connection
positions.

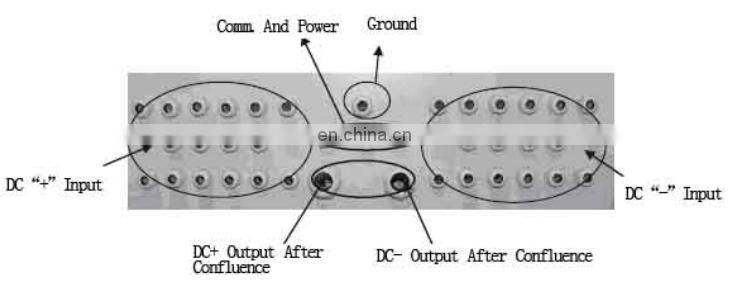

Fig.7 Input and Output Terminals
