Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > Acrel ARU1-10/255/NPE 10kA 255V NPE Surge Protection Device

Acrel ARU1-10/255/NPE 10kA 255V NPE Surge Protection Device

Name: Acrel ARU1-10/255/NPE 10kA 255V NPE Surge Protection Device
Brand: Acrel
SKU: 165442577
Availability: InStock

Acrel ARU1-10/255/NPE 10kA 255V NPE Surge Protection Device thumbnail-1

Acrel ARU1-10/255/NPE 10kA 255V NPE Surge Protection Device thumbnail-2

Acrel ARU1-10/255/NPE 10kA 255V NPE Surge Protection Device thumbnail-3

Acrel ARU1-10/255/NPE 10kA 255V NPE Surge Protection Device photo-1

Acrel ARU1-10/255/NPE 10kA 255V NPE Surge Protection Device photo-2

Acrel ARU1-10/255/NPE 10kA 255V NPE Surge Protection Device photo-3

US$ 6 - 6 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

Acrel

Place of Origin:

Jiangsu, China

Model Number:

ARU1-15/255/NPE

Contact Supplier Request Quote Chat Now

Jiangsu Acrel Electrical Manufacturing CO.,LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Acrel

Place of Origin Jiangsu, China

Model Number ARU1-15/255/NPE

Product Description

Surge protector, also known as lightning protection, lightning arrester, is an electronic device to provide safety protection for various electronic equipment, instruments, communication lines, low-voltage electrical lines. Suitable for ac 50/60 hz, rated voltage 380 v power supply system or a photovoltaic system, the indirect lightning and thunder and lightning directly affect or other transient over voltage surge protection, meet the family home, the third industry and industrial field of surge protection requirements, has the relative phase, contrast, relative to the midline, midline of protected mode and their combination, etc.

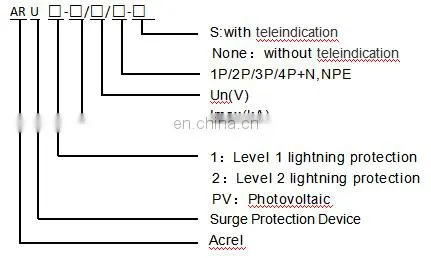

Product Name	specifications	Un(V)	Uc(V)	waveform(μs)	Imax(kA)	In(kA)	class	teleindication	Size
I Class SPD	ARU1-50	220/380	L:275 N-PE:385	10/350	Iimp=50(L)	20	1P,2P,3P,4P,1P+N,3P+N	optional
	ARU1-25		L:275 N-PE:385		Iimp=25(L)	25
	ARU1-15		L:385 N-PE:255		Iimp=15(L)	50
II Class SPD	ARU2-120	220/380	L:385 N-PE:255	8/20	120	80	1P,2P,3P,4P,1P+N,3P+N	optional
	ARU2-100				100	60
	ARU2-80				80	40
	ARU2-60				60	30
	ARU2-40				40	20
	ARU2-20				20	10
PV SPD	ARUPV-40	1000 (DC)	1250 (DC)	8/20	40	15	3P	standard
