Acrel 300286 ASL100-F4/8 KNX 8 key smart lighting switch

Name: Acrel 300286 ASL100-F4/8 KNX 8 key smart lighting switch
Brand: ACREL
Price: USD $133 - 133 / Piece

FOB Price

USD $133 - $133 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	ACREL	Place of Origin:	China	Model Number:	ASL100
Protection Level:	IP20	Max. Voltage:	DC30V	Max. Current:	12mA

Packaging Details

smart lighting panel was packed in carton box, suitable for long way transportation.

Product Description

1. Overview
ASL100-Fx/x series of smart panel module (hereinafter referred to as smart panel) is the Acrel-bus input control module. This product meets the rules of Q31/0114000129C032-2017 ASL100 Intelligent Lighting Control System. European KNX communication bus is adopted to achieve smart lighting control in the large buildings and public buildings. The latest single-chip microcomputer technology is adopted by the module. Thus, the module is highly stable and reliable. Matched with other modules, such as switch driver and dimming driver, this module can realizes smart lighting control. This module controls the strong current by the weak current. 30V bus voltage at the communication end is used to power on the module and used for system communication.

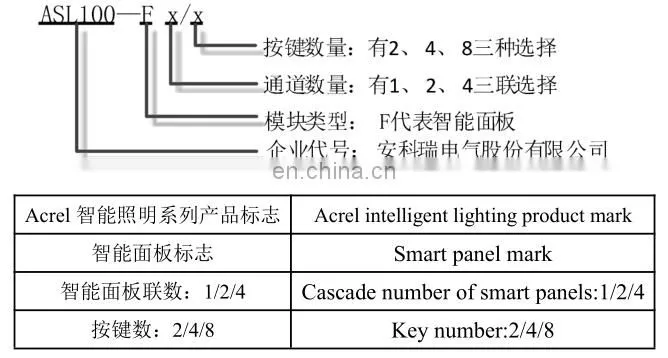

2. Specification and model

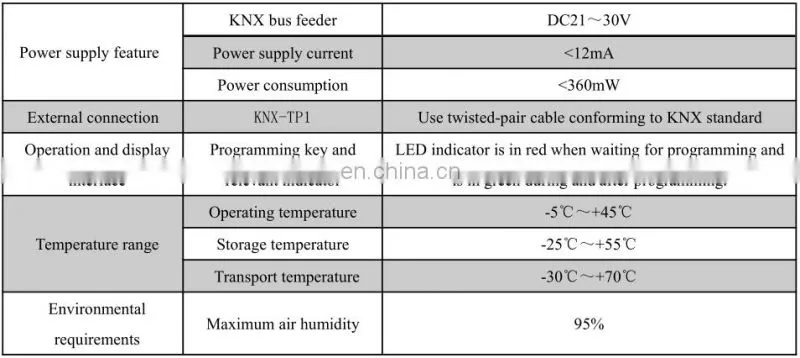

3. Technical parameters

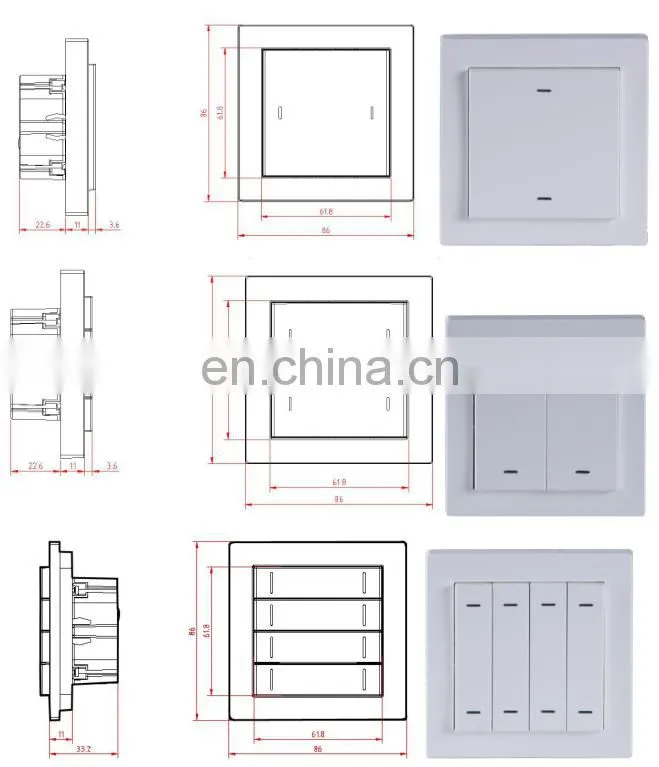

4. Configuration

5. Electric wiring diagram

KNX bus terminal: positive in red, negative in black.
Running and programming indicator
Programming key

6. Application guide
The series of smart panel has three options: one cascade two keys, two cascades four keys, four cascades eight keys. The panel is connected with the system by the standard wiring terminal and KNX bus cable without additional power module. All functions on the smart panel are imported VD3/VD4 into ETS. Then, the corresponding functions are selected by changing all parameters.

The series of smart panel has functions as follows:
Switch function
Dimming control
Shutter control
Send value function
Scene control function

Company Profile

Jiangsu Acrel Electrical Manufacturing CO.,LTD

Acrel Co., Ltd.[stock code: 300286.sz] is a high-tech enterprise integrates R&D, production, sales and service, since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors. At present, more than 8,000 sets of various solutions are running all over the country, help users to realize the visual management of energy consumption, provide users the energy data services, and escort users an efficient and safe energy consumption.

Acrel energy efficiency management system including substation operations and maintenance cloud platform, electricity safety management cloud platform, Environmental equipment power consumption monitoring cloud platform, prepaid management (system) cloud platform, intelligent power distribution monitoring system, power quality management system, building energy consumption management system, industrial energy control platform, leakage power monitor and control system, fire-fighting device power monitoring system, fire-proof door monitoring system, emergency lighting and evacuation indicating system, EV charger management system, data center power&environment monitoring system, smart lighting control system, IT isolation power supply system and related products.

Jiangsu Acrel Electrical Manufacturing Co., LTD., the manufacturer base located in Jiangyin, Wuxi City, is a pioneer enterprise integrates the informatization and industrialization of Jiangsu province. It has a multiple function product test center(CNAS certified), which can carry out a variety of tests on environment, electromagnetic compatibility, safety and reliability. The production relies on the advanced information management system and strictly follow the ISO9001 management standard, which provide a guarantee for industrialization and large-scale implementation of the products. The annual capacity of the electrical meter is 2 million sets, 1.5 million power transformers and 10,000 sets of energy-saving cabinets.
