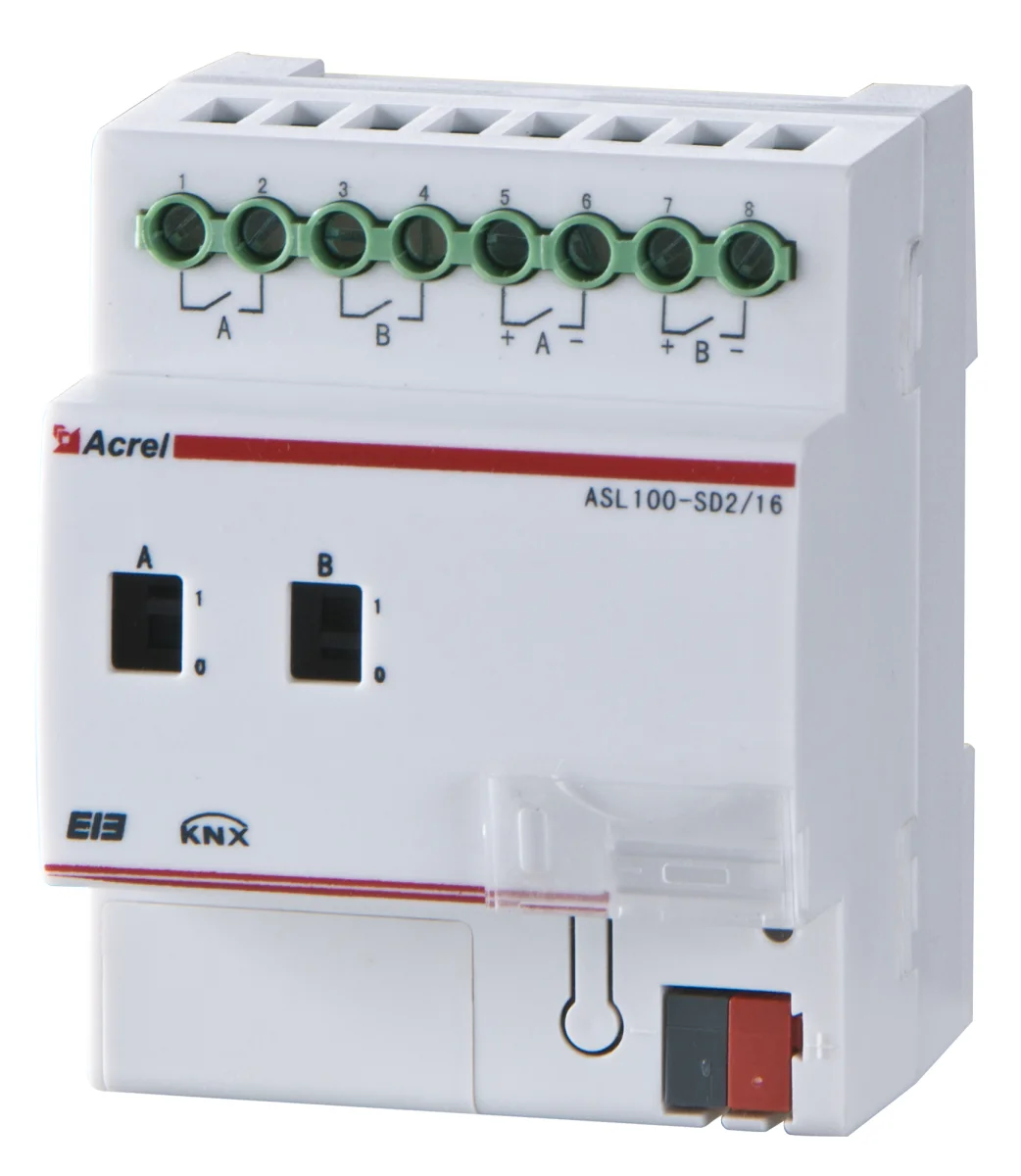

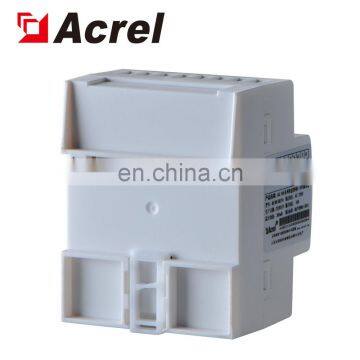

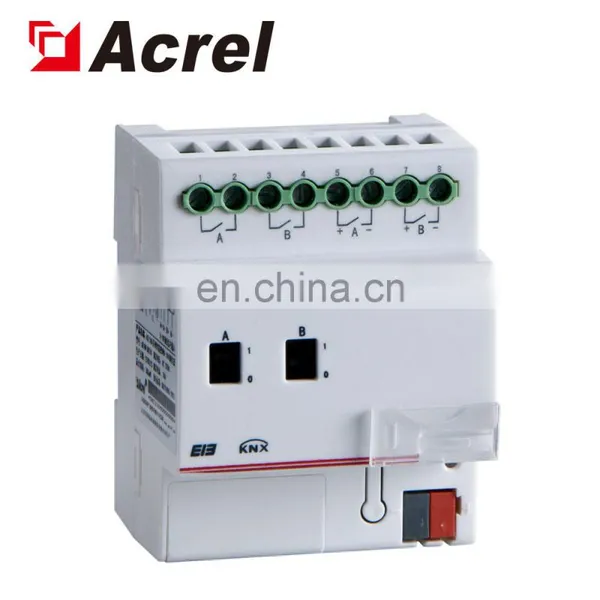

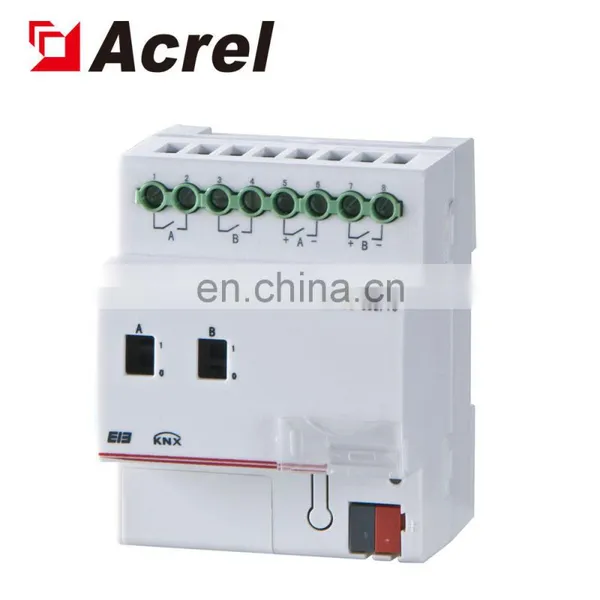

ASL100-SD2/16 Acrel 300286.SZ Dimming of LED Lights 0-10V Dimming Driver
US$ 165.9 - 165.9
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
Jiangsu, China
Model Number:
ASL100-SD2/16
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ASL100-SD2/16 Acrel 300286.SZ Low Voltage Halogen Lamps 0-10V Dimming DriverUS$ 165.9 - 165.9MOQ: 1 Piece -
ASL100-SD2/16 Acrel 300286.SZ Centralized Control 0-10V Dimming DriverUS$ 165.9 - 165.9MOQ: 1 Piece
-
ASL100-SD4/16 Acrel 300286.SZ Lighting Manual Control System 0-10V Dimming DriverUS$ 227.5 - 227.5MOQ: 1 Piece
-
Acrel ASL100-SD4/16 Schools Lighting Control System 0-10V Dimming Driver/ KNX Switch ActuatorUS$ 227.5 - 227.5MOQ: 1 Piece
-
ASL100-SD4/16 Acrel 300286.SZ Bridges and Tunnels Lighting Control System 0-10V Dimming DriverUS$ 227.5 - 227.5MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
Jiangsu, China
Model Number
ASL100-SD2/16
Overview
0-10V dimming driver controls the load on-off as the diming module and outputs 0-10V dimming signals. The dimmer receives the con
trol message from the bus and then executes the corresponding actions according to the set parameters. With ETS programming, the d
immer can realize multiple control functions. The high voltage line is not changed and the lighting control is changed.
trol message from the bus and then executes the corresponding actions according to the set parameters. With ETS programming, the d
immer can realize multiple control functions. The high voltage line is not changed and the lighting control is changed.
Technical Parameters
Power supply feature |
KNX bus feeder |
DC21~30V |
|||||
Power supply current |
＜12mA |
||||||
Power consumption |
＜360mW |
||||||
Load current |
＜16A |
||||||
External connection |
KNX-TP1 |
Use twisted-pair cable conforming to KNX standard. |
|||||
Wiring terminal at load end |
Terminating with 0.5nm~0.6nm torque |
||||||
Operation and display interface |
Programming key and relevant indicator |
LED indicator is in red when waiting for programming and is in green during and after programming. |
|||||
Temperature range |
Operating temperature |
-5℃~+45℃ |
|||||
Storage temperature |
-25℃~+55℃ |
||||||

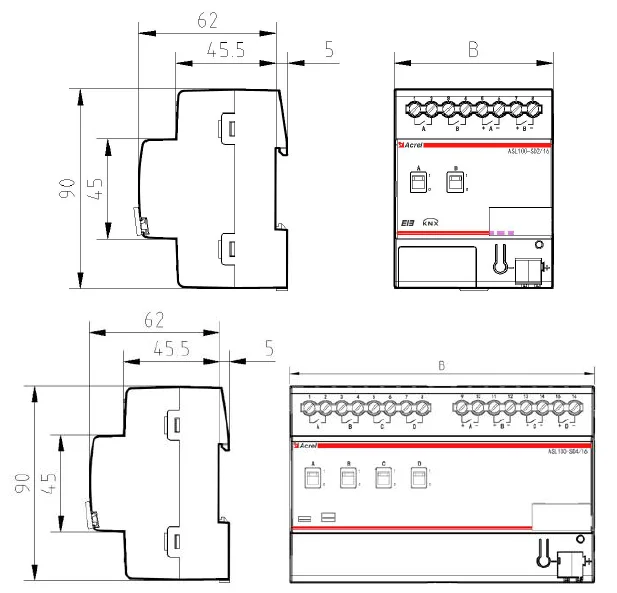

Installation |
Standard 35mm track installation |
||||||

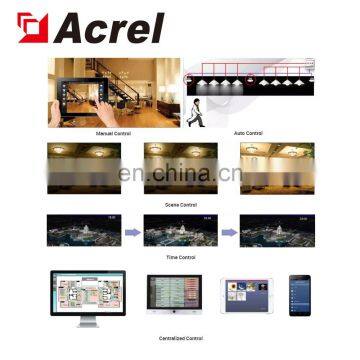

Manual Control

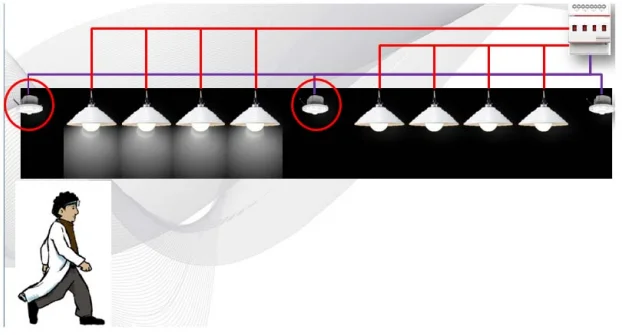

Auto Control
Scene Control
Time Control
Centralized Control
