Home > Electrical & Electronics > Relay & Contactor > Relay > Acrel 300286.SZ AM5-C 35kv Used Capacitor Protection and Control Relay for Protection Control Measurement Supervision

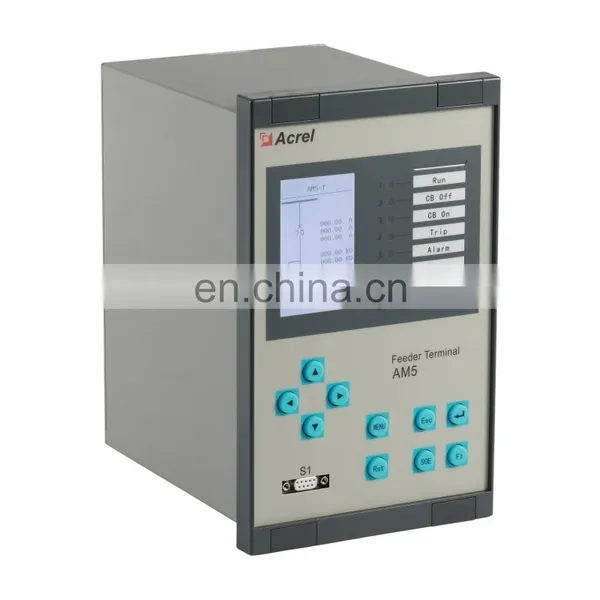

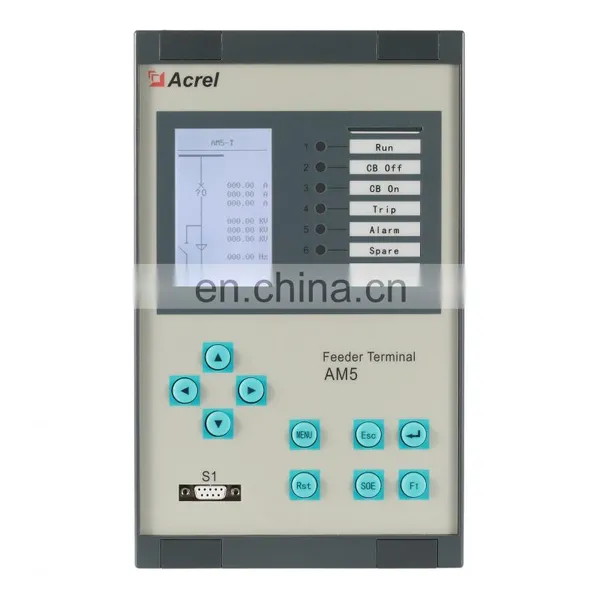

Acrel 300286.SZ AM5-C 35kv Used Capacitor Protection and Control Relay for Protection Control Measurement Supervision
US$ 777 - 777
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
Jiangsu, China
Model Number:
AM5-C
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel 300286.SZ AM5-F 35kv Used Protection and Control Relay for Feeder in Industrial Power SystemsUS$ 777 - 777MOQ: 1 Piece -
Acrel 300286.SZ AM5-F 35kv Used Feeder Protection and Control Relay for Utility SubstationsUS$ 777 - 777MOQ: 1 Piece
-
Acrel 300286.SZ AM5-B 35kv Substation Used Busbar Connection Protection RelayUS$ 777 - 777MOQ: 1 Piece
-
Acrel 300286.SZ AM5-B 35kv Used Protection Relay for Automatic Switch Device of Standby Power SupplyUS$ 777 - 777MOQ: 1 Piece
-
Acrel 300286.SZ AM5-M 35kv Used Protection Relay for Substation Motor ProtectionUS$ 777 - 777MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
Jiangsu, China
Model Number
AM5-C
Size
Miniature
Usage
Protective
Contact Load
Low Power
Protect Feature
Sealed
Theory
Electromagnetic Relay
Product Description
AM5 Series Protection Relay
AM5 Series Protection Relay
General
AM series microcomputer protection measurement and control device set protection, measurement, control in one, suitable for 35kV and below the voltage level of the user terminal substation (station), can achieve the protection and measurement and control of the user substation.Application fields cover power, water conservancy, transportation, petroleum, chemical, coal, metallurgy and other industries.
Features
● A complete set of protection, related to the application;
● 8 current input, 4 voltage input, 16 DI, 10 DO;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 2 RS485 serial communication, IEC 60870-5-101, IEC60870-5-103 and Modbus-RTU;
● 1 RS232 for user update;
● 1 GPS for GPS timing;
● More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;
● Powerful graphic programmable Logic.
● 8 current input, 4 voltage input, 16 DI, 10 DO;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 2 RS485 serial communication, IEC 60870-5-101, IEC60870-5-103 and Modbus-RTU;
● 1 RS232 for user update;
● 1 GPS for GPS timing;
● More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;
● Powerful graphic programmable Logic.
Technical Parameters
Rated input | Range | accuracy | power consumption | |
Power supply | AC220V/DC220V, DC110V,DC48V | Rared input×（1±20%） | ----- | ≤10W ( DC ) |
Voltage input | AC 100V/100/ 3 V | 1～120V | ±0.5% | ≤0.5VA single phase |
Current input | AC 5A /1A | 0.04In～15In | ±0.5% | ≤0.5VA single phase |
Frequency | 50Hz | 45～55Hz | ±0.1Hz | ----- |
DI | AC220V/DC220V, DC110V, DC48V | Rared input×（1±20%） | ----- | ≤1W（DC220V）single DI |
Detailed Information
LCD Display
Function
Wiring
Typical Application
