Product Description

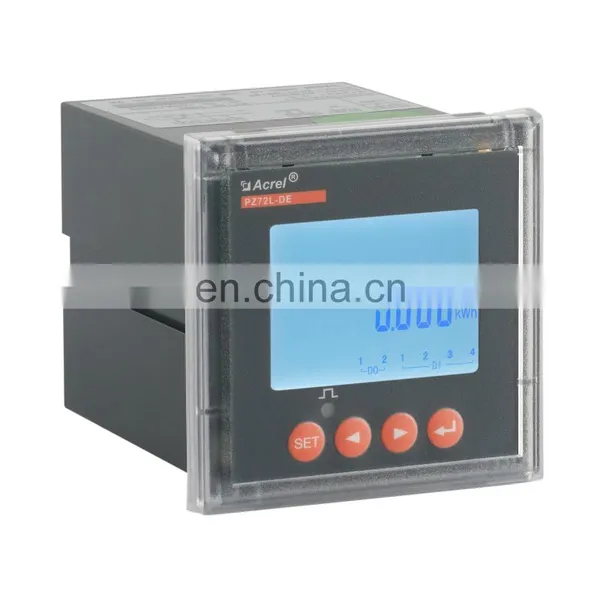

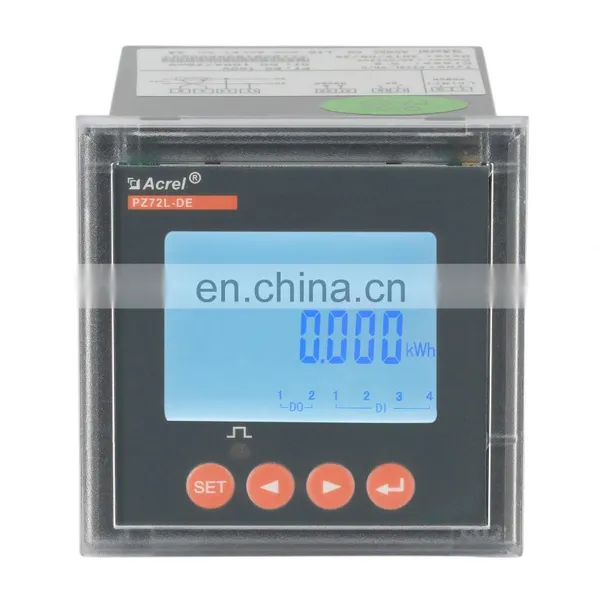

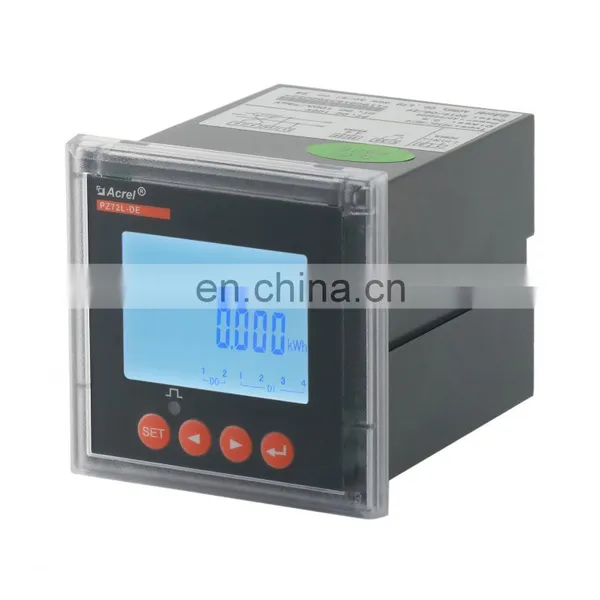

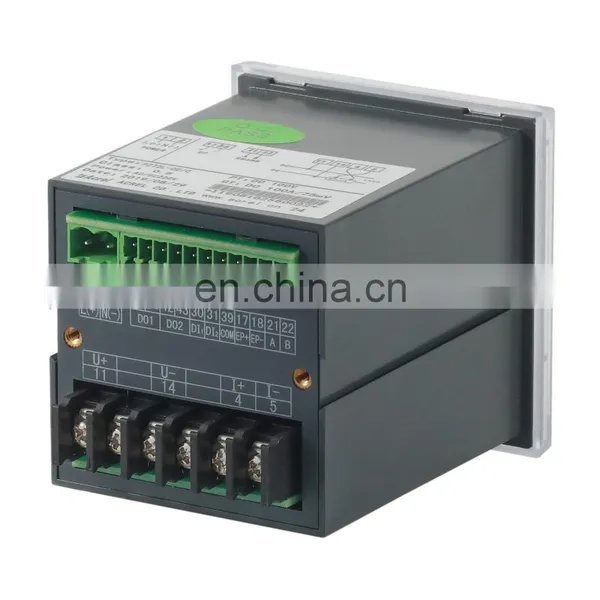

PZ72L-DE Smart Panel mounted DC Energy Meter

General

PZ series intelligent DC energy meter is designed for applications such as DC panels, solar power, telecommunications base stations,and charging posts. This series of instruments can measure voltage, current, power, forward and reverse power in DC system. It can be used for local display, and connected with industrial control equipment, computers, form a measurement and control system. And it has a variety of external excuse functions for the user to choose: RS485 communication interface, Modbus-RTU protocol, relay alarm output, digital input/output. According to different requirements, through the instrument panel keys, you can set the ratio, communication parameters.

Types and Functions

Type
Basic Function
Exterior
Optional Function
PZ72L-DE
voltage、current、power、energy、LCD desplay
72 square
1.--RS485 (/C)
2.--12V power output① (/V)
3.--RS485 + 2DO (/KC)
4.--RS485 + 2DI2DO (/KC)
5.--RS485 + 2DO + 12V power output (/KVC)
6.--RS485 + 12V power output (VC)
The above functions can have the following two optional functions at the same time:
7.--Auxiliary power 20-60V (/ZD)
8.--Multiple rate (F)
PZ72-DE
voltage、current、power、energy、LCD desplay
Annotation: ①The functon of 12V power output and DI can not be selected at the same time.

Technical Parameters

Technical Parameters
Indicators
Input
DC voltage
Input range
0～100V,0～500V,0～1000V
Input resistance
≥6kΩ/V
DC current
Input range
(External Shunt or Hall Current Sensor, the range can be set)
Shunt
75mV
Hall Current Sensor
0～20mA、0～5V
Power consumption
≤1mW
Overload
It can work at normal status at 1.2 times of full load, and can contined work 1 second at 2 times of full load.
Accuracy class
0.5class







Function
Measuring
Voltage、Current、Power
Calculate
Current total electricity、Current positive energy、Current reverse power
Multiple rate
Four time zones、two time table、fourteen time points、four multiple rates. (PZ72L-DE support only)
Historical data statistics
Last 12 months of historical electricity(multiple rate electricity).(PZ72L-DE support only)
DI、DO
2DI(Collect and display local switch status information、Realize remote transmission by RS485)、2DO(Relay output, can achieve
"remote control" and alarm output)
Display
LCD(the backlight delay time can be adjusted) or LED
Communication
RS485、Half duplex、Photoelectric isolation、Modbud-RTU / DL/T645-07、Band:1200/2400/4800/9600、Infrared：1200
DI、DO
DI
Dry contact input, Meter built-in power supply, photoelectric isolation
DO
Two relay outputs, Normally open contact, capacity:2A/30VDC or 2A/250VAC
Working power
Voltage range
85～265VAC/DC、50/60Hz；20～60VDC
Power consumption
≤2W
Insulation resistance
≥100MΩ
Power frequency
withstand voltage
3kV/1min（RMS）(between the power supply binding post and the signal binding post)
Environment
Temperature
Working Temp：-20℃～+60℃；Storage Temp：-20℃～+70℃
Humidity
≤ 93%RH No condensation, no corrosive gases
Altitude
≤ 2500m
