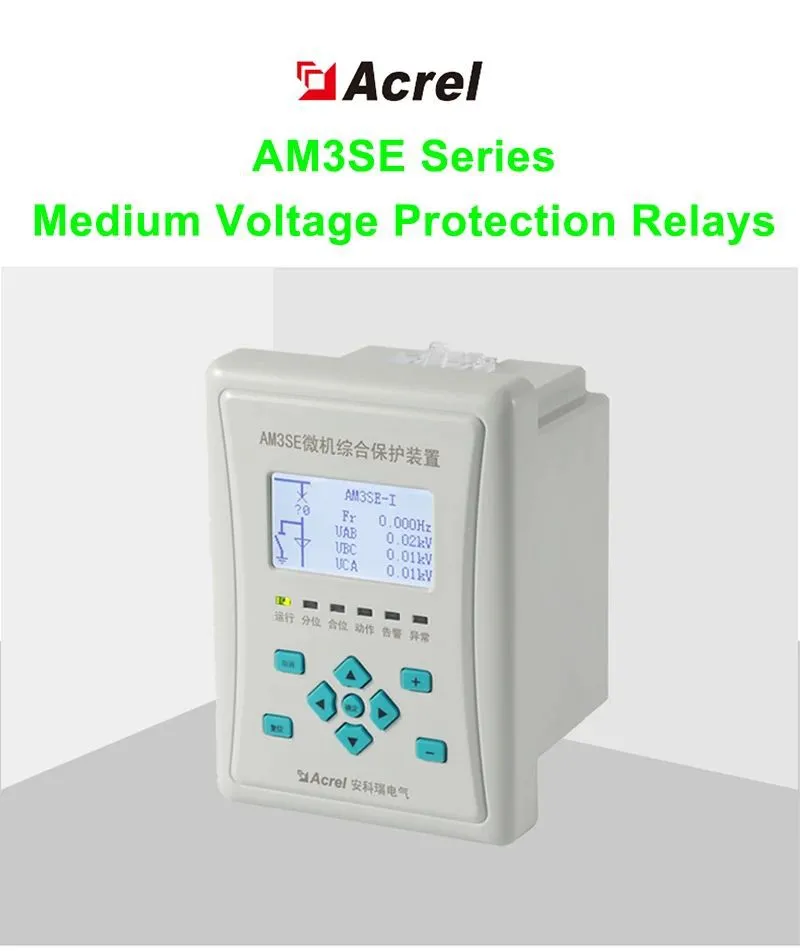

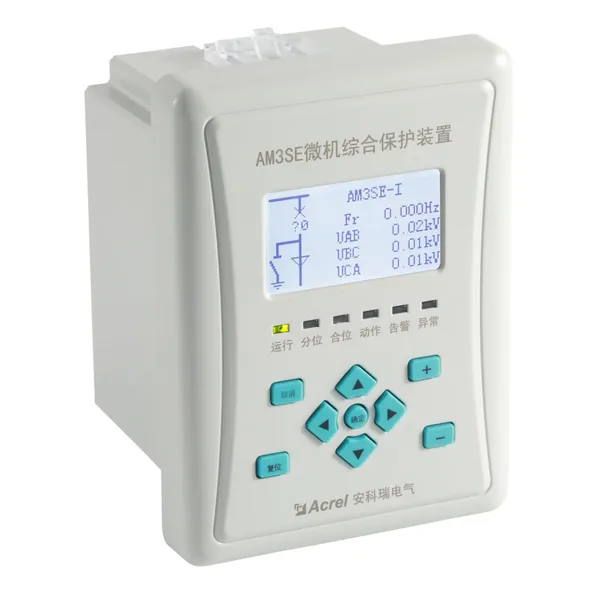

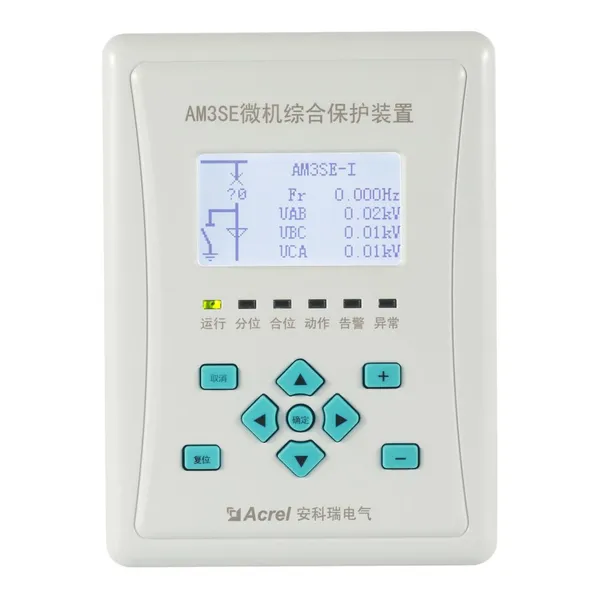

Acrel AM3SE overcurrent IDMT medium voltage application microcomputer protection relay

Name: Acrel AM3SE overcurrent IDMT medium voltage application microcomputer protection relay
Brand: Acrel
Price: USD $333 - 333 / Piece

FOB Price

USD $333 - $333 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shanghai
Payment Terms:T/T Credit Card
Delivery Detail:10 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Acrel

Place of Origin:

China

Model Number:

AM3SE

Packaging Details

It is packed in a crash bag and then put into a cardboard box.

Product Description

General

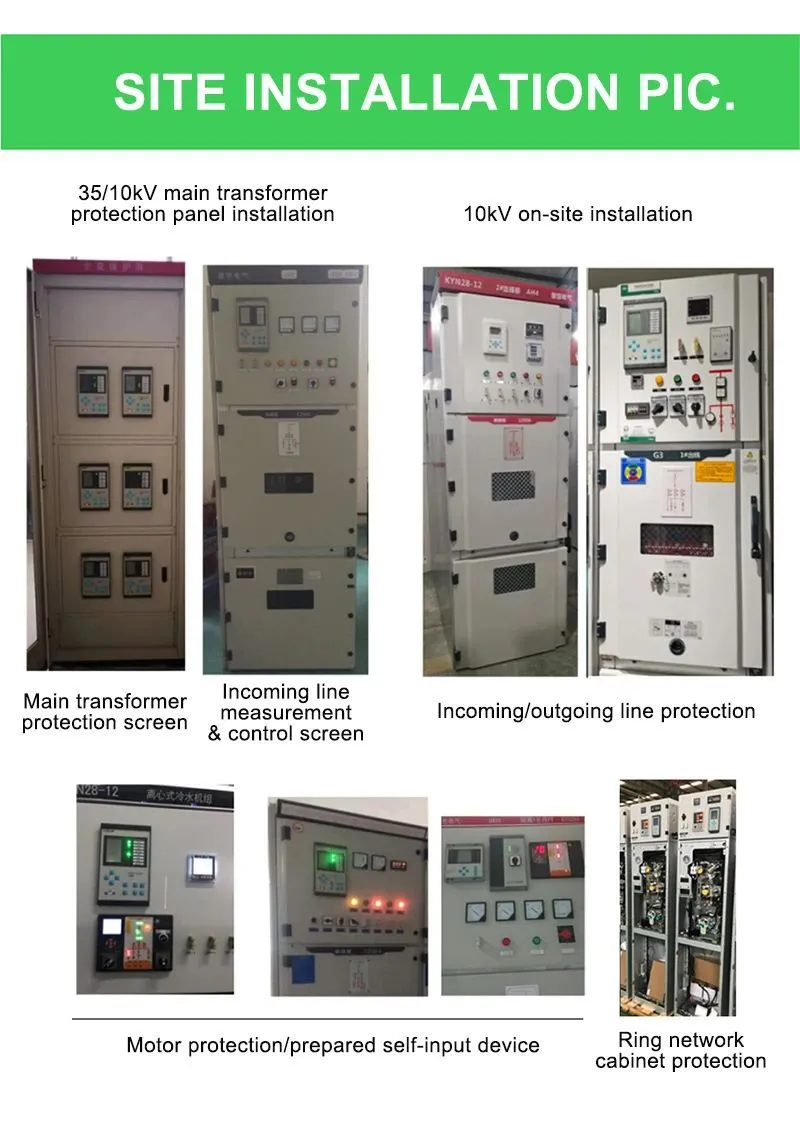

      AM series protection relay are applicable to the user substation which the input voltage is 35kv and below. We adopt mature technology solutions to ensure the quality of the AM relay.The AM relay are widely used in substations, subsection posts and ring main units for office buildings, commercial buildings, communication buildings, mine buildings and so on.

Parameters

Power supply	Rated input	AC/DC220V, or AC/DC110V, or DC48V, or DC24V
	Range	Rared Voltage×（1±20%）
	Consumption	≤10W ( DC )
Rated Voltage	Rated input	AC 100V/100/V
	Range	1～120V
	Accuracy	±0.5%
	Consumption	≤0.5VA (single phase)
Rated Current	Rated input	AC 5A /1A
	Range	0.04In～15In
	Accuracy	±0.5%
	Consumption	≤0.5VA (single phase)
Frequence	Rated frequency	50Hz or 60Hz
	Range	45～55Hz or 60Hz
	Accuracy	±0.1Hz
DI	Rated Voltage	AC/DC220V, or AC/DC110V, or DC48V, or DC24V
	Range	Rared Voltage×（1±20%）
	Cconsumption	≤1W（DC220V）(single channel)
DO	Mechanical life	≥10000
	Switching capacity	≥1000W，L/R = 40ms
	On current	continuous ≥5A, short time（200ms）≥30A
	Interrupting capacity	≥30W，L/R = 40ms
Environment	Temperature	-10℃～＋55℃
	Humidity	5％～95％ (No condensation and freeze inside)
	Altitude	≤4000m
