Acrel AM3SE 2 Stages Earth Fault Protection Medium Voltage Application Microcomputer Protection Relay

Acrel AM3SE 2 Stages Earth Fault Protection Medium Voltage Application Microcomputer Protection Relay thumbnail-1
Acrel AM3SE 2 Stages Earth Fault Protection Medium Voltage Application Microcomputer Protection Relay thumbnail-2
Acrel AM3SE 2 Stages Earth Fault Protection Medium Voltage Application Microcomputer Protection Relay thumbnail-3
Acrel AM3SE 2 Stages Earth Fault Protection Medium Voltage Application Microcomputer Protection Relay thumbnail-4
Acrel AM3SE 2 Stages Earth Fault Protection Medium Voltage Application Microcomputer Protection Relay photo-1

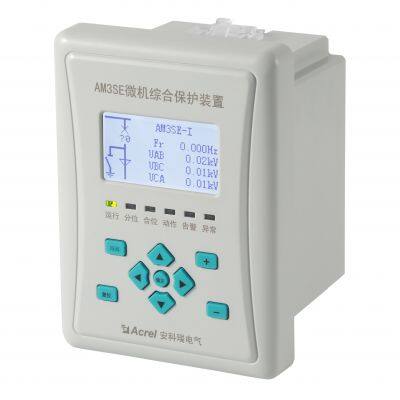

Acrel AM3SE 2 Stages Earth Fault Protection Medium Voltage Application Microcomputer Protection Relay photo-2

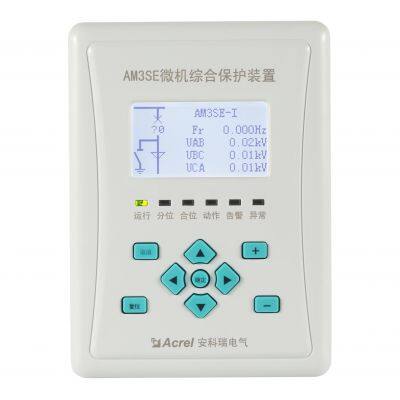

Acrel AM3SE 2 Stages Earth Fault Protection Medium Voltage Application Microcomputer Protection Relay photo-3

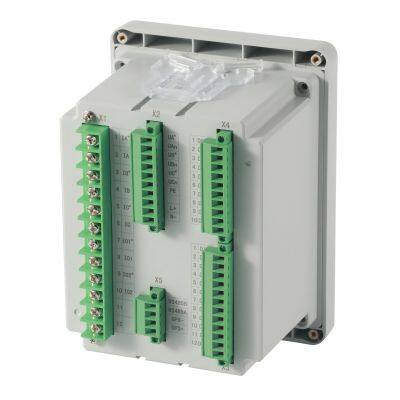

Acrel AM3SE 2 Stages Earth Fault Protection Medium Voltage Application Microcomputer Protection Relay photo-4
US$ 330 - 330 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
AM3SE
Contact Supplier Request Quote Chat Now
Jiangsu Acrel Electrical Manufacturing CO.,LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Acrel
Place of Origin China
Model Number AM3SE

                                General
     AM series protection relay are applicable to the user substation which the input voltage is 35kv and below. We adopt mature technology solutions to ensure the quality of the AM relay.The AM relay are widely used in substations, subsection posts and ring main units for office buildings, commercial buildings, communication buildings, mine buildings and so on.

                           Parameters
Power supply
Rated input
AC/DC220V, or AC/DC110V, or DC48V, or DC24V
Range
Rared Voltage×（1±20%）
Consumption
≤10W ( DC )
Rated Voltage
Rated input
AC 100V/100/V
Range
1～120V
Accuracy
±0.5%
Consumption
≤0.5VA (single phase)
Rated Current
Rated input
AC 5A /1A
Range
0.04In～15In
Accuracy
±0.5%
Consumption
≤0.5VA (single phase)
Frequence
Rated frequency
50Hz or 60Hz
Range
45～55Hz or 60Hz
Accuracy
±0.1Hz
DI
Rated Voltage
AC/DC220V, or AC/DC110V, or DC48V, or DC24V
Range
Rared Voltage×（1±20%）
Cconsumption
≤1W（DC220V）(single channel)
DO
Mechanical life
≥10000
Switching capacity
≥1000W，L/R = 40ms
On current
continuous ≥5A, short time（200ms）≥30A
Interrupting capacity
≥30W，L/R = 40ms
Environment
Temperature
-10℃～＋55℃
Humidity
5％～95％ (No condensation and freeze inside)
Altitude
≤4000m


Contact us

Overseas sales engineer: Tim Ma

email:tim.ma@email.acrel.cn

Mob:+86 18761599716(whatsapp/skype/wechat)


Product Tags: Protection Relay , stages earth fault protection realy , medium voltage protection relay
