Acrel AEW100 three phase din rail loar and RS485 communication wireless multifunction power meter

Name: Acrel AEW100 three phase din rail loar and RS485 communication wireless multifunction power meter
Brand: Acrel
Price: USD $93.1 - 93.1 / Piece

FOB Price

USD $93.1 - $93.1 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Acrel	Place of Origin:	Jiangsu, China	Model Number:	AEW100-D15X
Phase:	Three Phase	Output Voltage:	380V	Operating Temperature:	-25℃~55℃
Dimensions:	54mm88 mm50mm	Accuracy Class:	1 class
Measuring Energy Range:	000000.00~999999.99kWh

Packaging Details

It is packed in a crash bag and then put into a cardboard box.

Product Description

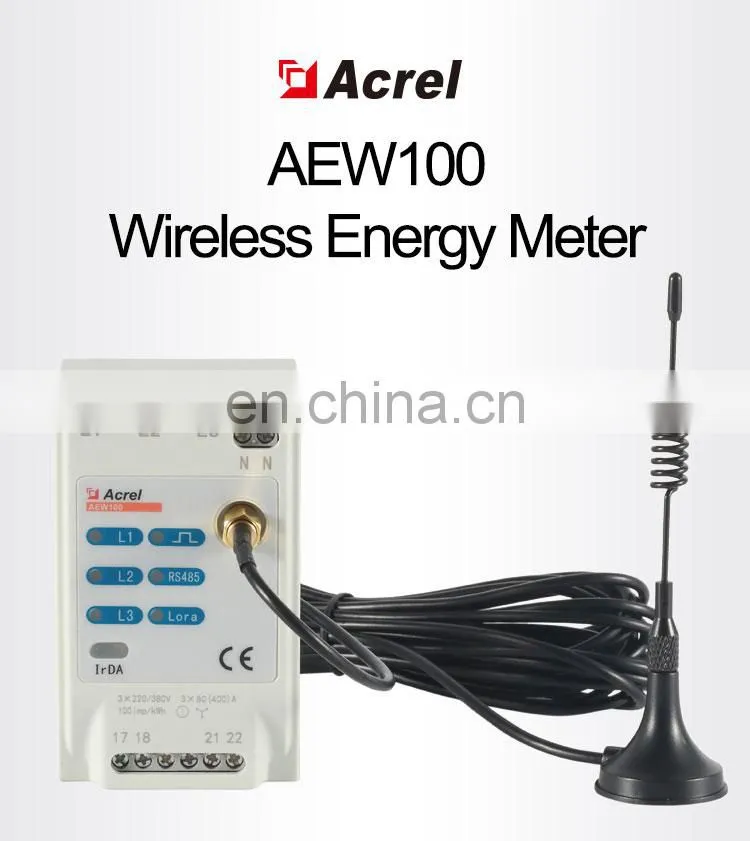

AEW100 Wireless Energy Meter

AEW 100 is a multifunction power meter. There are functions like RS485 communication and Lora communication on 470MHz. With build-in MODBUS-RTU protocol, AEW100 can match most of the system integrate requirement. AEW100 has the advantage of higher accuracy, more compact and easy installing.

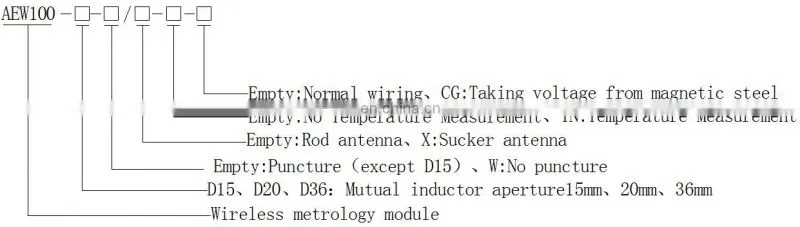

1.Naming rule of main part

2.Technical parameter

Function	Function description
Energy metering	Active kWh (positive and negative)
Electrical measurement	U,I, P,Q,S,PF,F
Pulse output	Active pulse output
LED display	(L1,L2,L3)powered display, pulse, communication, wireless status
Communication	Wireless transmission on 470MHz
	Infrared communication
	Communication interface: RS485

3.Electrical performance

Voltage input	Rated voltage	3×220/380V,3×380V,3×57.7/100V,3×100V
	Reference frequency	50Hz
	Consumption	<2VA(Each phase)
Current input	Input current	3×1.5(6)A,3×20(100)A, 3×40(200)A,3×80(400)A,3×120(600)A
	Start current	4‰Ib(1 Class)
	Consumption	<2VA
Measurement performance	Standard	GB/T17215.321-2008
	Active energy accuracy	1 Class
	Temperature accuracy	±2℃
Pulse	Width of pulse	80±20ms
Pulse	Pulse constant	6400imp/kWh ,400imp/kWh,200imp/kWh,100imp/kWh,60imp/kWh
Communication	Wireless	Transmission on 470MHz and maximum distance in open space is 1km
	Infrared communication	The constant baud rate is 1200
	Interface	RS485(A+,B-)
	Connection mode	Shielded twisted pair conductors
	Protocol	MODBUS-RTU

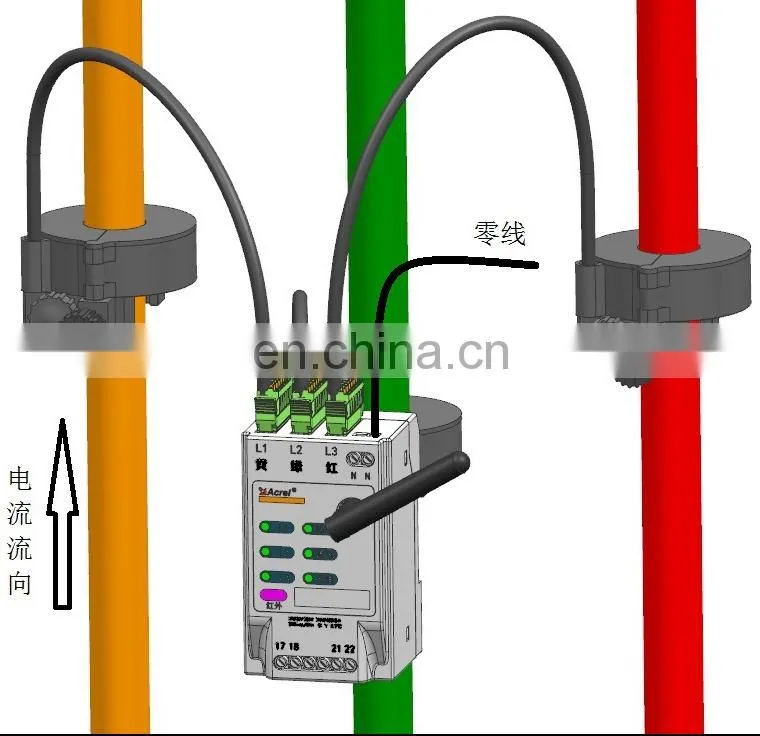

4.Dimension and installing description (Unit: mm)

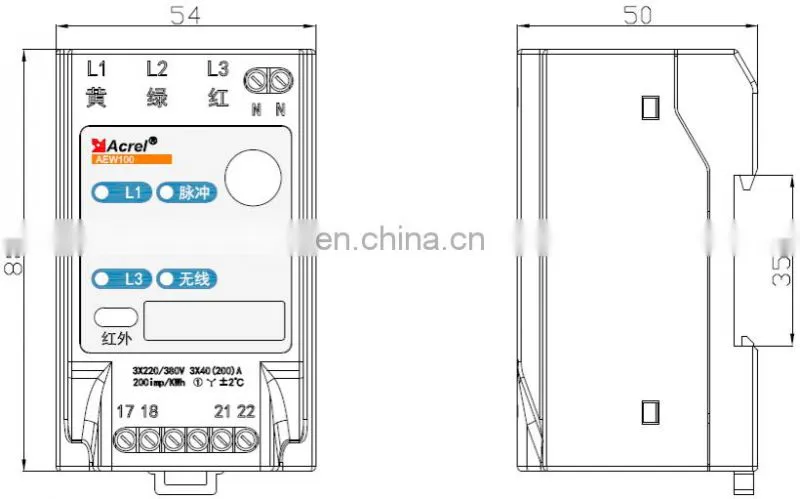

Fig 1 Dimension of AEW100

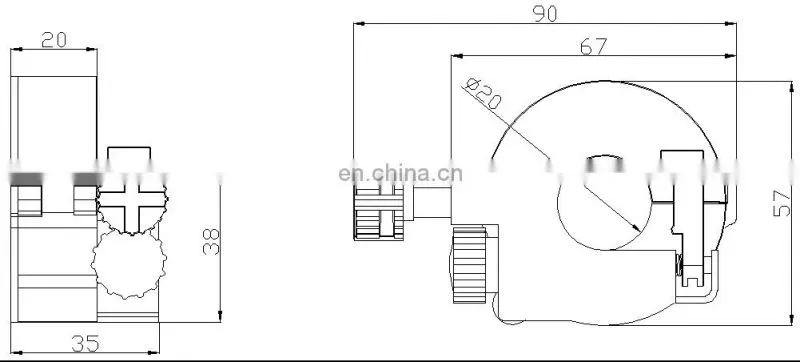

Fig 2 Dimension of mutual inductor AKH-0.66/K-20

Company Profile

Jiangsu Acrel Electrical Manufacturing CO.,LTD

Acrel Co., Ltd.[stock code: 300286.sz] is a high-tech enterprise integrates R&D, production, sales and service, since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors. At present, more than 8,000 sets of various solutions are running all over the country, help users to realize the visual management of energy consumption, provide users the energy data services, and escort users an efficient and safe energy consumption.

Acrel energy efficiency management system including substation operations and maintenance cloud platform, electricity safety management cloud platform, Environmental equipment power consumption monitoring cloud platform, prepaid management (system) cloud platform, intelligent power distribution monitoring system, power quality management system, building energy consumption management system, industrial energy control platform, leakage power monitor and control system, fire-fighting device power monitoring system, fire-proof door monitoring system, emergency lighting and evacuation indicating system, EV charger management system, data center power&environment monitoring system, smart lighting control system, IT isolation power supply system and related products.

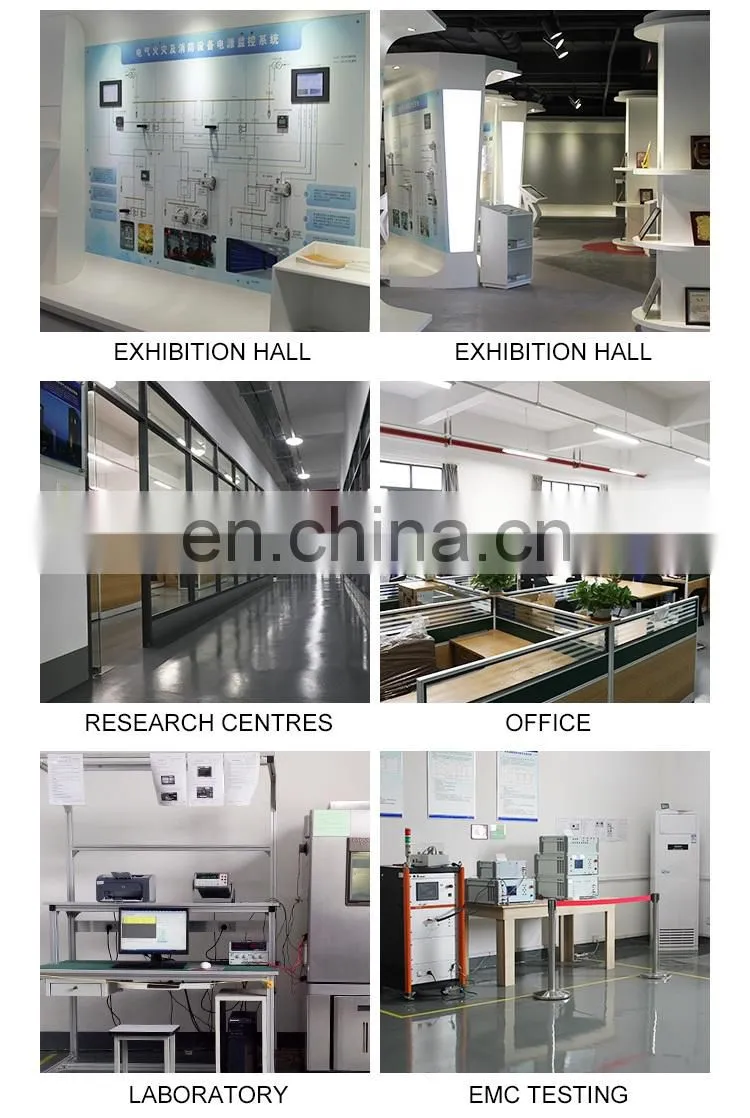

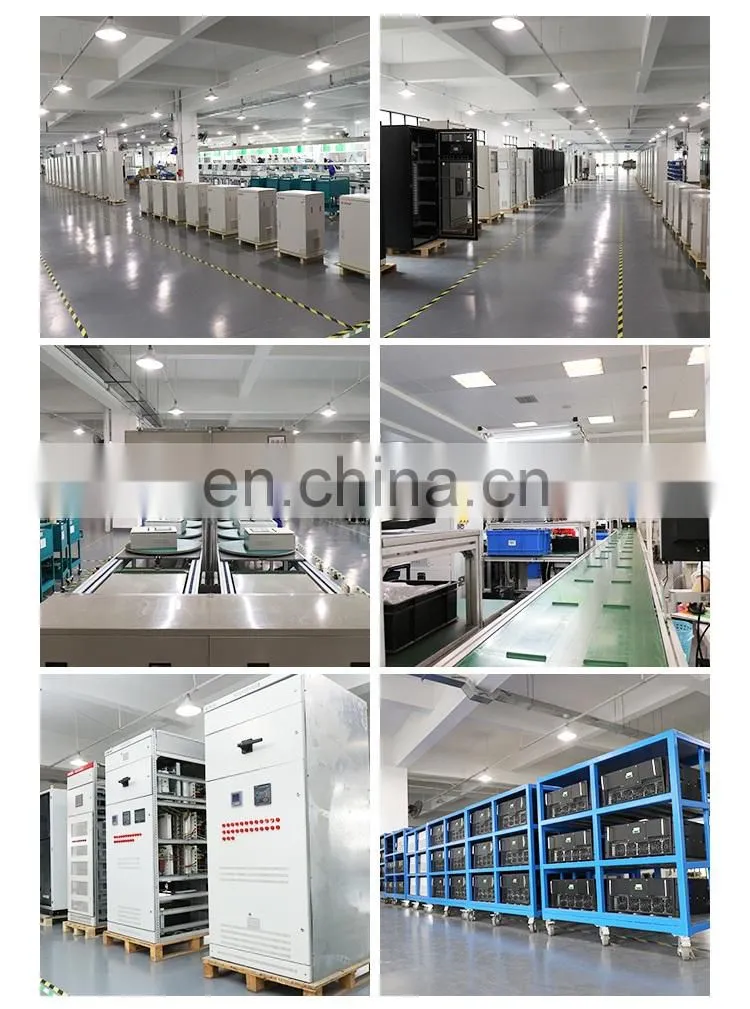

Jiangsu Acrel Electrical Manufacturing Co., LTD., the manufacturer base located in Jiangyin, Wuxi City, is a pioneer enterprise integrates the informatization and industrialization of Jiangsu province. It has a multiple function product test center(CNAS certified), which can carry out a variety of tests on environment, electromagnetic compatibility, safety and reliability. The production relies on the advanced information management system and strictly follow the ISO9001 management standard, which provide a guarantee for industrialization and large-scale implementation of the products. The annual capacity of the electrical meter is 2 million sets, 1.5 million power transformers and 10,000 sets of energy-saving cabinets.
