Acrel 300286.SZ AEW100-D36W/CG Three Phase Energy Meter With RS485 Modbus
US$ 129.6 - 129.6
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
Jiangsu, China
Model Number:
AEW100-D36W/CG
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel DDSD1352-C Digital Din Power Meter With LCD Display/ Kwh MeterUS$ 41.3 - 41.3MOQ: 1 Piece -
Acrel Cheap Factory Inside Mutual Inductor of Temperature Measurement Wireless Energy Meter AEW100-D20XUS$ 103.6 - 103.6MOQ: 1 Piece
-
Acrel Easy Installing Active Pulst Output Wireless Energy Meter AEW100-D15XUS$ 93.1 - 93.1MOQ: 1 Piece
-
Acrel Factory Direct Price Positive and Negative KWh Meter AEW100ing Wireless Energy Meter AEW100-D36X/TNUS$ 144.9 - 144.9MOQ: 1 Piece
-
Acrel Chinese Factory Three Phase Electrical Parameter AEW100s Measurement Wireless Energy Meter AEW100-D20X/TNUS$ 121.1 - 121.1MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
Jiangsu, China
Model Number
AEW100-D36W/CG
Phase
Three Phase
Output Voltage
Pulse output
Operating Temperature
-20℃~55℃
Dimensions
50*54*88mm
Display Type
Digital Only
Accuracy Class
Class1
Measuring Energy Range
0-99999
Product Description

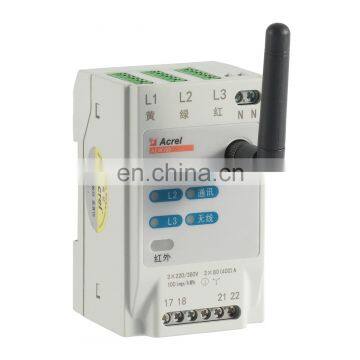

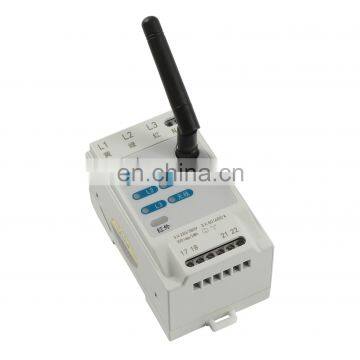

AEW100 Wireless Energy Meter
AEW100 Wireless Energy Meter
General
AEW 100 is a multifunction power meter. There are functions like RS485 communication and Lora communication on 470MHz. Withbuild-in MODBUS-RTU protocol, AEW100 can match most of the system integrate requirement. AEW100 has the advantage of higher accuracy, more compact and easy installing.
Technical Parameters
Model |
AEW100-D36X(3 pieces φ36mm split core current transfomers included) |
|||||
Technical data |
||||||
Input |
Net |
three-phase three-wire,three-phase four-wire |
||||
Frequency |
45~65HZ |
|||||
Voltage |
rated value |
3X220/380V,3X380V |
||||
reference frequency |
45~65Hz |
|||||
power consumption |
<2VA(every phase) |
|||||
Current |
rated value |
100A,200A,400A |
||||
input current |
3×1.5(6)A,3×20(100)A, 3×40(200)A,3×80(400)A,3×120(600)A |
|||||
start current |
1‰Ib(1.5(6)A) ,4‰Ib |
|||||
power consumption |
<2VA(max current) |
|||||
Accuracy |
Active energy accuracy |
class 1 ,0.5S (current 3×1.5(6)A using AKH-0.66/K-20 CT) |
||||
temperature accuracy |
±2℃ |
|||||
Pulse |
pulse duration |
80±20ms |
||||
pulse constant |
6400imp/kWh ,400imp/kWh,200imp/kWh,100imp/kWh,60imp/kWh |
|||||
Communication |
Lora |
Transmission on 470MHz and maximum distance in open areas is 1km |
||||
Infrared communication |
The constant baud rate is 1200 |
|||||
Interface |
RS485(A+,B-) |
|||||
dielectric |
Shielded twisted pair conductors |
|||||
Protocol |
Modbus RTU,DL/T645-07 |
|||||
Optional function |
Temperature measuring(TN) |
|||||
Environment |
temperature |
working temperature:-20~55℃ storage temperature:-30~70℃ |
||||
humidity |
≤95%(without condensation |
|||||
altitude |
<2000m |
|||||
Basic functions |
||||||
three phase(I,U,P,Q,S,PF,F measuring),total positive and negative active electrical energy counting, total positive and negative reactive electrical energy counting; |
||||||
2-31st harmonic and total harmonic analysis, sub-phase harmonic and fundamental harmonic electrical parameters(voltage,current and power); |
||||||
RS485,470HZ Lora communication,infared communication; |
||||||
current value 100A,200A and 400A,active energy accuracy class 1 and reactive energy accuracy class 2 |
||||||
Function
Dimension
Get voltage by Magnetic Steel
