Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > 10(60)A 220V 50HZ Single Phase Din Rail KWH Watt Hour Din-rail Energy Meters DDSD1352

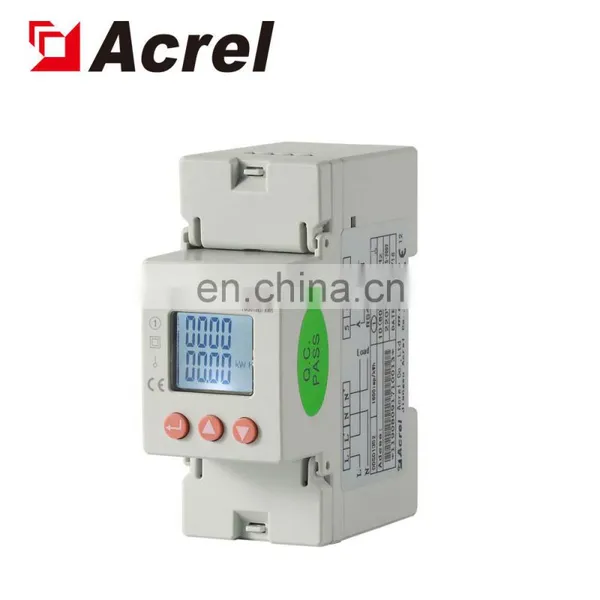

10(60)A 220V 50HZ Single Phase Din Rail KWH Watt Hour Din-rail Energy Meters DDSD1352
US$ 37.1 - 37.1
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
DDSD1352
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel DDSD1352-C 2P Din Rail Mounted Multi-function Single Phase Energy Meters With LCD DisplayUS$ 43.4 - 43.4MOQ: 1 Piece -
Manufacturing 2P Single Phase Din Rail Electric Power Smart Meters DDSD1352US$ 37.1 - 37.1MOQ: 1 Piece
-
Acrel Approved DDSD1352 Single Phase Din Rail Energy MetersUS$ 37.1 - 37.1MOQ: 1 Piece
-
Acrel 2P Kwh Meters Direct Connect 10(60)A DDSD1352US$ 37.1 - 37.1MOQ: 1 Piece
-
Acrel Energy Meters Used in Management Systems DDSD1352US$ 37.1 - 37.1MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
DDSD1352
Phase
Single Phase
Output Voltage
220V
Operating Temperature
-25℃~55℃
Dimensions
36mm*88 mm*70mm
Accuracy Class
1 class
Measuring Energy Range
000000.00~999999.99kWh
Outline and size
Instrument type |
length |
width |
height |
DDSD1352 |
88 |
36 |
70 |
Functions
Measurement of kWh: Single-phase active kWh (positive and negative)
Measurement of electrical parameters: Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency;
LCD Display:8 bits section LCD display;
Communication:Communication interface: RS485, Communication protocol: MODBUS-RTU;Infrared communication;
Key programming:3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol;
Pulse output:Active energy pulse output;
Multi-tariff:Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates;
