Home > Products > IOT Wireless Energy Meter > Acrel Three Phase LCD Display Electric Energy Meter DTSD1352

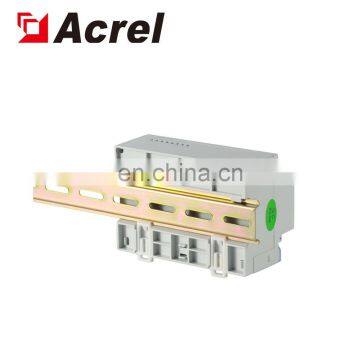

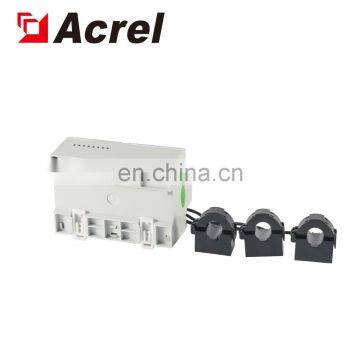

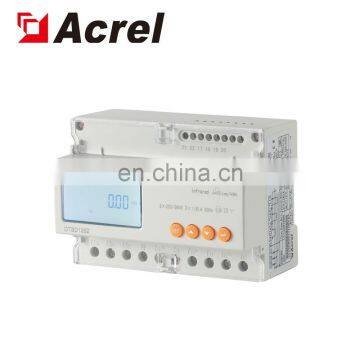

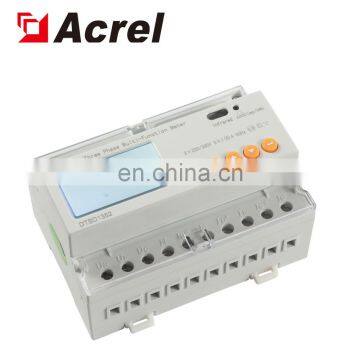

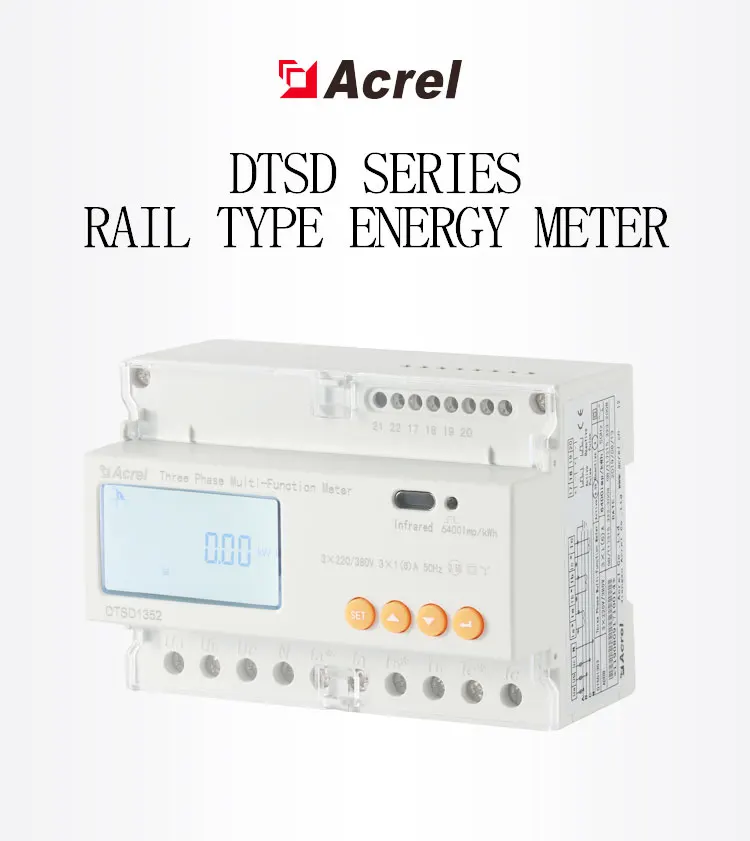

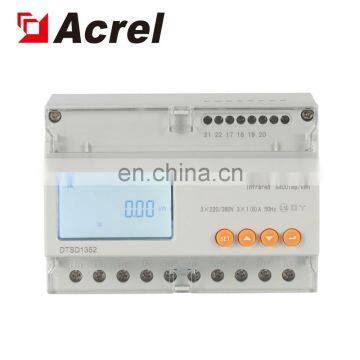

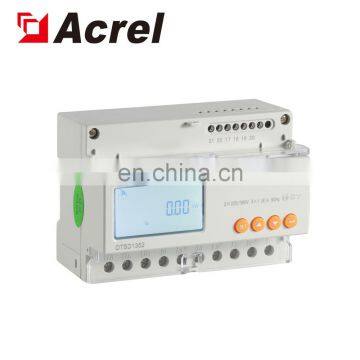

Acrel Three Phase LCD Display Electric Energy Meter DTSD1352
US$ 70 - 70
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
50Hz Din Rail 35mm Energy Meters AC380V 7P DTSD1352
-
Din Rail Mounted Remote Control Meter Three-phase Energy Meters DTSD1352
-
Hot Sell Electric Energy Meter Din Rail Electric Meters DTSD1352
-
7P Din Rail Mounting Meter Case for Electricity Energy Meters DTSD1352
-
Three Phase RS485 Modbus Din Rail Digital Energy Meter Acrel DTSD1352-C
-
Acrel DTSD1352-C Approved 3 Phase Din Rail KWH Energy Meter With RS485 Modbus 80A
Product Details
| Brand Name | Acrel | Place of Origin | China | |
| Model Number | DTSD1352 | Phase | Three Phase | |
| Output Voltage | 380V | Operating Temperature | -25℃~55℃ | |
| Dimensions | 126mm*88 mm*70mm | |||
| Accuracy Class | 0.5S class | Measuring Energy Range | 000000.00~999999.99kWh |
Product Description
Outline and size
Instrument type | length | width | height |
DTSD1352 | 88 | 126 | 70 |
Functions
Measurement
The meter can measure all electrical parameters such as voltage, current, active power, reactive power, apparent power, power factor, frequency, 31st harmonic and total harmonic. The value format of voltage, current, frequency and power are listed as below.
Example: U = 220.1V，f = 49.98Hz, I = 1.99A，P = 0.439kW
Calculating
The meter can calculate the current active energy, forward active energy, reversing active energy, forward reactive energy and reversing reactive energy.
Timing
The meter has 2 time lists, and can be divided into 4 time zones per year. Each time list can be divided into 8 time periods and 4 tariff (F1、F2、F3、F4). The main purpose of multi-tariff is promote the energy efficiency and economic benefits.
History data statistics
The meter can record last 48 months or last 90 days history energy in eac
Switching input and output
The switch input adapts the method of on-off signal input and powered by outer power supply.
It can be gotten by meter when there is a change of on or off via a switching input module. The parameter of switching input can not only get and show the state of local switching information but also achieve the communication via RS485, which called “remote information” function.
Temperature measurement
The meter support three path of outlay NTC temperature measurement, the range of temperature is -40℃~99℃.
Demand
Demand:The average power in the demand cycle.
Maximum demand:The maximum value of demand in a period of time.
Demand cycle:The time period between two same average value of demand.
The default demand cycle is 15 minutes, slip time is 1 minute.
The meter can measure 4 kinds of maximum demand: forward active, reversing active, inductance performance reactive, capacitance performance reactive maximum demand and the occur time.
