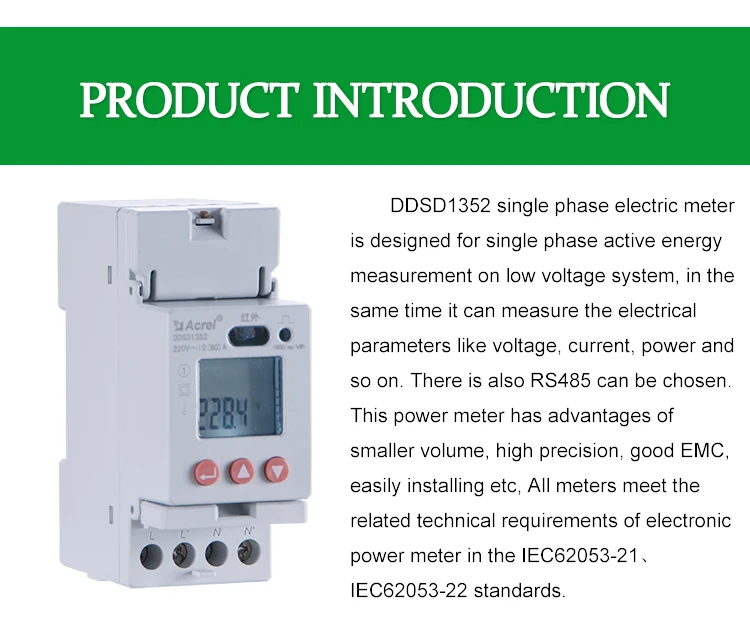

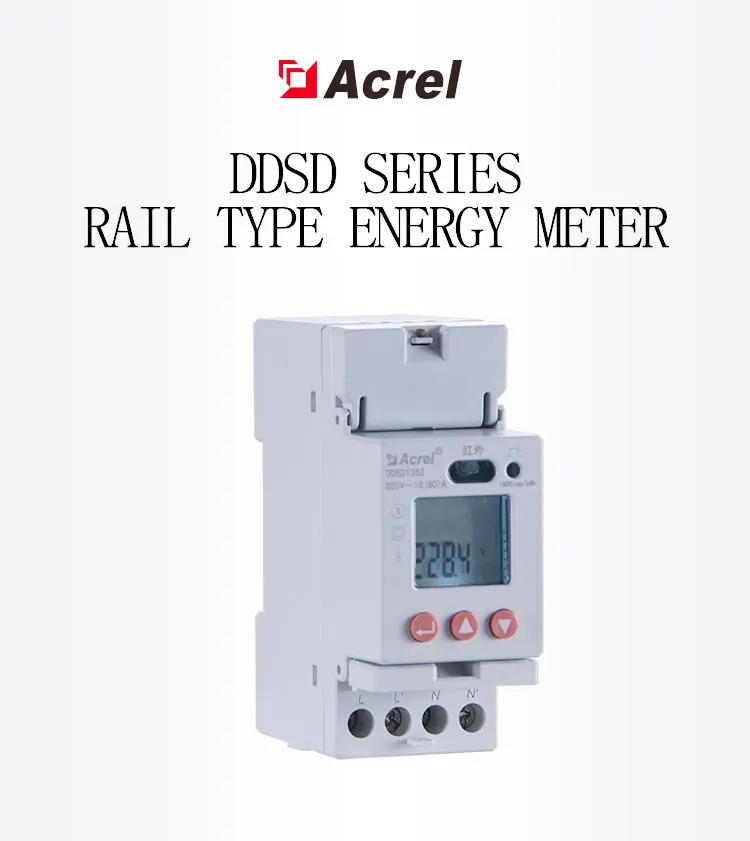

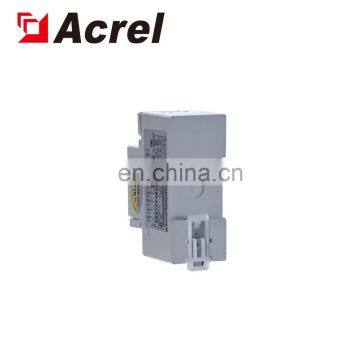

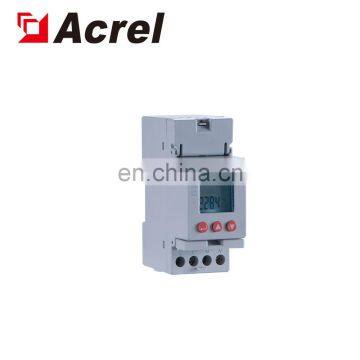

Acrel 2P Kwh Meters Direct Connect 10(60)A DDSD1352
US$ 37.1 - 37.1
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
Acrel Energy Meters Used in Management Systems DDSD1352
-
Din Rail Mount Three Phase Energy Meters for EV Charger Station Measurement Acrel DTSD1352
-
Acrel DTSD1352 1-6A Three Phase Energy Meters
-
Acrel Three Phase LCD Display Electric Energy Meter DTSD1352
-
50Hz Din Rail 35mm Energy Meters AC380V 7P DTSD1352
-
Din Rail Mounted Remote Control Meter Three-phase Energy Meters DTSD1352

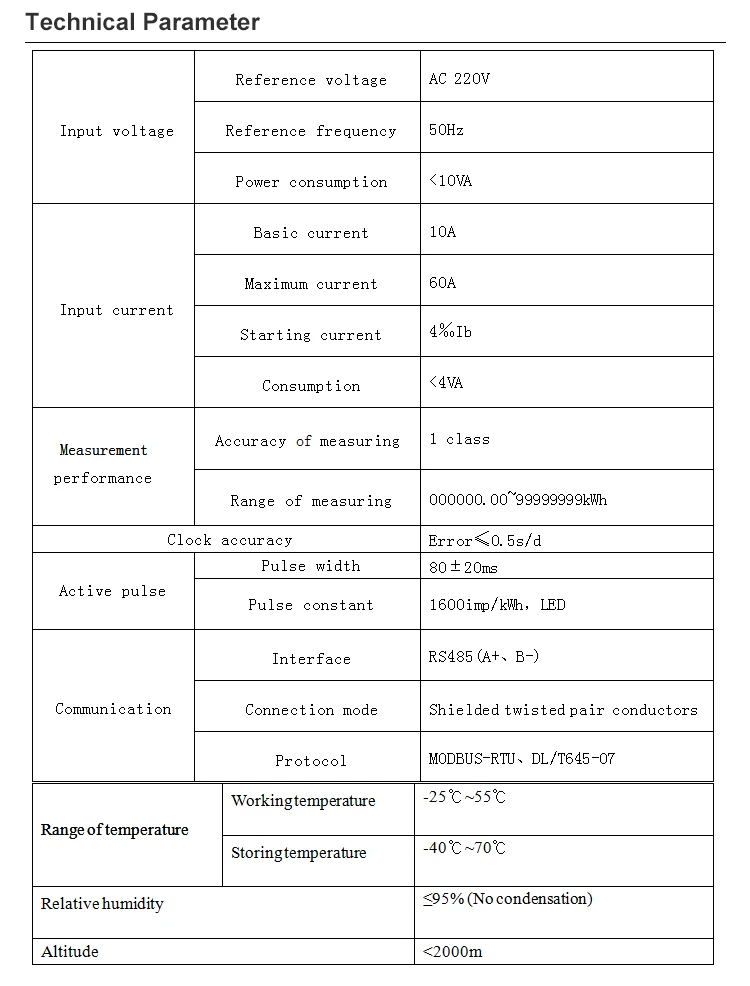

Product Details
| Brand Name | Acrel | Place of Origin | China | |
| Model Number | DDSD1352 | Phase | Single Phase | |
| Output Voltage | 220V | Operating Temperature | -25℃~55℃ | |
| Dimensions | 36mm*88 mm*70mm | |||
| Accuracy Class | 1 class | Measuring Energy Range | 000000.00~999999.99kWh |
Product Description

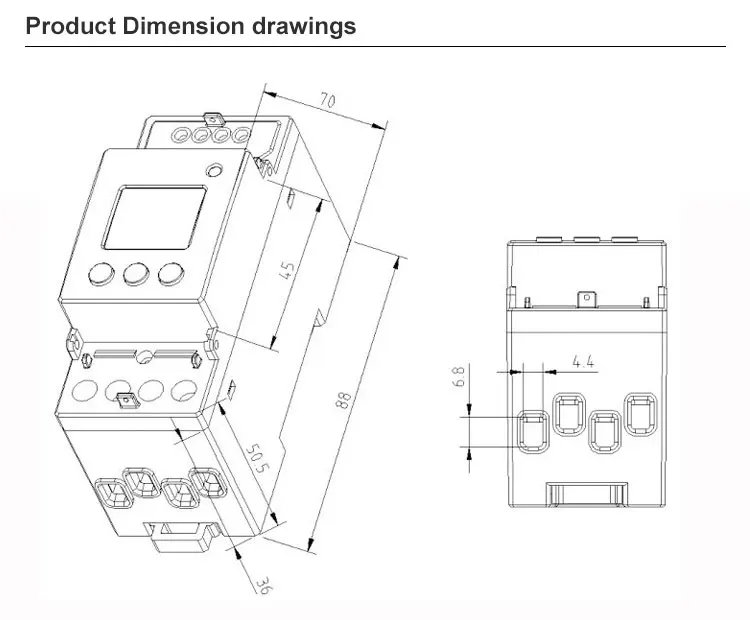

Outline and size
Instrument type | length | width | height |
DDSD1352 | 88 | 36 | 70 |
Functions
Measurement of kWh: Single-phase active kWh (positive and negative)
Measurement of electrical parameters: Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency;
LCD Display:8 bits section LCD display;
Communication:Communication interface: RS485, Communication protocol: MODBUS-RTU;Infrared communication;
Key programming:3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol;
Pulse output:Active energy pulse output;
Multi-tariff:Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates;
