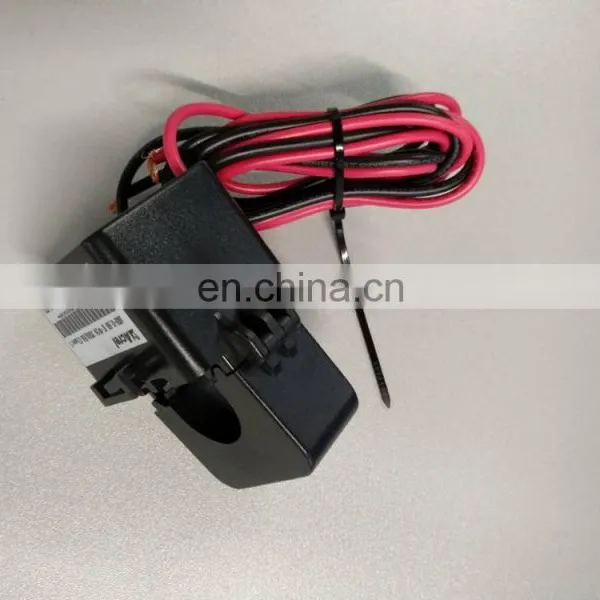

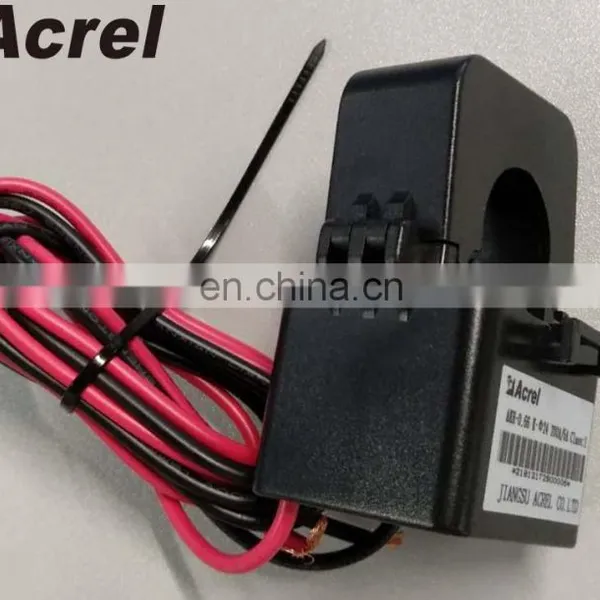

Acrel 300286 High Accuracy Split Core Current Transformer, Easily Installation Current Transformer
US$ 12.6 - 18
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
Jiangsu, China
Model Number:
AKH-0.66 K -36
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Voltage Split Core Ct, Current Transformer, High Accuracy AC Current SensorUS$ 9 - 12MOQ: 1 Piece -
ACREL Measuring Transformer AKH-0.66 W-20 With Rated Current 5A Ratio 20mAUS$ 3.5 - 3.5MOQ: 1 Piece
-
Acrel AKH-0.66-K-Φ24 Class 1.0 Split Core Current TransformerUS$ 7.7 - 7.8MOQ: 1 Piece
-
AKH-0.66-K-24 150/5A CT/low Voltage Split Core Current TransformerUS$ 7.7 - 7.8MOQ: 1 Piece
-
AKH-0.66-K-36 300-600A/5A 1 Class Accuracy Split Core Current Transformer/Split Core CTUS$ 7.7 - 7.8MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
Jiangsu, China
Model Number
AKH-0.66 K -36
Usage
Electronic
Phase
Single
Coil Number
Autotransformer
Coil Structure
Toroidal
High Accuracy Split Core Current Transformer, easily installation current transformer
Application
Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.
Spec.
| Model | Rated current ration(A) | Accuracy | Rated load(VA) | Hole size(mm) |
| AKH-0.66/K-φ10 | 5A/1.67mA | 0.5 | 10 | φ10 |
| 5A/2.5mA | ||||
| 10A/5mA | ||||
| 40-50A/20mA | ||||
| 80A/26.7mA | ||||
| AKH-0.66/K-φ16 | 120A/40mA | 0.5 | 10 | φ16 |
| 40-100A/20mA | ||||
| 80A/32mA | ||||
| AKH-0.66/K-φ24 | 60-200A/20mA | 0.5 | 10 | φ24 |
| 200A/40mA | ||||
| AKH-0.66/K-φ36 | 400A/50mA | 0.5 | 10 | φ36 |
| 400A/40mA | ||||
| 600A/75mA | ||||
| 200-400A/20mA |
