Product Introduction
They are patented products with beautiful appearance, convenient installation and wiring, mainly used in power operations and electricity reconstruction projects. Generally, output are standard signal. The advantages of small size, high precision, strong carrying capacity and convenient installation, saving the manpower, material resources, financial resources and improve the efficiency for users.

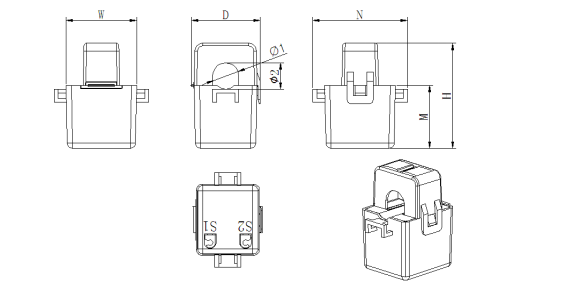

Spec. and size
The transformers’ secondary outlet wire is 1.5mm² lead, whose standard length is 1m(±10cm error allowed)
Spec.
Size | Outline Size（mm） | Hole size（mm） | Tolerance（mm） | |||||
W | H | D | M | N | Φ1 | Φ2 | ||
K-Φ24 | 39 | 71 | 46 | 36 | 52 | 24 | 23.5 | ±1 |
K-Φ36 | 42.5 | 82 | 58 | 40 | 56 | 33.5 | 35 | |
Cross-reference tables of spec. -parameter
Type | Rated current ratio | Precision degree | Wear heat NO. of turns | Hole size （mm） | |
Class0.5 | Class1 | ||||
K-Φ24 | (150-300)A/5(1)A | √ | 1 | Φ24 | |
K-Φ36 | (300-400)A/5(1)A | √ | 1 | Φ36 | |
(500-600)A/5(1)A | √ | 1 | |||
Service Environment
l Rated working voltage AC0.66kV（equivalent to AC0.69kV，GB156-2003）
l Rated frequency 50-60Hz
l Environment temperature: -30℃~70℃
l Altitude ≤3000m
l power frequency withstand voltage 3000V/1min 50Hz
l Used in places without direct invasion of rain and snow, serious pollution and violent vibration

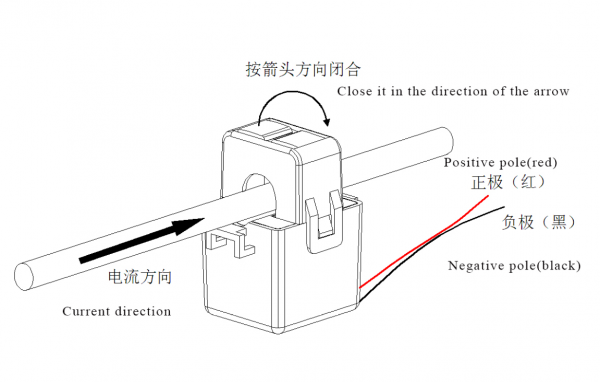

Installation method
Certificate
Customers
Company Profile
Acrel Co.,Ltd.[Stock Code:300286.SZ] is a professional company in china who provides various systematic solutions of power monitoring,energy management and electrical safety for smart grid users.
Since June 2003,we have always been focused on the research,production and sales of intelligent electric meters.We concentrate on providing products and services to help customers improve electricity efficiency and safety.So far we have had the following comprehensive solutions for different applications:35(10)/0.4KV substation antomation system,power quality management system for medical location,precise distribution management system,smart lighting control system,remote orepayment metering system and motor control center.

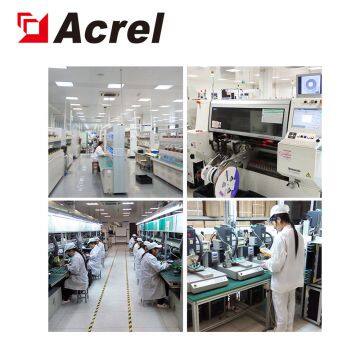

Jiangsu Acrel Electrical Manufacturing Co.,LTD,our production base in Jiangyin City,Wuxi,provides guarantee for the industrialization and large-scare implementation of products.The annual production capacity of various meters is 2 million units,and more than 1.3 million units are sold in 2018.
