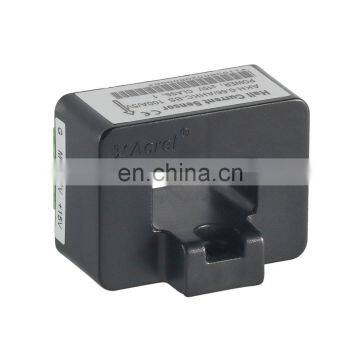

Acrel AHKC-BS AC Variable Speed Drives Small Package Size Hall Effect Current Transducer Measurement
US$ 7 - 7
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
Jiangsu, China
Model Number:
AHKC-BS
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel AHKC-BS AC Variable Speed Drives AC,DC Current Signals Measuring Hall Effect Current Transducer MeasurementUS$ 7 - 7MOQ: 1 Piece -
Acrel AHKC-BS AC Variable Speed Drives DC Current Sensor Hall Effect Current Transducer MeasurementUS$ 7 - 7MOQ: 1 Piece
-
Acrel AHKC-BS AC Variable Speed Drives 5V/4V Output Hall Effect Current Transducer MeasurementUS$ 7 - 7MOQ: 1 Piece
-
Acrel AHKC-BS AC Variable Speed Drives High Frequency Hall Effect Current Transducer MeasurementUS$ 7 - 7MOQ: 1 Piece
-
Acrel AHKC-BS AC Variable Speed Drives 50a 500a Hall Effect Current Transducer MeasurementUS$ 7 - 7MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
Jiangsu, China
Model Number
AHKC-BS
AHKC-BS Hall Sensor
Measurement
- AC, DC, pulse and other complex current
Appearance
- Small package size
- Low power consumption
- Extended measuring range
- AC, DC, pulse and other complex current
Appearance
- Small package size
- Low power consumption
- Extended measuring range
Input | 0-50-500A | ||||||
Output | 5V/4V | ||||||
Power supply | ±15V | ||||||
Accuracy | 1 class | ||||||
Attention:
1. When the hall sensor is used, in order to obtain better dynamic characteristics and sensitivity, attention must be paid to the coupling between the primary side coil and the secondary side coil. It is recommended to use a single wire and the wire completely fills the hall sensor module wire hole;
2. When the hall sensor is used, the best measurement accuracy can be obtained under the rated input current value. When the measured current is far lower than the rated current To obtain the best accuracy, multiple turns can be used for the primary side, i.e. IPNP = rated ampere turns. In addition, the temperature of the primary side feeder shall not exceed 80 ℃;
3. The auxiliary power supply of Hall current sensor shall not exceed ± 20% of the calibrated value when it works normally;
4. Hall current sensor shall not fall from a high place (≥ 1m) during installation and use;
5. It is unable to adjust the zero point and full degree adjustment potentiometer;
6. Auxiliary power supply needs to be configured by itself;
7. The positive and negative poles of the power supply cannot be reversed.
