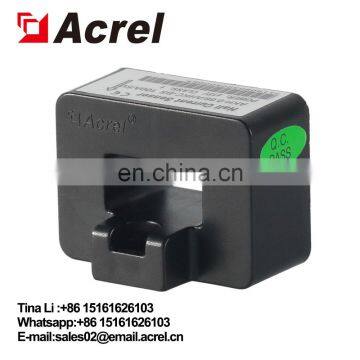

Acrel AHKC-BS AC variable speed drives DC current sensor hall effect split core current transmitter

Name: Acrel AHKC-BS AC variable speed drives DC current sensor hall effect split core current transmitter
Brand: Acrel
Price: USD $7 - 7 / Piece

FOB Price

USD $7 - $7 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Acrel

Place of Origin:

Jiangsu, China

Model Number:

AHKC-BS

Packaging Details

It is packed in a crash bag and then put into a cardboard box.

Product Description

AHKC-BS Hall Sensor

Measurement
- AC, DC, pulse and other complex current

Appearance
- Small package size
- Low power consumption
- Extended measuring range

Input			0-50-500A
Output			5V/4V
Power supply			±15V
Accuracy			1 class

Attention: 1. When the hall sensor is used, in order to obtain better dynamic characteristics and sensitivity, attention must be paid to the coupling between the primary side coil and the secondary side coil. It is recommended to use a single wire and the wire completely fills the hall sensor module wire hole;

2. When the hall sensor is used, the best measurement accuracy can be obtained under the rated input current value. When the measured current is far lower than the rated current To obtain the best accuracy, multiple turns can be used for the primary side, i.e. IPNP = rated ampere turns. In addition, the temperature of the primary side feeder shall not exceed 80 ℃;

3. The auxiliary power supply of Hall current sensor shall not exceed ± 20% of the calibrated value when it works normally; 4. Hall current sensor shall not fall from a high place (≥ 1m) during installation and use; 5. It is unable to adjust the zero point and full degree adjustment potentiometer; 6. Auxiliary power supply needs to be configured by itself; 7. The positive and negative poles of the power supply cannot be reversed.

Company Profile

Jiangsu Acrel Electrical Manufacturing CO.,LTD

Acrel Co., Ltd.[stock code: 300286.sz] is a high-tech enterprise integrates R&D, production, sales and service, since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors. At present, more than 8,000 sets of various solutions are running all over the country, help users to realize the visual management of energy consumption, provide users the energy data services, and escort users an efficient and safe energy consumption.

Acrel energy efficiency management system including substation operations and maintenance cloud platform, electricity safety management cloud platform, Environmental equipment power consumption monitoring cloud platform, prepaid management (system) cloud platform, intelligent power distribution monitoring system, power quality management system, building energy consumption management system, industrial energy control platform, leakage power monitor and control system, fire-fighting device power monitoring system, fire-proof door monitoring system, emergency lighting and evacuation indicating system, EV charger management system, data center power&environment monitoring system, smart lighting control system, IT isolation power supply system and related products.

Jiangsu Acrel Electrical Manufacturing Co., LTD., the manufacturer base located in Jiangyin, Wuxi City, is a pioneer enterprise integrates the informatization and industrialization of Jiangsu province. It has a multiple function product test center(CNAS certified), which can carry out a variety of tests on environment, electromagnetic compatibility, safety and reliability. The production relies on the advanced information management system and strictly follow the ISO9001 management standard, which provide a guarantee for industrialization and large-scale implementation of the products. The annual capacity of the electrical meter is 2 million sets, 1.5 million power transformers and 10,000 sets of energy-saving cabinets.
