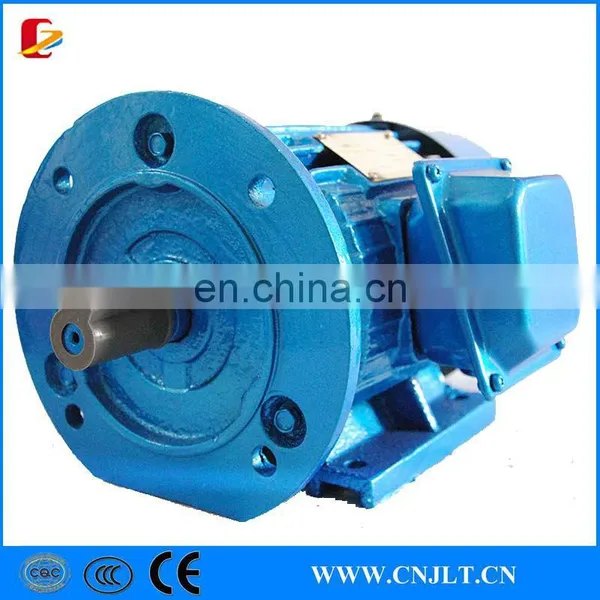

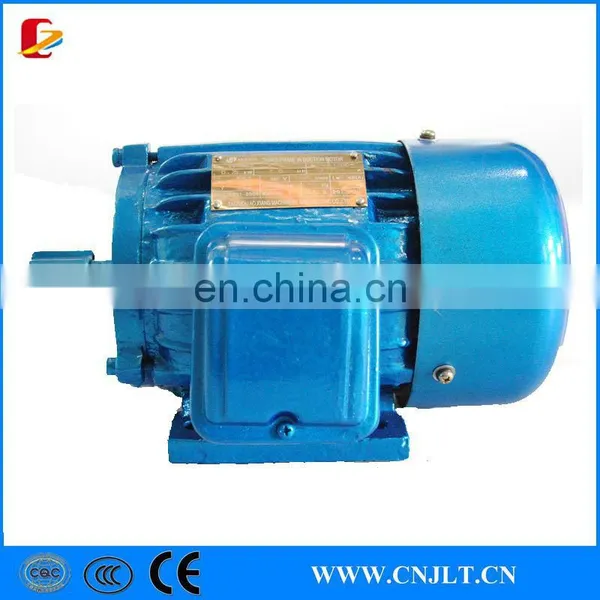

Electric Motor(Y, Y2, YC, YCL, JY, ML, MS, MY) photo-1

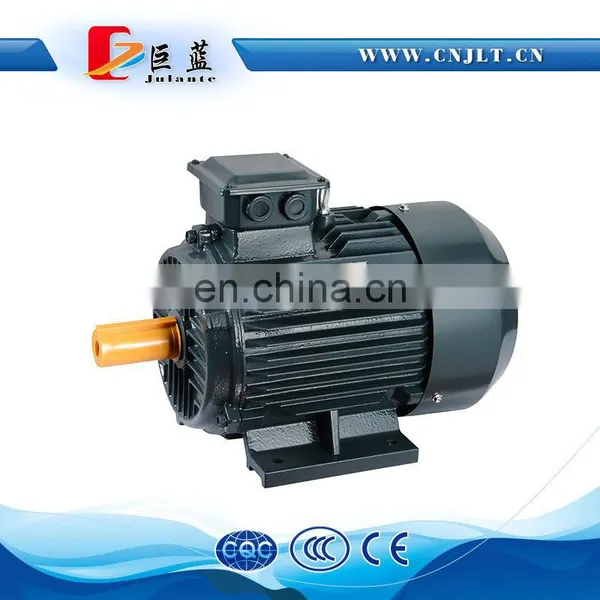

Electric Motor(Y, Y2, YC, YCL, JY, ML, MS, MY) photo-2

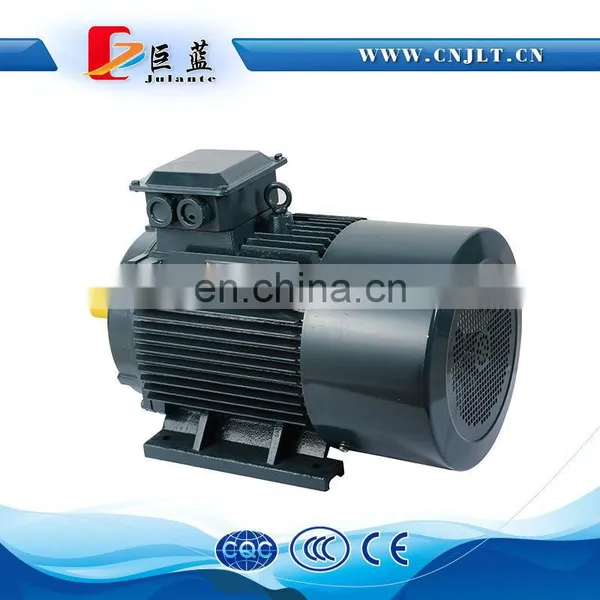

Electric Motor(Y, Y2, YC, YCL, JY, ML, MS, MY) photo-3
Electric Motor(Y, Y2, YC, YCL, JY, ML, MS, MY) photo-4

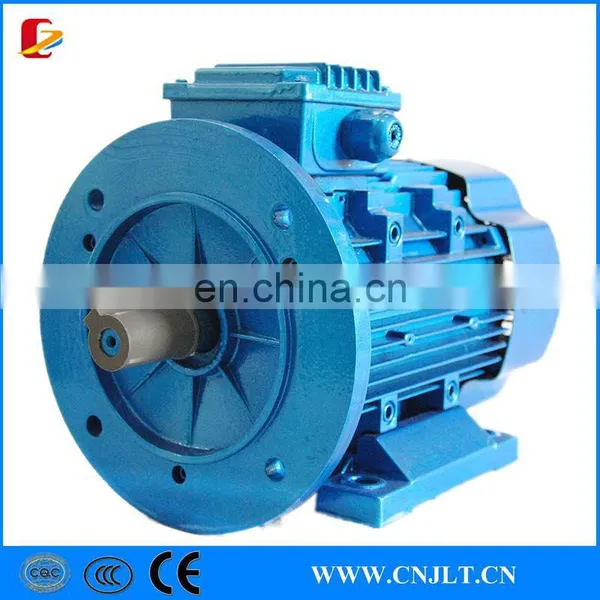

Electric Motor(Y, Y2, YC, YCL, JY, ML, MS, MY) photo-5
Electric Motor(Y, Y2, YC, YCL, JY, ML, MS, MY) photo-6
US$ 100 - 1,000 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
julante
Place of Origin:
Zhejiang, China
Type:
Asynchronous Motor
Contact Supplier Request Quote Chat Now
Taizhou Julante Electromechanical Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo OR Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name julante
Place of Origin Zhejiang, China

electric motor( (Y, Y2, YC, YCL, JY, ML, MS, MY)



STANDARD Y2 three phase electric motor (EFFICIENCY 2 STANDARD)



        Y2 Series Three Phase Motor Photo                electric motor(Y, Y2, YC, YCL, JY, ML, MS, MY)

Poles: 2 / 4 / 6 / 8 poles

Frame: 56~355 in cast iron / aluminum housing



GOST standard, totally enclosed fan cooled(TEFC) squirrel cage type. ·The motors have the merits of beautiful modelling, compact structure, low noise, high efficiency, large starting torque, easy serving, etc.



Y2 series motors can be widely used in various machines and equipments, such as drilling machines, blowers, pumps,compressors, transporters, agricultural and food processing machines



Main Technical Specifications:



Ambient temperature: -15≤θ≤40

Altitude: Not exceeding 1000meters

Rated voltage: 380V±5%

Rated frequency: 50Hz/60Hz

Connection: Y Start-connection for 3kW and below Delta-connection for 4kW or more

Duty/Rating: Continuous(S1)

Insulation class: Class F

Protection class: The main body of the motor IP54 The terminal box IP55

Cooling method: IC0141







Y2 series three phase squirrel cage electric motor
3) Rated voltage: 380/660v
4) Frequency: 50Hz, 60Hz
5) Protection class: IP54
6) Insulation class: B
7) Materials: cast iron, aluminum (FRAME 63-160)
8) EFF: EFF3, EFF2, EFF1
9) Poles: 2, 4, 6, 8,
10) Cooling method: IC411 (total-enclosed fan-cooled type)
11) Mounting types: IMB3,
12) Operating mode: S1
13) Connection: "Y" type for 3kW and downwards, "D" type for 4kW and upwards
14) Ambient temperature: -35oC and 40oC
15) The altitude should be lower than 1,000m above the sea level
16) Relative humidity: not higher than 90%
17) Special motors can be designed according to customers' requirements

Inner packing:
1) Frame 63-112: foam boxes
2) Frame 132-315: wooden boxes





BENIFITS TO CLIENT:



  • Reliable operation
  • High efficiency
  • Low noise
  • Long life
  • Power saving
  • Slight vibration
  • Try our best to meet customers' requirements, including voltage and frequency etc.
  • It is newly designed in conformity with the relevant rules of IEC standards
  • Special rotor balance for reduced vibration
  • Warranty: 12 months from date of delivery.







OPERATION CONDITIONS:



  •     Duty:    S1
  • Frequency:    50/60HZ
  • Rated voltage:    380/415V
  • Protection class:     IP44, IP54, IP55
  • Cooling method:      IC0141
  • Ambient temperature:    -15°C-45°C
  • Alititude should be lower than 1000 meters above sea level

YC,YY,YL (cast iron )  and  MC,MY,ML (aluminum) series single phase capacitor electric motor

Starting , running, two-value capacitor

Frame size(Centre height)  : 71~132mm

Rated output power: 0.09kW~7.5kW(0.16HP~10HP)

Rated voltage :220 or 380V or order

Rated frequency:50 or 60 Hz

Protection class: IP44

Insulation class :B

Duty type :S1

Mounting type : B3,B5,B35,B14,B34,V1 etc.

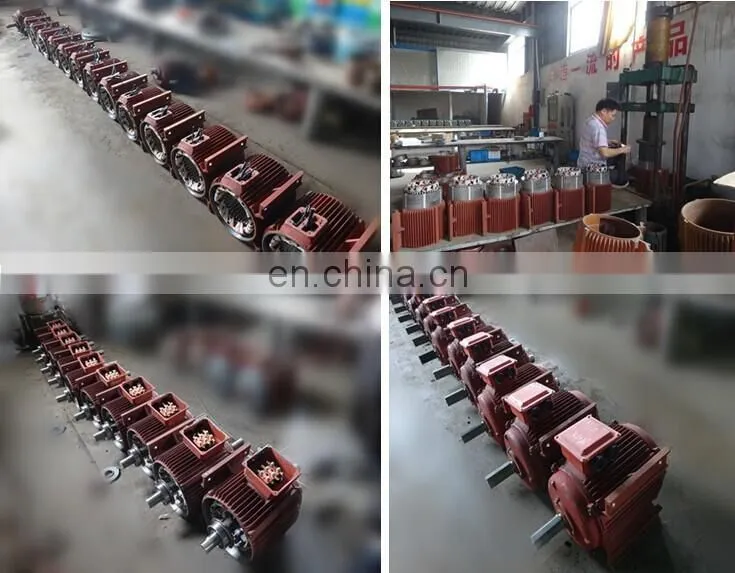

Manufacturing proces

electric motor(Y, Y2, YC, YCL, JY, ML, MS, MY)





electric motor(Y, Y2, YC, YCL, JY, ML, MS, MY)

 electric motor(Y, Y2, YC, YCL, JY, ML, MS, MY)

Packing pictures of electric motors




Our Services

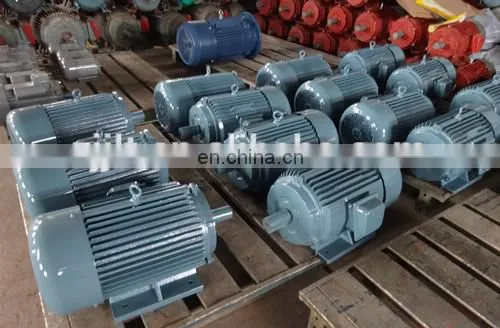

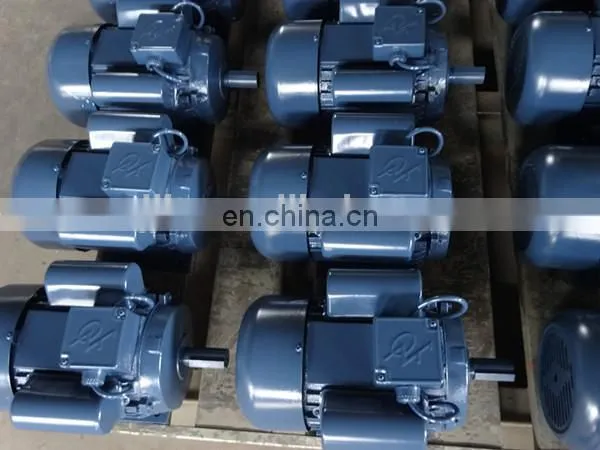

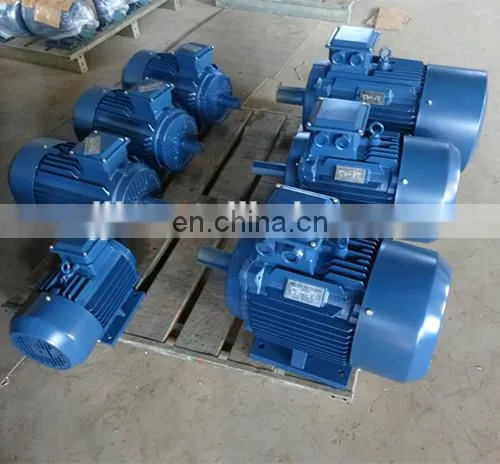

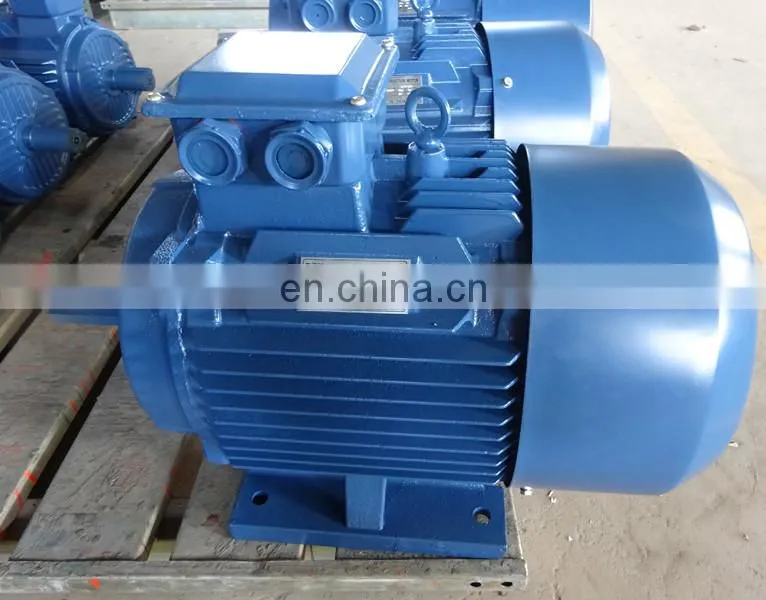

Motor photos:



 electric motor(Y, Y2, YC, YCL, JY, ML, MS, MY)

electric motor(Y, Y2, YC, YCL, JY, ML, MS, MY)



 electric motor(Y, Y2, YC, YCL, JY, ML, MS, MY)

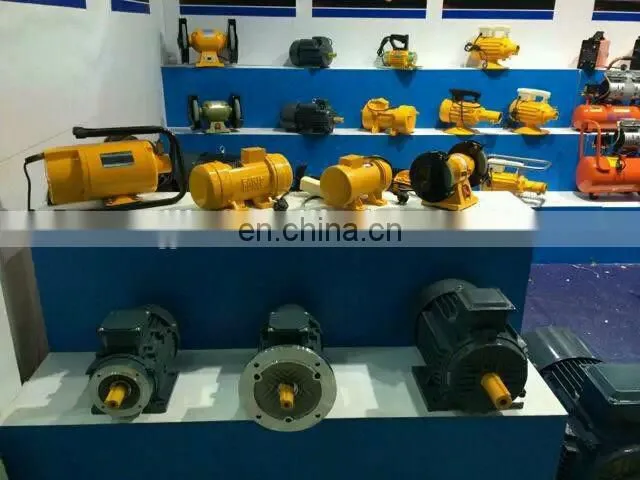

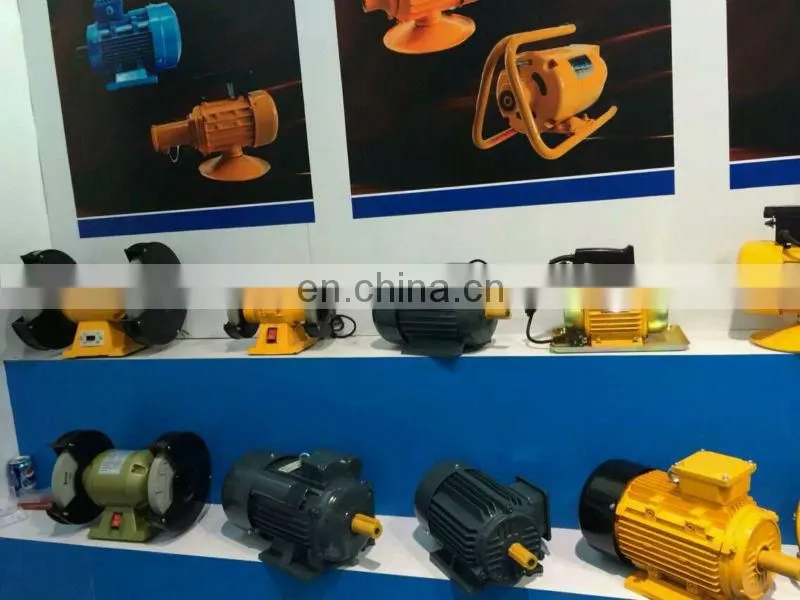

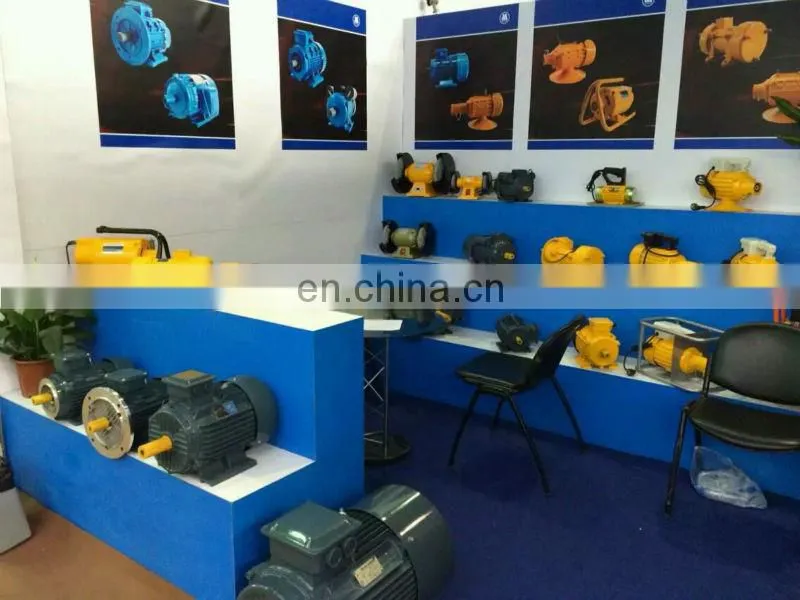

Canton Fair/Electric motors on exhibition
