YC Series Capacitance Single-phase Asynchronous Motor

YC Series Capacitance Single-phase Asynchronous Motor thumbnail-1
YC Series Capacitance Single-phase Asynchronous Motor thumbnail-2
YC Series Capacitance Single-phase Asynchronous Motor thumbnail-3
YC Series Capacitance Single-phase Asynchronous Motor thumbnail-4
YC Series Capacitance Single-phase Asynchronous Motor thumbnail-5
YC Series Capacitance Single-phase Asynchronous Motor thumbnail-6
YC Series Capacitance Single-phase Asynchronous Motor photo-1
YC Series Capacitance Single-phase Asynchronous Motor photo-2

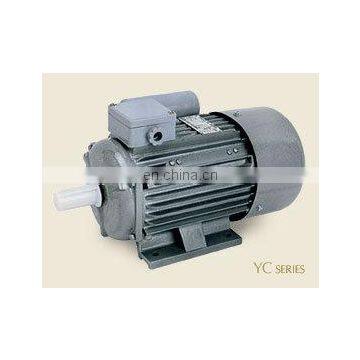

YC Series Capacitance Single-phase Asynchronous Motor photo-3
YC Series Capacitance Single-phase Asynchronous Motor photo-4
YC Series Capacitance Single-phase Asynchronous Motor photo-5
YC Series Capacitance Single-phase Asynchronous Motor photo-6
US$ 47 - 47 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
julante
Place of Origin:
Zhejiang, China
Model Number:
YC
Contact Supplier Request Quote Chat Now
Taizhou Julante Electromechanical Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name julante
Place of Origin Zhejiang, China
Model Number YC

Protection Class: IP44/IP54/IP55 Cooling Type: IC0141
Insulation Class:B or F    Operation Type: S1
Rated Voltage: 115/230,220V        Rated Frequency: 60 Hz(50Hz)
Shell material: casting iron and aluminium alloy (only used below 100)



 type                hp         kw     current power factor eff             speed     rated toque        rated current       max toque

YC7112

1/4

0.18

1.89

0.72

60

2800

3.0

7

1.8

YC7122

1/3

0.25

2.4

0.74

64

2800

3.0

7

1.8

YC8012

1/2

0.37

3.4

0.77

65

2800

2.8

6.5

1.8

YC8022

3/4

0.55

4.7

0.79

68

2800

2.8

6.5

1.8

YC90S-2

1

0.75

6.1

0.8

70

2800

3.0

6.5

1.8

YC90L-2

1.5

1.1

8.7

0.8

72

2800

2.5

7

1.8

YC90L-2

2

1.5

11.4

0.81

74

2800

2.5

7

1.8

YC100L-2

3

2.2

16.5

0.81

75

2800

2.2

7

1.8

YC100L1-2

4

3

21.88

0.82

76

2800

2.2

6.8

1.8

YC100L-2

5

3.7

26.64

0.82

77

2800

2.2

6.4

1.8

YC112M-2

4

3

21.4

0.82

76

2800

2.2

7

1.8

YC7114

1/6

0.12

1.88

0.58

50

1400

3.0

9

1.8

YC7124

1/4

0.18

2.49

0.62

53

1400

2.8

7

1.8

YC8014

1/3

0.25

3.11

0.63

58

1400

2.8

6

1.8

YC8024

1/2

0.37

4.24

0.64

62

1400

2.5

6

1.8

YC90S-4

3/4

0.55

5.5

0.69

66

1400

2.5

6

1.8

YC90L-4

1

0.75

6.9

0.73

68

1400

2.5

6.5

1.8

YC90L-4

1.5

1.1

9.6

0.74

71

1400

2.5

6.5

1.8

YC100L-4

2

1.5

12.5

0.75

73

1400

2.5

6.5

1.8

YC112M-4

3

2.2

17.8

0.76

74

1400

2.2

6.5

1.8

YC132S-4

4

3

23.6

0.77

75

1400

2.1

6.5

1.8

YC132S-4

5

3.7

28

0.79

76

1400

2.1

6.5

1.8

YC132M-4

7.5

5.5

32.5

0.95

81

1400

2.1

6.5

1.8



OPERATION CONDITIONS:

  • Rated Frequency:    50HZ
  • Rated voltage:    220V
  • Protection class:     IP44
  • Cooling method:      IC411
  • Ambient temperature:    -15°C-45°C

BENIFITS TO CLIENT:

  • Reliable operation
  • High efficiency
  • Low noise
  • Long life
  • Power saving
  • Slight vibration
  • Try our best to meet customers' requirements, including voltage and frequency etc.
  • It is newly designed in conformity with the relevant rules of IEC standards
  • Special rotor balance for reduced vibration
  • Warranty: 12 months from date of delivery.













Feel free to contact us if you are interested in our electric motors.
