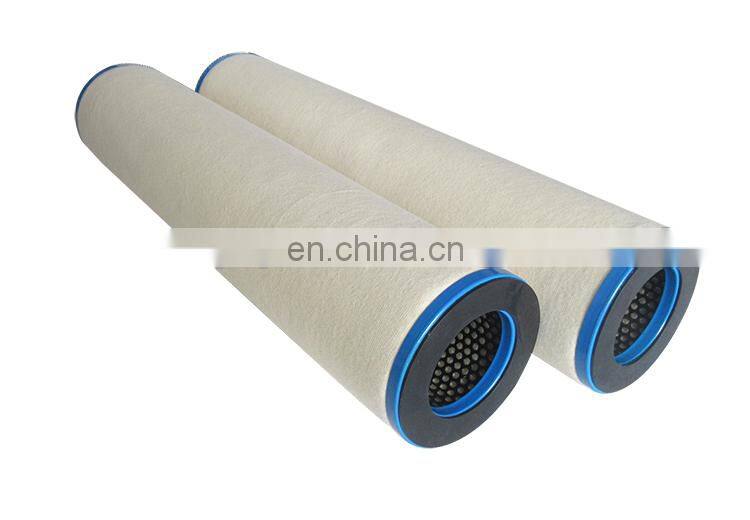

Gas Coalescence Filter Jfg336-ce-r,fg336 Used Import Material photo-1

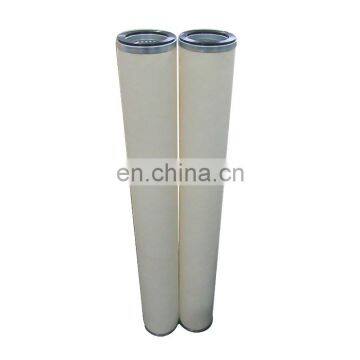

Gas Coalescence Filter Jfg336-ce-r,fg336 Used Import Material photo-2

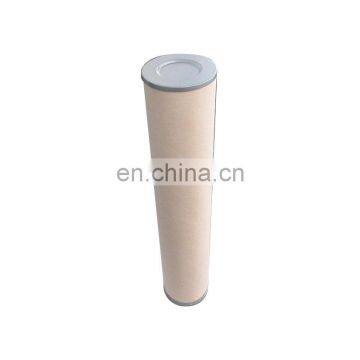

Gas Coalescence Filter Jfg336-ce-r,fg336 Used Import Material photo-3

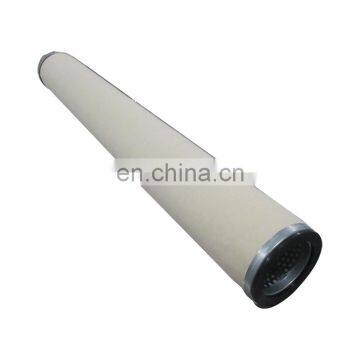

Gas Coalescence Filter Jfg336-ce-r,fg336 Used Import Material photo-4
Gas Coalescence Filter Jfg336-ce-r,fg336 Used Import Material photo-5
Gas Coalescence Filter Jfg336-ce-r,fg336 Used Import Material photo-6
US$ 10 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Topep
Place of Origin:
Henan, China
Certification:
ISO CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghao Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Topep
Place of Origin Henan, China
Certification ISO CE
Warranty 1 Year
Weight As your quantity
Dimension(L*W*H) customized
Condition New
gas coalescence filter jfg336-ce-r,fg336 used import material
Product Description

The coalescing filter element is made of a variety of composite materials through a special process, which has hydrophilic characteristics. It can not only filter out mechanical impurities in the medium, but also can make the emulsified water from the medium through demulsification and coalescence. A filter element that separates and coalesces into larger water droplets to facilitate further purification of the medium.

gas coalescence filter jfg336-ce-r,fg336 used import material



SpecificationPerformance
Outer diameter
3.5 inches, 4.5 inches, 6 inches;
length
16, 18, 20, 32, 36, 40, 72 inches
Filter skeleton material
Stainless steel and carbon steel
Accuracy range
Less than 0.3 microns, 0.3 microns, 0.5 microns, 1 microns, 5 microns, 10 microns
Initial pressure difference
≤0.15psig
Replace differential pressure
<0.6psig
Operating temperature
0 ~ 150 ℃



Application

 1. Aviation fuel, gasoline, kerosene, diesel;
2. Liquefied petroleum gas, stone tar, benzene, toluene, xylene, cumene, polypropylene, etc .;
3. Steam turbine oil and other low-viscosity hydraulic oils and lubricants;
4.Cycloethane, isopropanol, cycloethanol, cycloethanone, etc;
5. Other hydrocarbon compounds.

gas coalescence filter jfg336-ce-r,fg336 used import material

Product process

 gas coalescence filter jfg336-ce-r,fg336 used import material



gas coalescence filter jfg336-ce-r,fg336 used import material

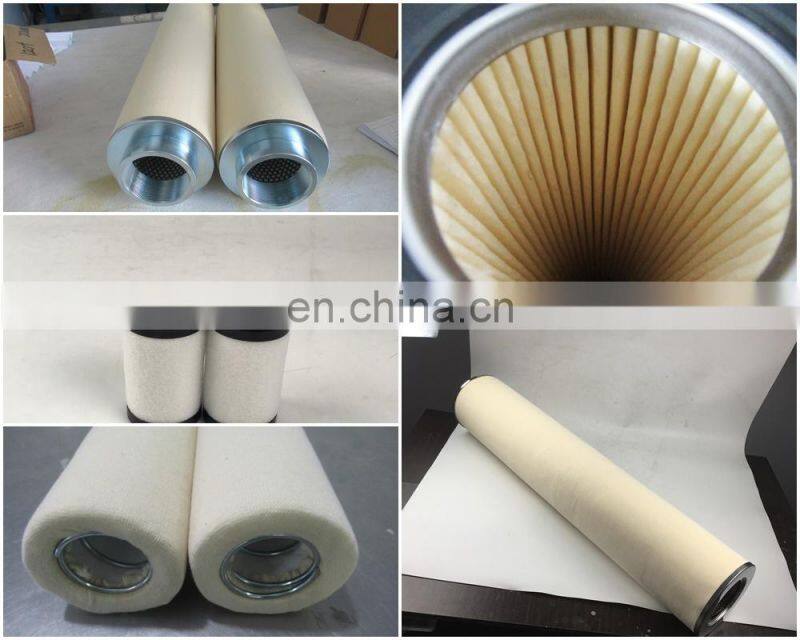

Detailed Images
