Nodes starting from DIA90mm diameter (90,110,130,160,200,240,280,300,350...) shall be produced with C45 quality material in conformance with the GB standard, with hot forging in normalized condition and/or machining production techniques.

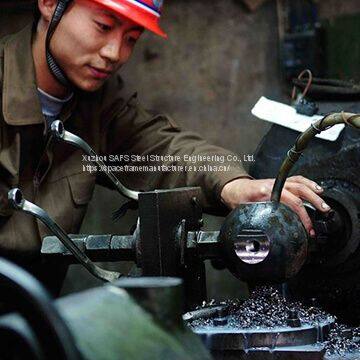

Required bolt connection holes shall be drilled and tapped with digitally controlled drilling machines.
Home > Construction & Decoration > Prefabricated Building > Steel Structure Building > Space Frame Bolt Ball

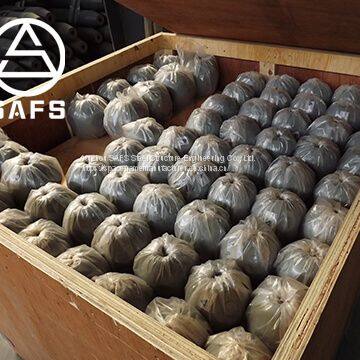

Space Frame Bolt Ball
US$ 30 - 80
MOQ: 200 Square Meters
Key Specifications
Get Latest Price
Brand Name:
SAFS
Place of Origin:
China
Model Number:
SAFS-SMR000015
Payment & Shipping
Payment Methods:
Port of Shipment:
Lianyungang, Qingdao, Shanghai
Delivery Detail:
30 days
Related Products
Brand Name
SAFS
Place of Origin
China
Model Number
SAFS-SMR000015
Type
Light
Application
Structural Roofing
Standard
AISI, ASTM, BS, DIN, GB, JIS
Grade
Steel material
Dimensions
Requested
Product Description
Technical Advantages
Load applied to the nodes
Each node has up to 18 threaded holes as pin jointed connections
Gives greatest freedom in design

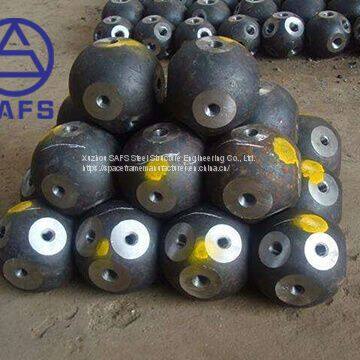

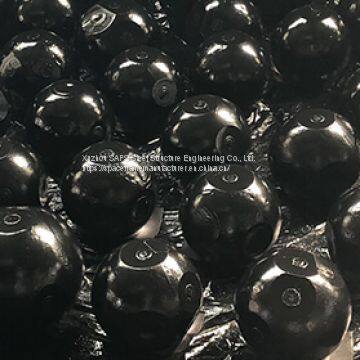

The nodes are balls, to give a free selection for the connection holes. The standard ball nodes have diameters from 49.5mm to 350mm. To connect several members to a relatively small node, the members will have to be conical at the ends.
SAFS Email:safs139@safsteelstructure.com
Technical Specifications
|
Material
|
Code
|
Spec.
|
Chemical Content |
Physical Performance |
||||||
C（%） |
Si（%） |
Mn（%） |
P（%） |
S（%） |
Tensile Strength σs（MPa） |
Yield Strength σb（MPa） |
Elongation δ（%） |
|||
C45 |
GB/T699-1999 |
Φ90mm-Φ350mm |
0.42~0.50 |
0.17~0.37 |
0.50~0.80 |
≤0.035 |
≤0.035 |
≥600 |
≥355 |
≥16 |
