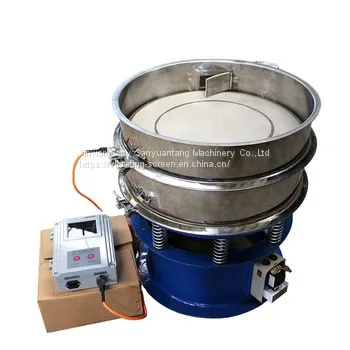

High Efficiency Ultrasonic Vibrating Screen
- 100 Set / Sets per Month
- qingdao
- T/T Credit Card PayPal Cash Other
Product Details
Brand Name: | Sanyuantang | Place of Origin: | China | Type: | Other, Series of rotary vibating screen |
Certification: | CE,ISO | After-sales Service Provided: | No overseas service provided | Warranty: | One year ,24 hours technical support. |
Weight: | According customer's require. | Dimension(L*W*H): | According customer's require. | Voltage: | 220V/380V/415V/450V |
Condition: | New | Power(W): | 0.75KW |
Product Description
High Efficiency Ultrasonic Vibrating Screen
Product Description

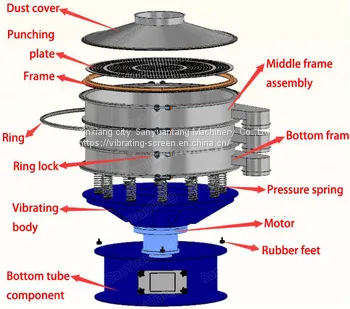

Screens a practical and reliable screening system, which is developed by our company to resolve the current mesh plug problems’ most effective solution. Ultrasonic Vibrating Screen is composed of ultrasonic power, transducer and sympathetic vibration ring. Transducers change the high frequency current which supplied by the ultrasonic power into sinusoidal vertical wave of oscillation (ultrasonic wave), these ultrasonic wave reached the sympathetic vibration ring generate
resonance, then evenly transferred to the screen surface.
Sieve materials while doing the low-frequency vibration, superimposed on the ultrasonic vibration, it can not
only avoid the mesh plug, but also can improve product capacity and quality greatly.
Features
A. The mesh does not block and it cab self-cleaning.
B. Bouncing balls and blocking device do not need.
C. Long service working life.
D. Ultrasonic Vibrating Screen is suitable for screening 40-635 mesh size, especially above 300 mesh.
E. The Sieve size can improve 1-70% and the capacity can improve maximum up to 10 times.
F. Ultrasonic Rotary Vibrating Screen has high screening efficiency, solve screening problems effectively
Such as strong adsorption, easy reunion, high electrostatic, high density, light proportion etc.
Application
Ultrosonic Vibrating Screen
is widely used in metallurgy powder, electromagnetic materials, metal powder, iron powder, zinc oxide, alumina powder, alloy powder, molybdenum powder, cobalt powder, carborundum, copper, nickel powder, silica powder, titanium oxide, tungsten carbide, tungsten powder, titanium powder , stainless steel powder etc.
Technical Parameters
Ultrasonic Vibrating Screen Technical Parameters | |||
Frequency | 34KHz | Overall Dimension | 345mm*320mm*145mm |
Power | 220V~240V50/60HZ | IP Code | IP55 |
Working Mode | Continuous | Adjustment Range | 50~100% |
Temperature | 45°C | Transducer | Offset |

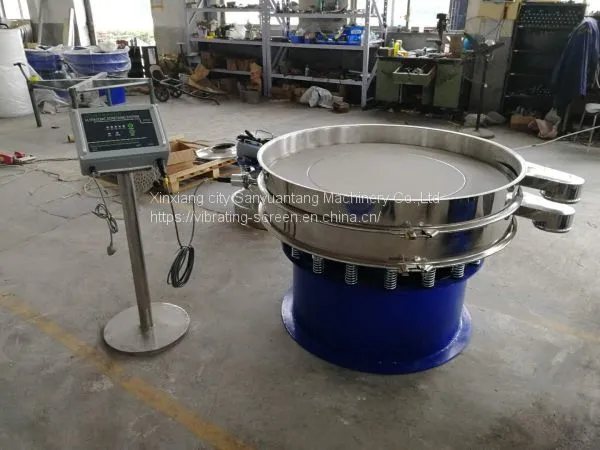

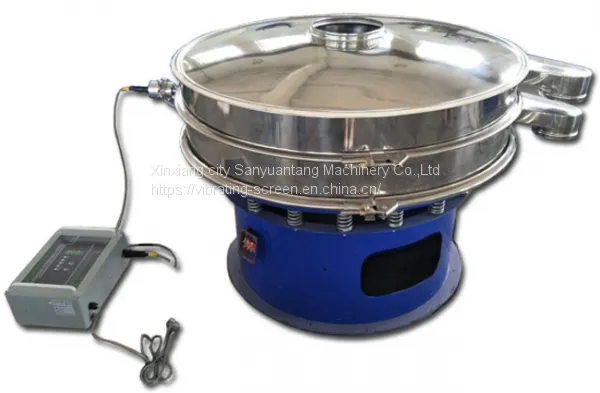

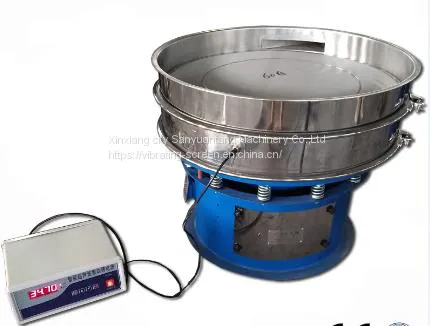

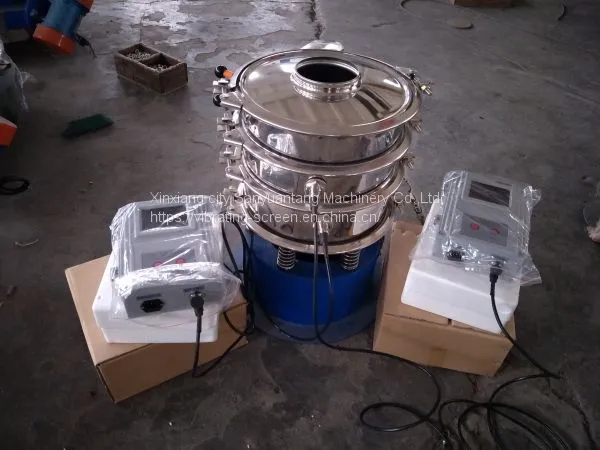

Product shows
Our Services
1-We provide 12months quality warranty to make sure your machine well runs consistently.
2-Professional engineer design the production line for you.
3-Recommend suitable equipment according to your special demand.
4-Common problem can /complex problem can be reacted immediately in 24 hours and solved as soon as possible.
Company Information
Xinxiang Sanyuantang Machine Co.,Ltd, ISO9001 certified enterprise.Our company is located in XINXIANG CITY HENAN PROVINCE CHINA, We are one of leading manufacturer who specialize
At present, the main range of products include kinds of series of Vibrating screen,Conveyor equipment,Honey processing machine,etc.
We have advanced manufacture equipment, abundant technology power, complete testing measures, strict management system and favorable corporation credit-standing.
Other Products
FAQ
In order to assist you choose a suitable model,please lindly figure out the following information:
1,What is the material you want to sieve? (Could you send us some pictures)
2,How about the features of your material?(Like moisture and bulk density)
Like: %- %; g/cm3
3,What's the mesh size (material/particle size) you need?
Answer: mesh( mm), mesh( mm)
4,How much the capacity (kg/h) you want?
Like: kg/h.
Contact me to get more details...
