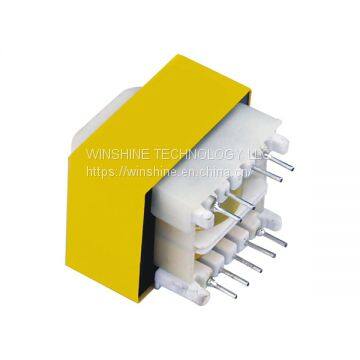

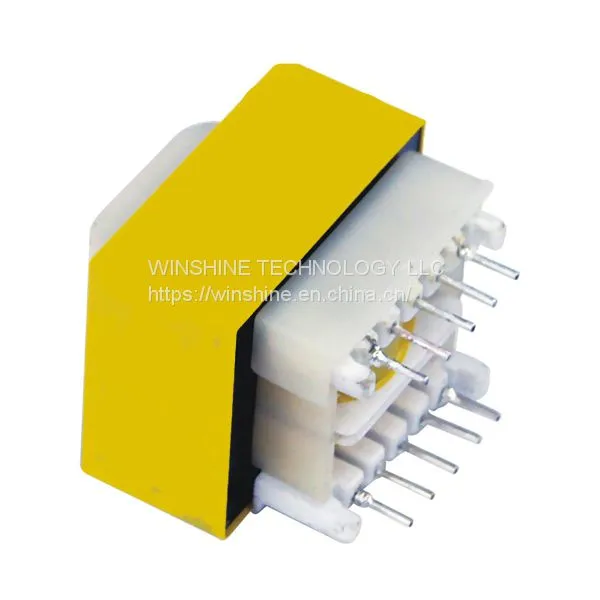

EI 41 Class 2 Pin Type Low Frequency Transformer

Electrical Performance:

Input voltage: 120V

Frequency: 60Hz

Output: AC3.0-24.0V, 1.65-10.0VA

Efficiency rate: >65%

Standby power: 0.50W max (if requested)

Environment Characteristics:

Operating temperature: -10℃ to 60℃

Storage temp: -10℃ to 80℃

Humidity: 5-95% non condensing

Dielectric strength (Vrms): P-S, 2500Vrms

Insulation class: Class A

External Data:

Size: leads type transformer, 43.0L*45.0W*37.0H (ref);

pins type transformer, 42.0L*34.0W*31.5H (ref)

Weight: 220g (ref)
