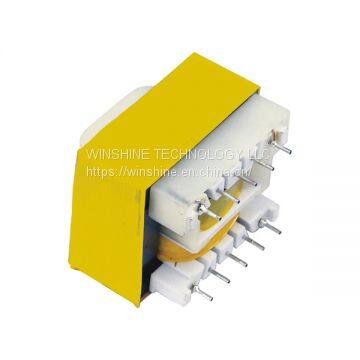

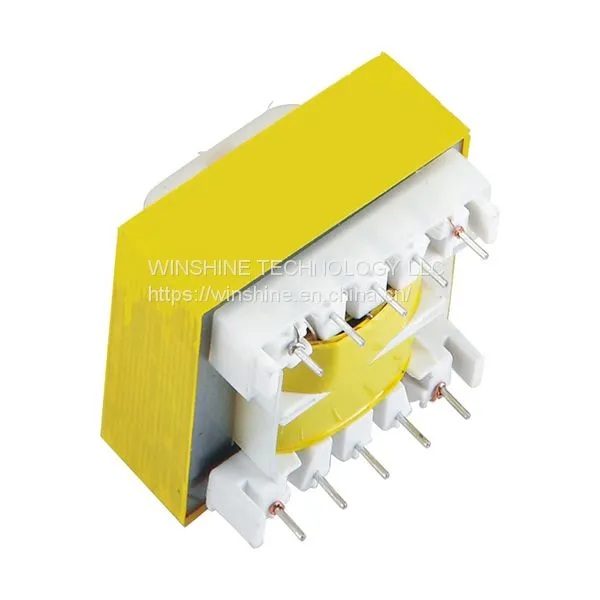

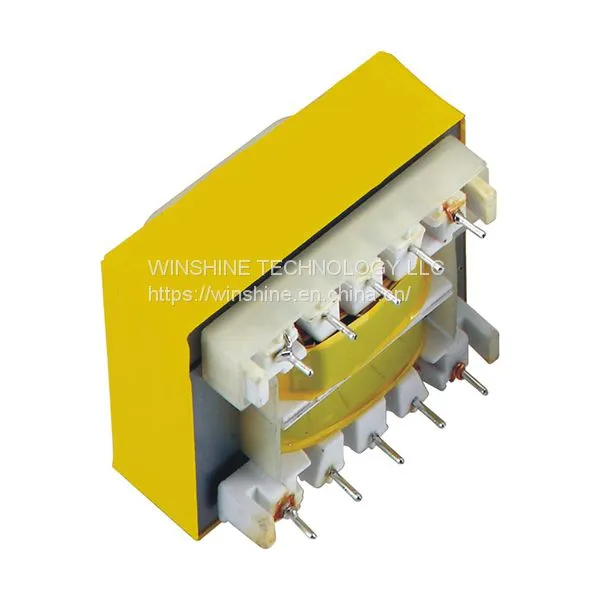

Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > EI 48 Class 2 Pin Transformer With UL Certification
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Usage:
Electronic
Phase:
Single
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
15 days
Related Products
-
EI 41 Class 2 Pin Type Low Frequency TransformerNegotiableMOQ: 100 Pieces -
EI 57 Class 2 Pin Transformer, Lead Wire TransformerNegotiableMOQ: 100 Pieces
-
50VA Single Phase Miniature TransformerNegotiableMOQ: 10 Pieces
-
3KVA UL Listed Micro TransformerNegotiableMOQ: 10 Pieces
-
120VAC to 24VDC Chassis Mount Voltage ConverterNegotiableMOQ: 10 Pieces
Place of Origin
China
Usage
Electronic
Phase
Single
Coil Number
Other
Coil Structure
Other, EI
Safety Approval: UL, CUL
Safety Standard: UL 5085 and CSA-C22.2 NO.66
Electrical Performance:
Input voltage: 120V
Frequency: 60Hz
Output: AC3.0-24.0V, 6.0-20.0VA
Efficiency rate: >75%
Standby power: 0.50W max (if requested)
Environment Characteristics:
Operating temperature: -10℃ to 40℃
Storage temp: -10℃ to 80℃
Humidity: 5-95% non condensing
Dielectric strength (Vrms): P-S, 2500Vrms
Insulation class: Class A
Dimensions
leads type transformer, 50.0L*50.0W*44.0H (ref);
pins type transformer, 49.0L*41.0W*35.0H (ref)
Weight: 470g (ref)
