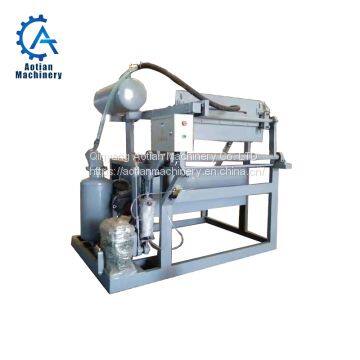

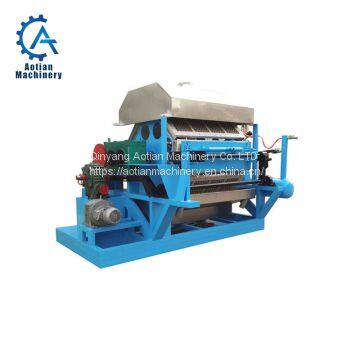

High precision servo motor drive,high efficiency and energy-saving drying line.
1,Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2,Use absolute encoder to achieve accurate correction.
3,The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4,The use of mechanical structure to ensure that the mold close on both sides evenly.
5,Large capacity; Water content is low;Save the cost of drying.

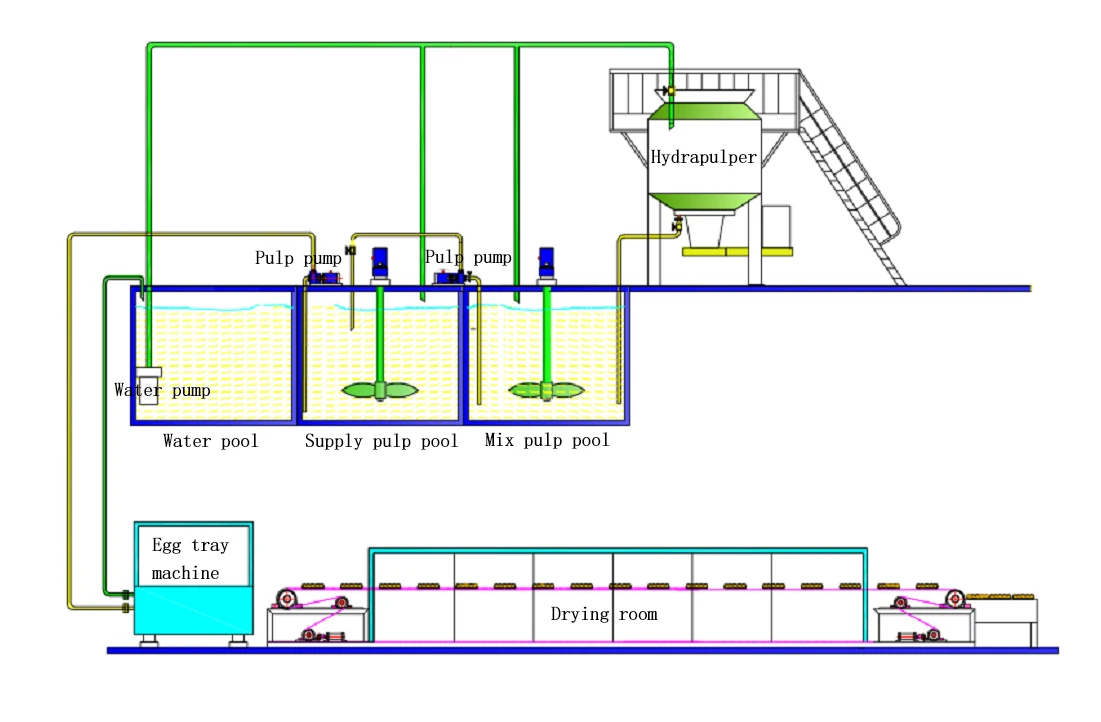

1.pulping system
pulp board and clean waste paper will be made into pulp with certain concentration through pupling screening, grinding and addition of chemical agents, including:pupler,grinder,pulp tank, water tank,pulp pump,water pump,agitator,consistency and control cabinet.

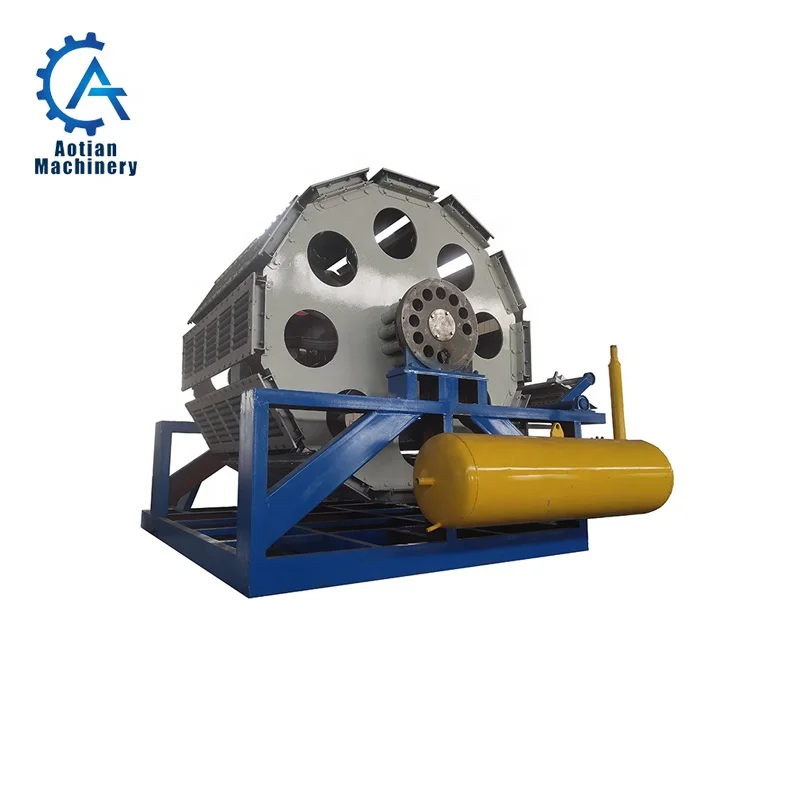

2.forming systemAttach pulp onto the specially-made forming mold evenly through vacuum effect to make it into wet blank and then deliver it to the drying system.
3. drying system
Use geating fuels,such as GAS,LPG,LNG,diesel ,steam and thermo oil to dry the formeg wet blanks.
4. automatic hot pressing systemautomatically deliver the dried products to the hot press and stack them up after hot pressing.
Machine Model | 3*1 | 3*1 | 3*4 | 4*4 | 4*8 | 5*8 | 5*12 | 6*12 |
Yield(p/h) | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 | 8000 |
Waste Paper(kg/h) | 120 | 160 | 200 | 280 | 320 | 400 | 480 | 640 |
Water(kg/h) | 300 | 380 | 450 | 560 | 650 | 750 | 900 | 1040 |
Electricity(kw/h) | 32 | 45 | 58 | 78 | 80 | 85 | 90 | 100 |
Workshop Area | 45 | 80 | 80 | 100 | 100 | 140 | 180 | 250 |
Drying Area | No need | 216 | 216 | 216 | 216 | 238 | 260 | 300 |

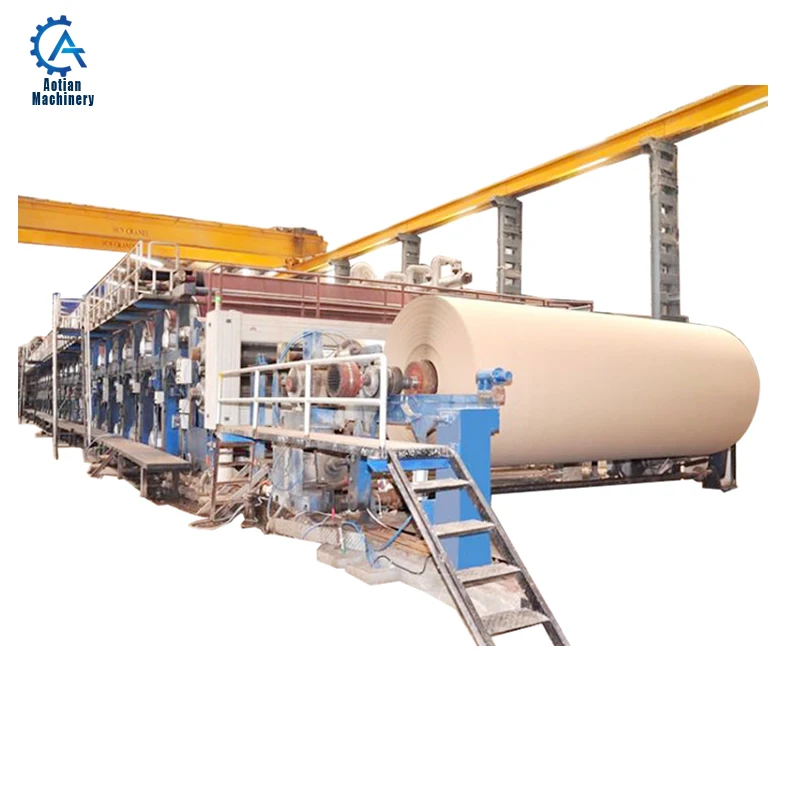

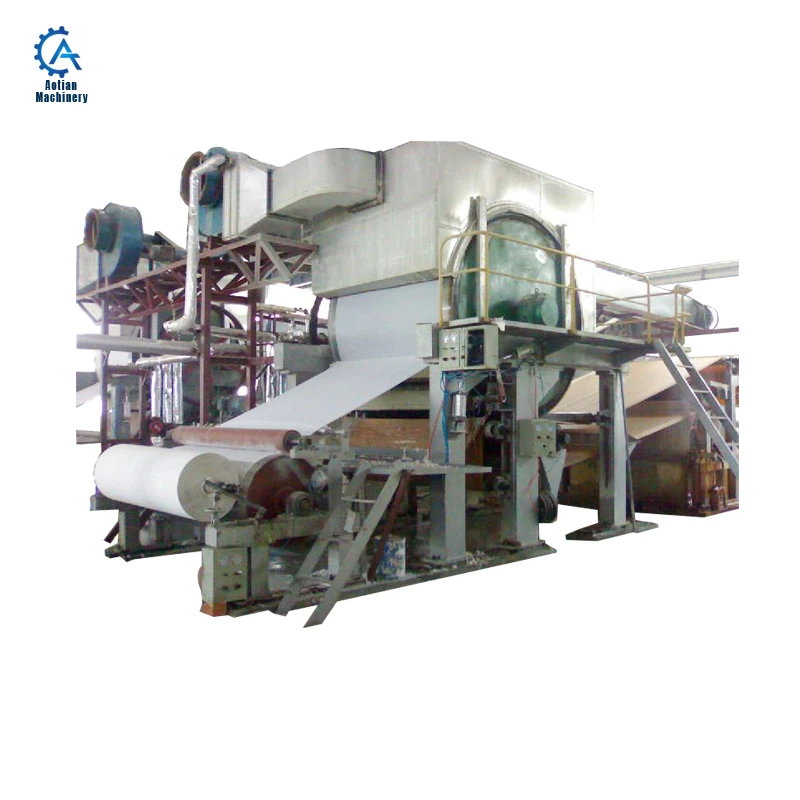

AOTIAN have sanitary paper machine, culture paper machine, craft kraft paper machine, corrugated paper machine, etc machinery. Please be assured that we are a professional papermaking factory.If you have any need of paper machine spare parts and all papermaking machinery please contact us. Thank you
1.Aotian Machinery Manufacturing Co., Ltd. was founded in 1985, it has a leading position in paper machinery of China.We have a professional production, research and development, sales team. Our main products are paper machine,pulping equipment and paper machine parts.And we have the product certificate,we will meet and exceed your expectations. Please contact our custom service for details .
2.Following is main introduction of our company :
(1). We are a manufacturer and we have import and export rights.
(2). We produce wonderful environmental protection machines and solutions, pulp and paper making machines and solutions as well as tissue paper converting machinery and solutions,

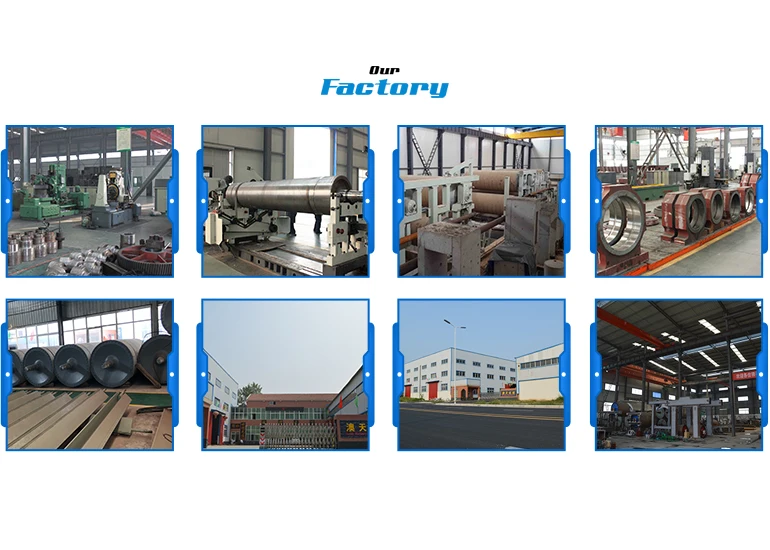

(3). Our main manufacturing facility which spans nearly 30,000m2.
(4). The following is the feedback from customers who bought products from our company.
We go to world famous exhibitions every year.
Constantly promote and publicize the company's brand, to the majority of customers to show the strength and image of the company.The high concentration of visitor flow, information flow and capital flow in the exhibition can help our company learn from each other and improve its competitiveness.
You are welcome to visit our factory!
We are pleased to invite your to visit our factory for business negotiation , we sincerely hope that the coming visit will make a deep impression on you about our factory. We shall make all necessary arrangement for your visit and, in the same times, our company will allow customers to enter the factory for a visit. We will also lead customers to see the production workshop to ensure that our products meet the requirements of customers.
We are looking forward to meeting you in the future!
Pre-Sales Service
1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
After-Sales Service
1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems;
7.Providing life-long maintenance service;
8.Providing technical exchanging.
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation.
The company has passed ISO9001:2000 international quality management system certification, self-supporting and export rights.
