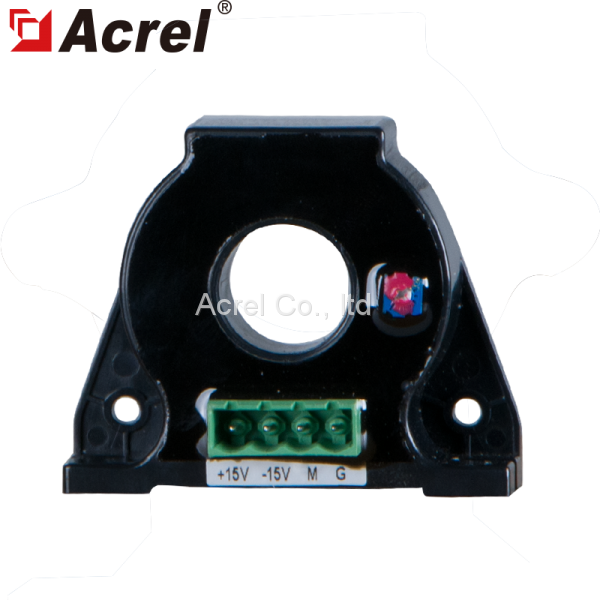

Acrel AHKC-LT Input 4/5V Current Transducer Hall Angle Sensor
- 1000 Piece / Pieces per Month
- Shanghai
- T/T L/C Other
- 7 days
You May Like
-
Acrel AHKC-EKCA Close Loop AC DC Hall Effect Current Transducer
-
Acrel AMC72L-AV3-C Three Phase Multi-Function Power Meter
-
Acrel AHKC-EKCA DC0~(500-1500)A Hall Effect Current Sensor
-
Acrel AHKC-LT AC/DC 0-800A Input 5V/4V Output Open Loop Hall Current Sensor
-
Acrel AHKC-E Close Open Loop Hall Effect Current Transducer 15v Power Supply
-
Acrel AHKC-K Split Core Hall Current Transducer With 5V Output
Product Details
| Brand Name | Acrel | Place of Origin | China | |
| Model Number | AHKC-LT | Usage | Other, Current Sensor | |
| Theory | Hall Sensor | Output | Analog Sensor |
Product Description
General
Hall current sensors are mainly used to isolate and convert Ac,DC,pulse and other complex signals .After signals are convertedaccording to the Hall Effect Theory,the can be directly acquired by AD,DSP,PLC, secondary instruments and other devices.Hall current sensors are widel applicable for acquisition and feedback control of current signals in the current monitoring,battery application,inverter,solar power management,direct current cabinet ,DC motor drive,electroplating,welding,frequency converter,UPS servo control systems.They feature the quick response ,wide range of measurement,high precision ,strong overload capcity,good linearity and excellent and anti-interference performace.
Technical Parameters
Model | Rated current | Output | Power supply | Measuring Aperture | Unit Price | Accuracy |
AHKC-EKA | 0~(20-500)A | 5V/4V | ±15V | ∮ 20mm | $11.20 | class 1 |
AHKC-EKAA | DC 0~(50-500)A | 4-20mA | 12/24V | ∮ 20mm | $11.20 | class 1 |
AHKC-EKDA | AC 0~(50-500)A | 4-20mA | 12/24V | ∮ 20mm | $12.60 | class 1 |
AHKC-EKB | 0~(200-1000)A | 5V/4V | ±15V | ∮ 40mm | $21.70 | class 1 |
AHKC-EKBA | DC0~(200-1000)A | 4-20mA | 12/24V | ∮ 40mm | $21.70 | class 1 |
AHKC-EKBDA | AC0~(200-1000)A | 4-20mA | 12/24V | ∮ 40mm | $23.10 | class 1 |
AHKC-EKC | 0~(500-1500)A | 5V/4V | ±15V | ∮ 55mm | $28 | class 1 |
AHKC-EKCA | DC0~(500-1500)A | 4-20mA | 12/24V | ∮ 55mm | $28 | class 1 |
AHKC-EKCDA | AC0~(500-1500)A | 4-20mA | 12/24V | ∮ 55mm | $28 | class 1 |
AHKC-K | 0~(400-2000)A | 5V/4V | ±15V | 64*16mm | $26.60 | class 1 |
AHKC-KAA | DC0~ (400-2000)A | 4-20mA | 12/24V | 64*16mm | $26.60 | class 1 |
AHKC-KDA | AC 0~(400-2000)A | 4-20mA | 12/24V | 64*16mm | $37.10 | class 1 |
AHKC-H | 0~(500-3000)A | 5V/4V | ±15V | 82*32mm | $38.50 | class 1 |
AHKC-KA | 0~(500-5000)A | 5V/4V | ±15V | 104*36mm | $91 | class 1 |
Acrel Co., Ltd. [Stock Code: 300286.SZ] is one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users.
Since June 2003, we has always been focused on the research, production and sales of intelligent electric meters. We concentrates on providing products and services to help customers improve electricity efficiency and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4kV substation automation system, building mounted photovoltaic (BMPV) system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.
