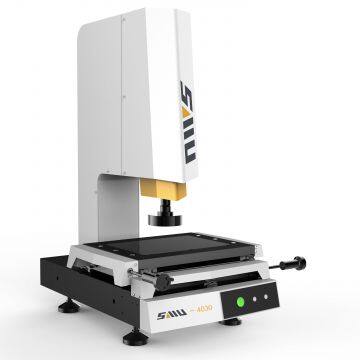

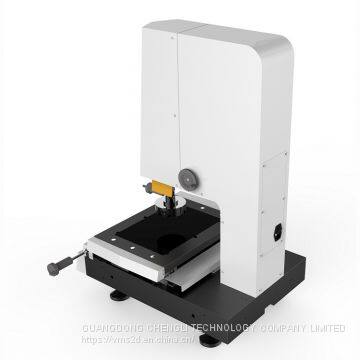

SMU-322EM Manual type video measuring machine
Features:
* Independently development of manual measurement software, high-resolution imported camera
* The user can know whether the light is saturated by using the auxiliary light path adjustment function of the software.
* The foot switch and software can facilitate the operation of the machine
* The laser indicator can be quickly positioned when functioning
* Optional MCP probe for customers to choose
Application:
Mechanical, electronic, instrument, plastic and other fields have been widely used, E-Series video measurement system is used for two-dimensional measurement
Specifications:
Model | SMU-2010EM | SMU-3020EM | SMU-4030EM | SMU-5040EM | |||||||
Worktable | Marble top size (mm) | 360*260 | 460*360 | 560*460 | 660*560 | ||||||
Glass Worktable size (mm) | 250*150 | 350*250 | 450*350 | 550*450 | |||||||
X/Y Travel (mm) | 200*100 | 300*200 | 400*300 | 500*400 | |||||||
Bearing capacity of glass worktable(KG) | 25KG | ||||||||||
XY Base | Grade 00 Ji’Nan Green Marble | ||||||||||
Weight(KG) | 100KG | 150KG | 200KG | 280KG | |||||||
Outline size(L*W*H)mm | 540*560*850 | 760*600*900 | 970*670*940 | 1050*750*1000 | |||||||
X,Y,Z Resolution(mm) | 0.001 | ||||||||||
Accuracy(μm) | ≤3+L/200 | ||||||||||
Z axis Travel (mm) | Effective stroke: 200mm, working distance: 90mm (Can be customized made to 400mm) | ||||||||||
Transmission system | High precision transmission guide rail, precision polished rod | ||||||||||
Power Supply：AC220V/50HZ AC110V/60HZ | |||||||||||
Video system | Camera: 1 / 3 "HD color industrial camera Zoom lens magnification: 0.7X-4.5X | ||||||||||
Image magnification: 20X-128X | |||||||||||
(optional 0.5X objective / 2X objective) | |||||||||||
Zoom lens | 0.7X～4.5X | 0.7X～4.5X | Working distance (mm) | ||||||||
Additional lens | Magnification | Object view(mm) | Magnification | Object view(mm) | |||||||
0.5X(optional) | 10X～64X | 22～3.4 | 5X～32X | 44～6.8 | 175 | ||||||
1X(standard) | 20X～128X | 11～1.7 | 10X～64X | 22～3.4 | 92 | ||||||
2x(optional) | 40X～256X | 5.5～0.9 | 20X～128X | 11～1.7 | 36 | ||||||
Industrial computer (standard configuration) | Optional on-axis light,foot switch,prober | ||||||||||
Note: the above parameters are standard configuration. For non-standard configuration, please consult the customer service team
Note: the object view is equal to the length of the diagonal
