Product Details
Brand Name: | SMU | Place of Origin: | China | Model Number: | SMU-3020EA |
Product Description
SMU-3020EA CNC Video Measuring Machine (E Series)
Features:
* Independently research and development of full-automatic measurement software, automatic focusing, automatic edge detection, powerful programming and automatic measurement functions, easy to operate
* The machine can be operated by levers or by software programming
* Program controlled data processing is helpful for large-scale workpiece measurement
* The servo motor is controlled on the X, y and Z axes, with fast positioning speed, high accuracy and stable movement
* Independently embedded module control system integrates the advanced control system into the instrument to ensure a more stable operation
* 3 ring cold light source is suitable for the measurement of precision workpieces. The laser indicator can quickly locate the position of workpieces
* Optional auto zoom lens, laser shifter, MCP probe for customers to choose
Application:
Widely used in mechanical, electronic, instrument, plastic and other fields of CNC video measurement system, especially in non-contact measurement, rapid batch measurement, precision workpiece measurement and other fields
Specifications:
Model | SMU-322EA | SMU-432EA | SMU-542EA | |||||||||
Worktable | Marble top size (mm) | 460*360 | 560*460 | 660*560 | ||||||||
Glass Worktable size (mm) | 350*250 | 450*350 | 550*450 | |||||||||
X/Y Travel (mm) | 300*200 | 400*300 | 500*400 | |||||||||
Bearing capacity of glass worktable(KG) | 25KG | |||||||||||
XY Base | Grade 00 Ji’Nan Green Marble | |||||||||||
Weight(KG) | 150KG | 200KG | 240KG | |||||||||
Outline size(L*W*H)mm | 850*1500*1600 | 950*1600*1600 | 1050*1700*1700 | |||||||||
X,Y,Z Resolution(mm) | 0.001(optional: 0.0005) | |||||||||||
Accuracy(μm) | ≤3+L/200 | |||||||||||
Z axis Travel (mm) | Effective stroke: 200mm, working distance: 90mm (Can be customized made to 400mm) | |||||||||||

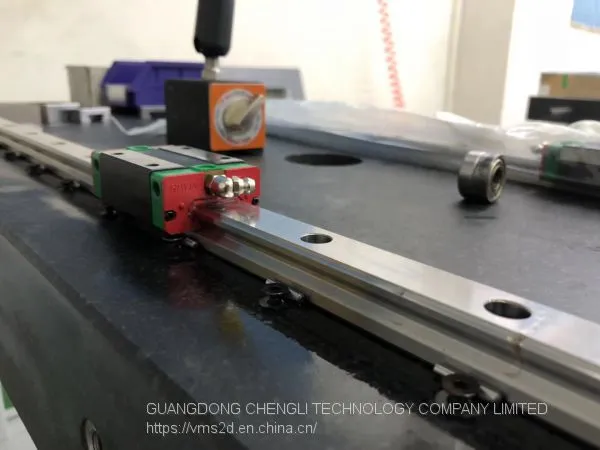

Transmission system | High precision transmission guide rail, precision polished rod, imported bearing | |||||||||||
Driving motor | High performance CNC servo system | |||||||||||
Power Supply:AC220V/50HZ AC110V/60HZ | ||||||||||||
Video system | Camera: Gigabit Ethernet digital camera Zoom lens magnification (standard configuration): 0.7X-4.5X (optional 12:1 zoom lens magnification: 0.6X-7.2X) | |||||||||||
Image magnification: 20X-128X | ||||||||||||
(optional 0.5X objective / 2X objective) | ||||||||||||
Zoom lens | 0.7X~4.5X | 0.7X~4.5X | Working distance (mm) | |||||||||
Additional lens | Magnification | Object view (mm) | Magnification | Object view (mm) | ||||||||
0.5X(optional) | 10X~64X | 22~3.4 | 175 | 44~6.8 | 175 | |||||||
1X(standard) | 20X~128X | 11~1.7 | 92 | 22~3.4 | 92 | |||||||
2x(optional) | 40X~256X | 5.5~0.9 | 36 | 11~1.7 | 36 | |||||||
Industrial computer (standard configuration) | Optional on-axis light,joystick,probe,laser shifter |
Note: the above parameters are standard configuration. For non-standard configuration, please consult the customer service team
Note: the object view is equal to the length of the diagonal
