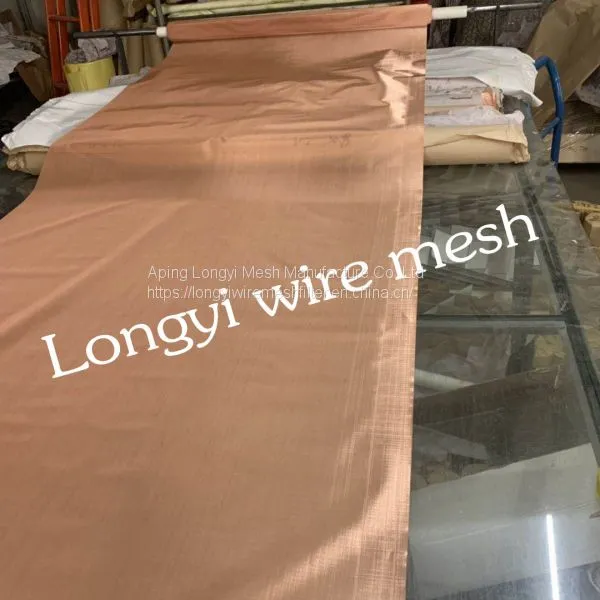

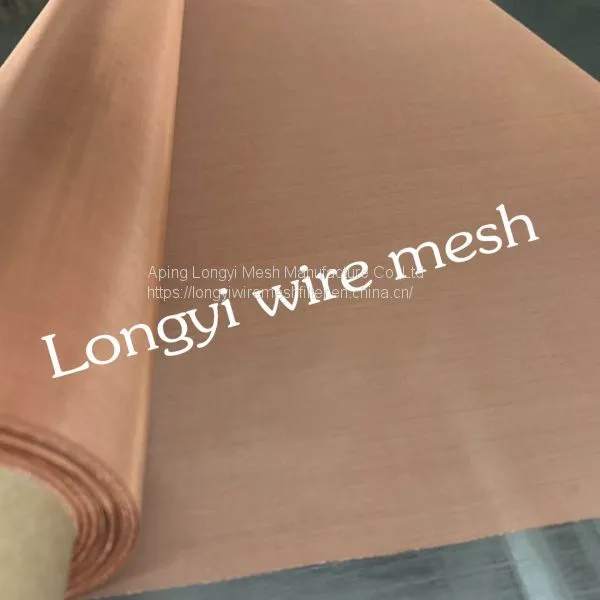

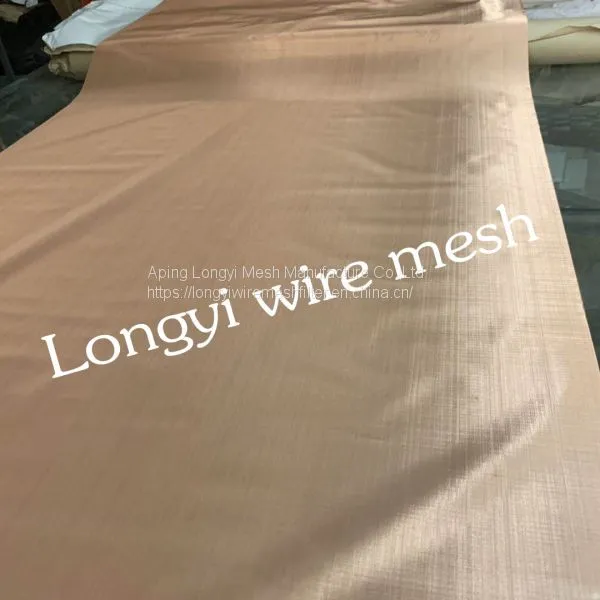

farady cage shielding pure 99.99% copper wire mesh
1. Material type: copper wire,brass wire
2. Wire diameter: 0.05-1mm
commonly plain weave or twill weave
3. Mesh counts: 1-200 mesh
Width: 3-4000mm, Length:30m,30.5m,etc
4. Surface can be tin plated or silver plated
Thickness of tin plated: 3-50 micron
6. Technique: plain weave, crimped woven, width and length can be customized.
7. Special specifications, special size/shape can be customized
8.Common shielding mesh: 20 mesh, 22 mesh, 40mesh, 60mesh,80mesh, 100 mesh, 200 mesh
Copper wire mesh performance indicators:
Magnetic field: 450 KHZ or 55 db
The plane wave: 50 MHZ 85 db or higher
Microwave: 1 GHZ 65 db or higher
# copper wire mesh Features
1. non-magnetic,
2.wear-resistant,
3.acid and alkali resistent
4. good ductility ,
5.good sound insulation ,
6. filtration electron beam
.
#copper wire mesh Uses
1.EMI/RMF shielding mesh screen
2.Printing mesh for Electonic Industry
3. Art printing mesh for chinaware printing , glass, etc
4. Filter liquid, gas, chemical etc.
5. LED display
More info, please contact us freely.
