Home > Electrical & Electronics > Cable Parts > Cable Conduit > 2 INCH LOW FIRE ZERO HALOGEN FLEXIBLE METAL CONDUIT

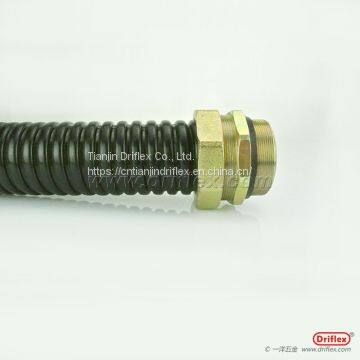

2 INCH LOW FIRE ZERO HALOGEN FLEXIBLE METAL CONDUIT
US$ 4.03 - 4.19
MOQ: 200 Meters
Key Specifications
Get Latest Price
Brand Name:
Driflex
Place of Origin:
China
Model Number:
LFH-16S
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
5 days
Related Products
-
3/8 Inch Explosive Proof Flexible Conduit Stainless Steel BraidedUS$ 2.98 - 3.10MOQ: 100 Meters -
1/2 Inch Explosive Proof Flexible Conduit Stainless Steel BraidedUS$ 3.58 - 3.70MOQ: 100 Meters
-
3/4 Inch Explosive Proof Flexible Conduit Stainless Steel BraidedUS$ 4.69 - 4.78MOQ: 100 Meters
-
1 Inch Explosive Proof Flexible Conduit Stainless Steel BraidedUS$ 5.69 - 5.85MOQ: 100 Meters
-
1 1/4 Inch Explosive Proof Flexible Conduit Stainless Steel BraidedUS$ 7.98 - 8.12MOQ: 100 Meters
Brand Name
Driflex
Place of Origin
China
Model Number
LFH-16S
Material
Steel
Type
Flexible
Features:
Galvanized steel core, Plastic jacketed.
Light weight style, excellant flexibility and low fire hazard low smoke.
Use for the place with poor ventilation or the environment needs more secure care or any narrow space for electrical wiring application.
Temperature range from -10oC to +90oC
Applications:
General indutrial installations and wire protection
Outdoor installation
Machine tools
Specifications:
| Part No | Nominal Size ISO (mm) |
Nominal Size US (inches) |
I.D. (mm) | O.D. (mm) | Min. Bend Radius (mm) |
Length (M/coil) |
|---|---|---|---|---|---|---|
| LFH-10 | 16 | 3/8" | 12.3 - 12.6 | 16.5 - 16.8 | 60 | 50 |
| LFH-11 | 20 | 1/2" | 15.7 - 16.0 | 20.5 - 20.8 | 85 | 50 |
| LFH-12 | 25 | 3/4" | 19.7 - 20.0 | 25.3 - 25.6 | 100 | 50 |
| LFH-13 | 32 | 1" | 25.3 - 25.8 | 30.7 - 31.2 | 120 | 50 |
| LFH-14 | 40 | 1-1/4" | 32.3 - 32.8 | 38.5- 39.0 | 150 | 25 |
| LFH-15 | 50 | 1-1/2" | 38.30 - 38.8 | 45.7 - 46.2 | 180 | 25 |
| LFH-16 | 63 | 2" | 50.0 - 50.5 | 58.8 - 59.3 | 220 | 20 |
| LFH-17 | 75 | 2-1/2" | 62.5 - 63.2 | 73.5 - 74.0 | 310 | 10 |
| LFH-18 | 90 | 3" | 73.0 - 73.7 | 84.5 - 85.2 | 350 | 10 |
| LFH-19 | 100 | 4" | 97.50 - 98.5 | 109.5 - 110.5 | 410 | 5 |
