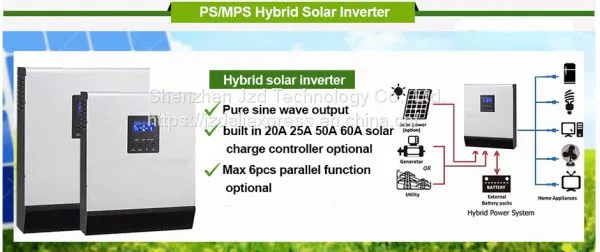

1KVA 3KVA 5KVA 10KVA 20KVA 30KVA 48V Solar Hybrid Inverter 48Vdc to 230Vac Built-in MPPT Solar Charge Ontroller
US$ 10 - 5000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Jesudom
Place of Origin:
China
Model Number:
MPS
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
PV Smart Micro Inverter 200W 250W 300W 350W 400W 450W 500W 600W 700W 1000W 1200W 1400W MPPT Grid Connected With 2.4G Monitoring CollectorUS$ 10 - 200MOQ: 1 Unit -
3000Pairs Male and Female Solar Connector for Solar Panel 30A 1000V for PV Cable 2.5/4/6mmUS$ 10 - 200MOQ: 1 Pair
-
24V to 110V Pure Sine Wave Hybrid Inverter 4kW for Off-Grid Solar SystemsUS$ 500MOQ: 1 Unit
-
2014 Hot Sale Wind Solar Hybrid Inverters SP-T-13KWUS$ 0.01 - 1,000MOQ: 1 Unit
-
4KW Parallelable Solar Hybrid InverterNegotiableMOQ: 5 Pieces
Brand Name
Jesudom
Place of Origin
China
Model Number
MPS
Type
DC/AC Inverters
Size
128 x 272 x 355
Weight
13.5
Output Power
1 - 200KW
Output Type
Single
Output Current
80A
Output Frequency
50hz/60hz
Output Voltage
48Vdc
Input Voltage
230 VAC
Product Main Features
5000VA Pure Sine Wave Output With Up to 2X Surge Max 5 Seconds
Built-in 60A/80A MPPT Solar Charger, Max. Solar Power 3000W(60A)/4000W(80A)
Built-in 3-Stage High Efficiency 60A Battery Charger
Total System Max Charging: 120A (60A Solar + 60A Utility)
Generator Starter Dry Contact
Free Monitoring Software
Adjustable AC Input Voltage 90~280VAC
Supports 50Hz or 60Hz via LCD Program
Configurable AC/Solar Charger priority via LCD setting
Works with 48Vdc Battery System Only
Works With 220~240Vac Load Only
Transformerless, light weight design
RS232 Comm port
Transfer time
24 hour operation
Intelligent battery charging control
Built-in alarms and protections:overload/over temperature/short circuit protection
Suitable for wall mount
CE, EMC certifie
PAYMENT/SHIPPING
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are Buyer’s responsibility.
Please check with your country customs office to determine what these additional costs will be prior to bidding/buying.
For custom clearance procedure. If you need help, please let us know.
Remote area addition fee （FedEx & DHL）
A Remote Area is defined as a post code or in the absence of post code, a suburb /town name that is difficult to serve. A delivery to one of the following post codes and towns would attract a Remote Area surcharge.
For Import Express shipments, a pickup from one of the same post codes and towns would attract a Remote Area surcharge. Please refer to your service guide for the surcharge amount in local currency
WARRANTY/QUALITY:
CE certified.
100% QC before shipment.
Standard 1 year product warranty
Warranty will cover only items that are deemed to fail under normal usage. Accidental damage due to environmental causes or incorrect usage and installation will not be covered in warranty (but still serviceable)
Contact us directly for warranty issues
Buyer is responsible for warranty return shipping.
